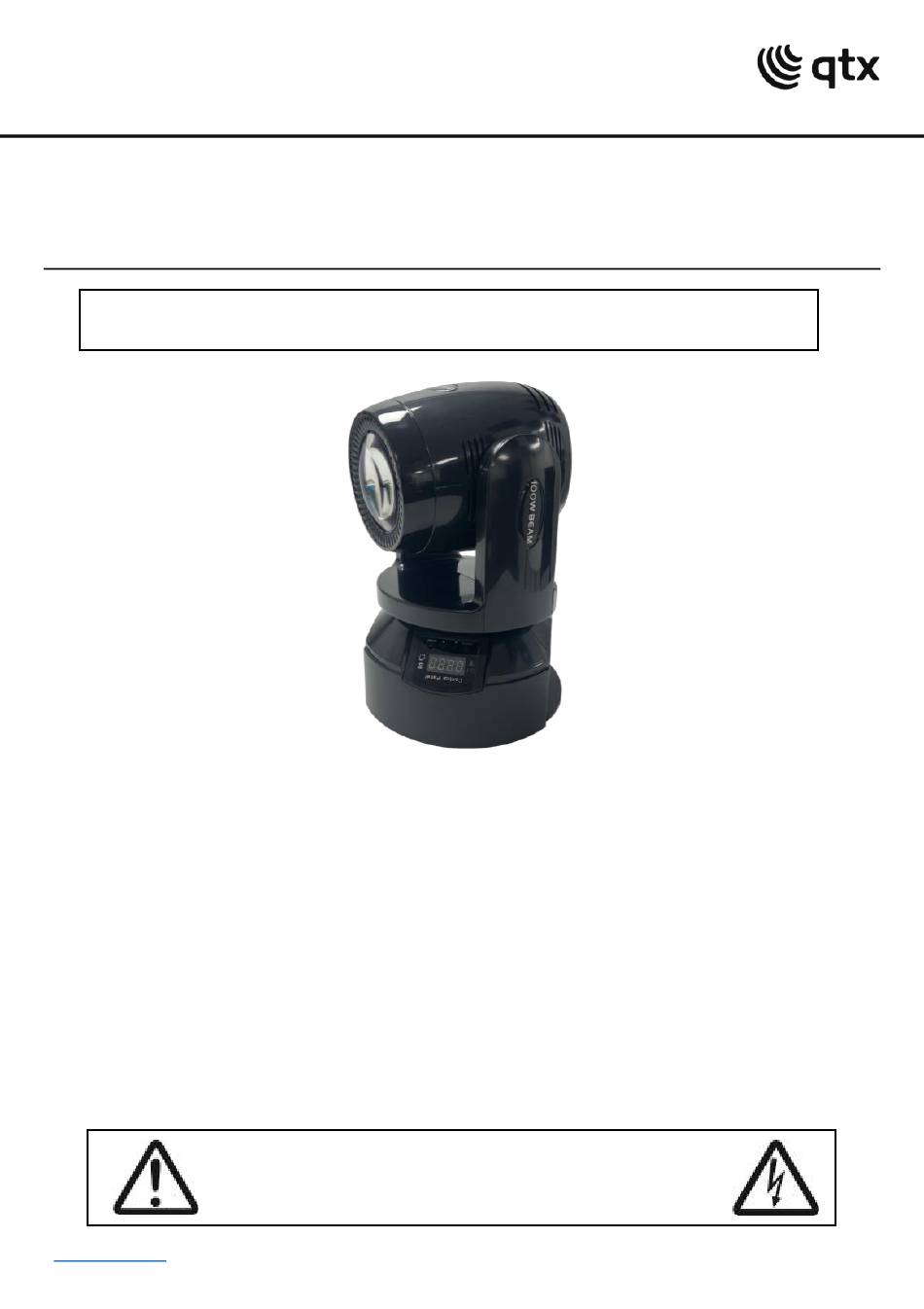

GOBO Beam
Item ref: 150.463UK
User Manual
100W LED Moving Head
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.

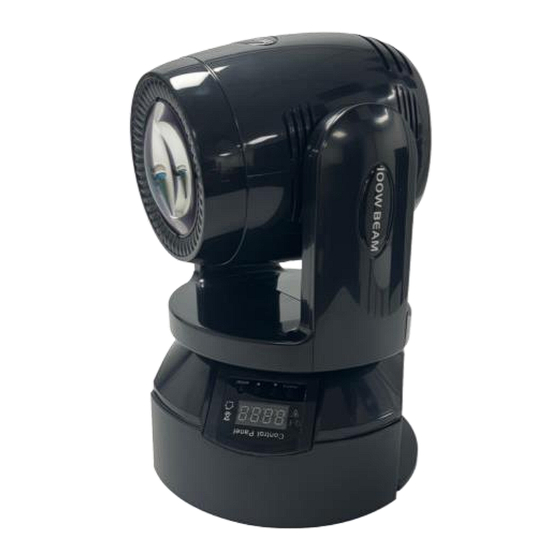

Feature packed moving head that combines a bright 100W LED with 7 GOBOs, 7 colour wheels and a
prism for the very best in effects and colour mixing. Featuring auto or sound-to-light modes, this 9 or 13
channel DMX light effect can be free standing or mounted to trussing using the supplied brackets. Ideal
for stages, bars, nightclubs and mobile DJs the QTX GOBO Beam provides an array of colourful effects
perfect for brightening up any occasion.
In the box:
Your GOBO Beam should arrive with you in a single carton in good condition. The carton should contain
1 x main unit with brackets, 1 x UK IEC mains lead and 1 x manual.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
www.avsl.com
150.463UK User Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Qtx GOBO Beam
Summary of Contents for Qtx GOBO Beam
- Page 1 In the box: Your GOBO Beam should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with brackets, 1 x UK IEC mains lead and 1 x manual.
- Page 2 Placement: • Use the included mounting brackets to fix to a stand or lighting truss. • Use secondary safety fixings if mounting overhead. • Keep away from damp or dusty environments. • Ensure adequate airflow around the fixture housings. • Ensure adequate access to controls and connections.
-
Page 3: Menu Function
DMX mode: Your GOBO Beam can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. - Page 4 9/13 Channel DMX Table: 13CH Function Value Description Dimming 0-255 Total dimming 0-10 No strobe Strobe 11-255 Strobe from slow to fast 0-255 Pan fine 0-255 Pan fine Tilt 0-255 Tilt Tilt fine 0-255 Tilt fine Pan/Tilt speed 0-255 Speed from slow to fast White 10-19 Colour 1...
-
Page 5: Specifications
60-89 Auto 2 90-119 Auto 3 120-149 Auto 4 150-179 Sound 1 180-209 Sound 2 210-239 Sound 3 240-255 Sound 4 Auto speed 0-255 Speed from slow to fast 0-249 No effect Reset 250-255 Reset after 3 seconds Specifications: Power supply 110-240Vac, 50/60Hz (IEC) Power consumption 100W... - Page 6 This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines. Errors and omissions excepted. Copyright©...
