GOBO Hex
Item ref: 151.745UK
User Manual
6-in-1 LED and Laser Effect light
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.

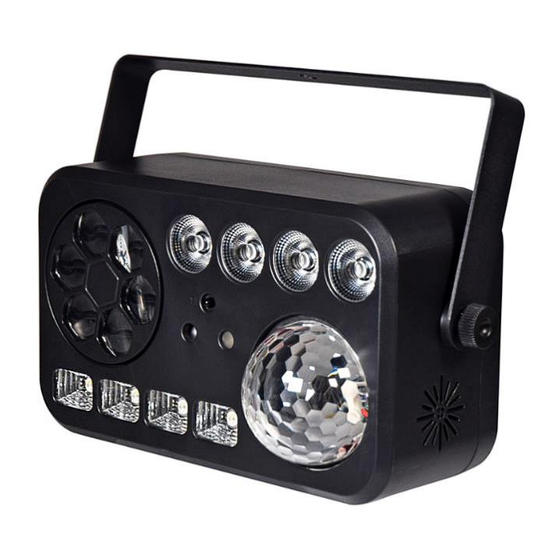

A lightweight 6-in-1 light effect combining a range of colourful GOBOs, 10W RGBW magic ball, 4x White
Strobe/UV LEDs, 4x 4W RGBW PARs and Dual colour Laser in one convenient fixture. Easy to setup and
use via an array of integrated automatic programs or sound to light. More precise control is provided via
either 16-channel DMX connection or the included IR remote control.
In the box:
Your GOBO Hex should arrive with you in a single carton in good condition. The carton should contain
1 x main unit with bracket, 1 x UK IEC mains lead and 1 x manual.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
www.avsl.com
151.745UK User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the GOBO Hex and is the answer not in the manual?

Questions and answers

Related Manuals for Qtx GOBO Hex

Summary of Contents for Qtx GOBO Hex

  • Page 1 16-channel DMX connection or the included IR remote control. In the box: Your GOBO Hex should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket, 1 x UK IEC mains lead and 1 x manual.

  • Page 2: Rear Panel Controls

    Caution: Laser radiation Avoid pointing directly towards eyes. Laser output can cause injury if viewed directly. This product is a Class 3B laser and should only be installed and used by persons who are trained in the management of laser radiation and are able to operate in accordance within the guidance given by the Health and Safety Executive (HSE) in “The Safety of Laser Lighting Displays”.

  • Page 3: Manual Control Menu

    Manual control menu: Press the “MENU” button to enter the settings menu. Press “UP” and “DOWN” buttons to navigate through various setting functions. Press “ENTER” button to confirm the desired setting. Menu level 1 Menu level 2 Description Addr A001 - A512 DMX address settings Auto Au1 - Au2...

  • Page 4: Dmx Mode

    DMX mode: The GOBO Hex can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit.
  • Page 5 Laser class Remote battery 2x AAA (not supplied) Dimensions 135 x 155 x 260mm Weight 1.3Kg Troubleshooting: Check mains voltage is correct and outlet is switched on No power (mains) Check IEC lead and fuse (if fuse continually blows, refer to your dealer) Check control panel mode settings No light output Check DMX settings from controller (dimmer levels, blackout etc.)
