Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

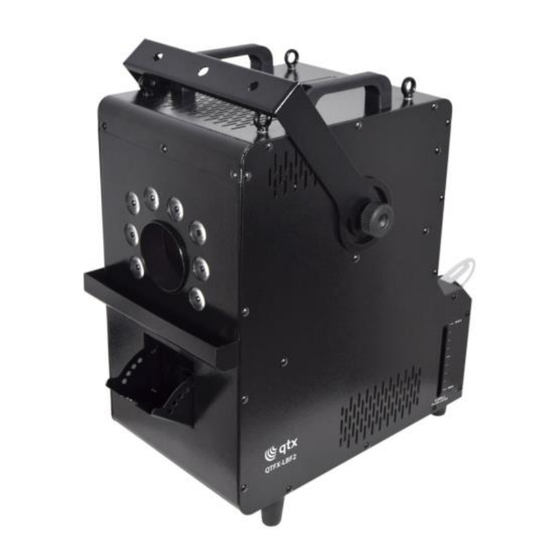

A high-quality machine that combines a stream of bubbles with a powerful 800W fogger to
produce a stunning smoke-filled bubble effect. The 8 bright LEDs on the front of the unit can
be used to highlight the torrent of bubbles, producing an exciting and colourful effect that's
ideal for parties and events. The unit itself is made from hardwearing steel, which is covered
in a glossy hammered finish making it easy to keep clean. It comes complete with a fully
functional control panel and smaller RF remote for simple wire-free operation and is DMX
compatible for more precise control or connecting to a 2nd unit when needed.
•
800W Fogger produces up to 3000 Cu.Ft/min
•
Wand-free high output bubble machine
•
8 Bright 8W RGB+UV LED's housed in the front panel
•
In-built control panel with LCD display
•
433Mhz keyfob-style RF wireless remote
•
10 Channel DMX compatible for more precise control
•
1.2 Litre removeable fluid tanks for bubble and fog fluids
•
Rugged steel design and hammered paint, wipe-clean finish
www.avsl.com
LED BUBBLE FOG MACHINE 800W
QTFX-LBF2
Order ref: 160.556UK
User Manual
160.556UK Manual
Advertisement
Related Manuals for Qtx QTFX-LBF2
Summary of Contents for Qtx QTFX-LBF2
- Page 1 QTFX-LBF2 LED BUBBLE FOG MACHINE 800W Order ref: 160.556UK User Manual Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty A high-quality machine that combines a stream of bubbles with a powerful 800W fogger to produce a stunning smoke-filled bubble effect.
- Page 2 It is also recommended to use fog machine cleaning fluid (160.670UK) periodically. Recommended Fluids: The QTFX-LBF2 requires both fog fluid in the fluid tank and bubble fluid in the reservoir. For the efficient use of this unit we recommend the following QTX fluids:...
- Page 3 Control Panels: Setting Up: Unpack the QTFX-LBF2 unit. Unscrew the top caps of the fluid tanks and remove to fill with the recommended fog and bubble fluids. NOTE: Please ensure you fill the correct tanks with the correct fluid to avoid causing...
- Page 4 The menu options displayed on the control panel are as follows: Function Selection Content Heating status Unit warming up please wait ---- Unit is ready to use Bubble control Bubble flow on Bubble flow off DMX512 A001-512 Set DMX address Smoke volume P1-100 Set fog output volume (low to high)
-
Page 5: Specifications
Operation: DMX Control For DMX control, connect a signal source to the DMX input on the unit via a balanced XLR lead. Extra units can also be controlled with the same DMX signal by looping through the DMX out on the unit. Set the unit to DMX512 mode and confirm the correct start address, then use the table below for channel selection. -
Page 6: Troubleshooting
Troubleshooting: No power to main unit Check mains voltage is correct and socket is switched on Check IEC lead is OK and connected properly Check mains fuse in IEC connector and fuse in plug top If fuse blowing repeatedly, refer to qualified service personnel Power to unit but no Check fluid level in tanks haze/bubble output in...
