EVAL-LT7170-1-AZ
Evaluation Board User Guide
LTpowerPlay Quick Start Procedure
The following procedure describes how to use LTpowerPlay to monitor and change the settings of LT7170-1.
1. Download and install the LTPowerPlay GUI: LTpowerPlay | Analog Devices.
2. Launch the LTpowerPlay GUI.

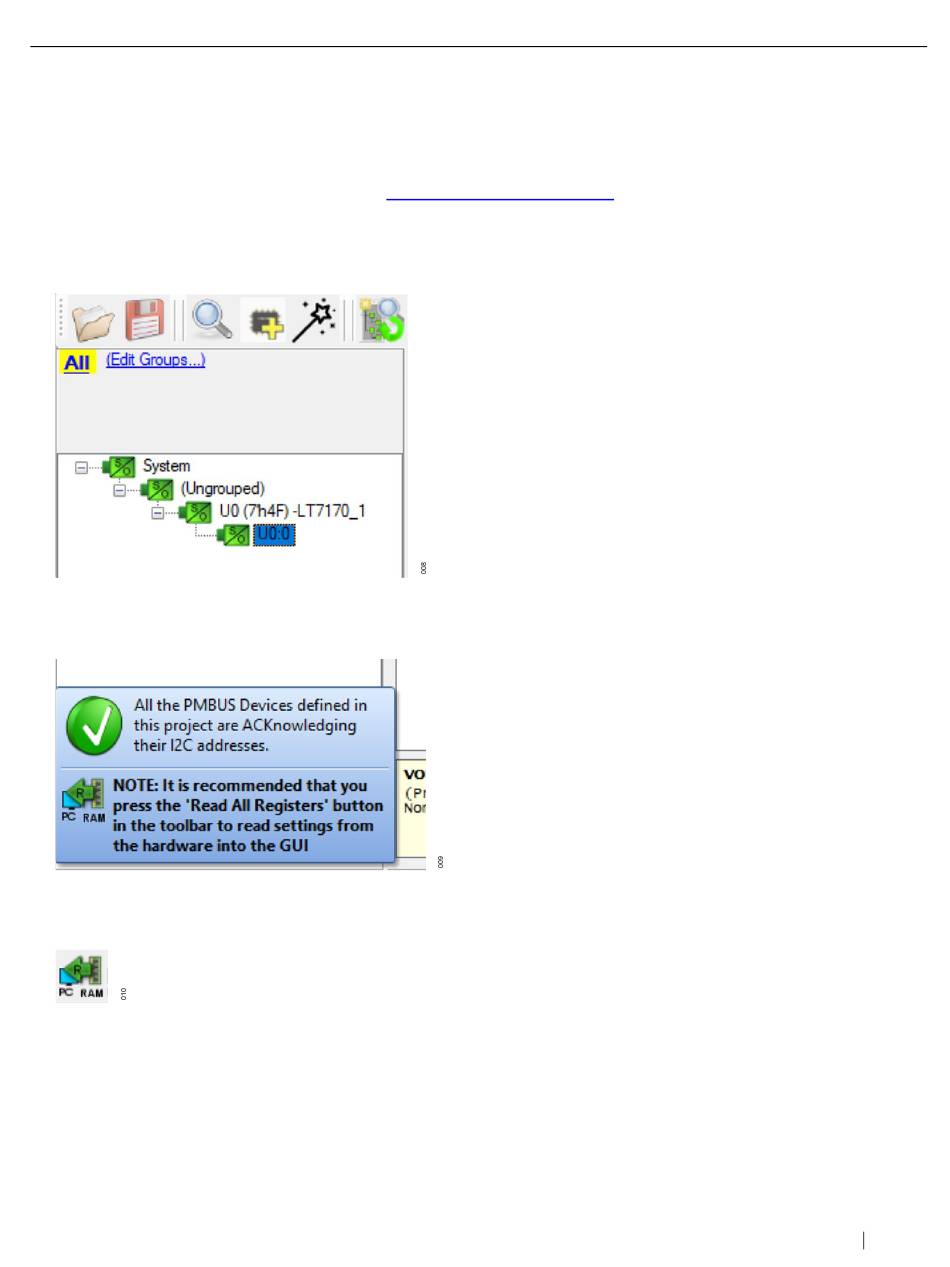

3. The GUI should automatically identify the EVAL-LT7170-1-AZ. The system tree on the left-hand side should look like
the image below.
4. A green message box shows for a few seconds in the lower left-hand corner, confirming that LT7170-1 is
communicating:
5. In the toolbar, click the R (RAM to PC) icon to read the RAM from the LT7170-1. This reads the configuration from the
RAM of the LT7170-1 and loads it into the GUI.
