USER MANUAL: ALX-ELITE
READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT
Connecting Devices (continued)
1. Mount and connect Devices in a daisy-chain fashion using the orange M12 cables. They can be installed in
any order. (NOTE: If purchased as a -KIT, the Devices will be supplied pre-mounted and connected)
2. Hand tighten M12 cable connections, then tighten two more clicks using wrenches.
3. Plumb compressed air lines and fluid lines for pumps and valves as necessary [see below]

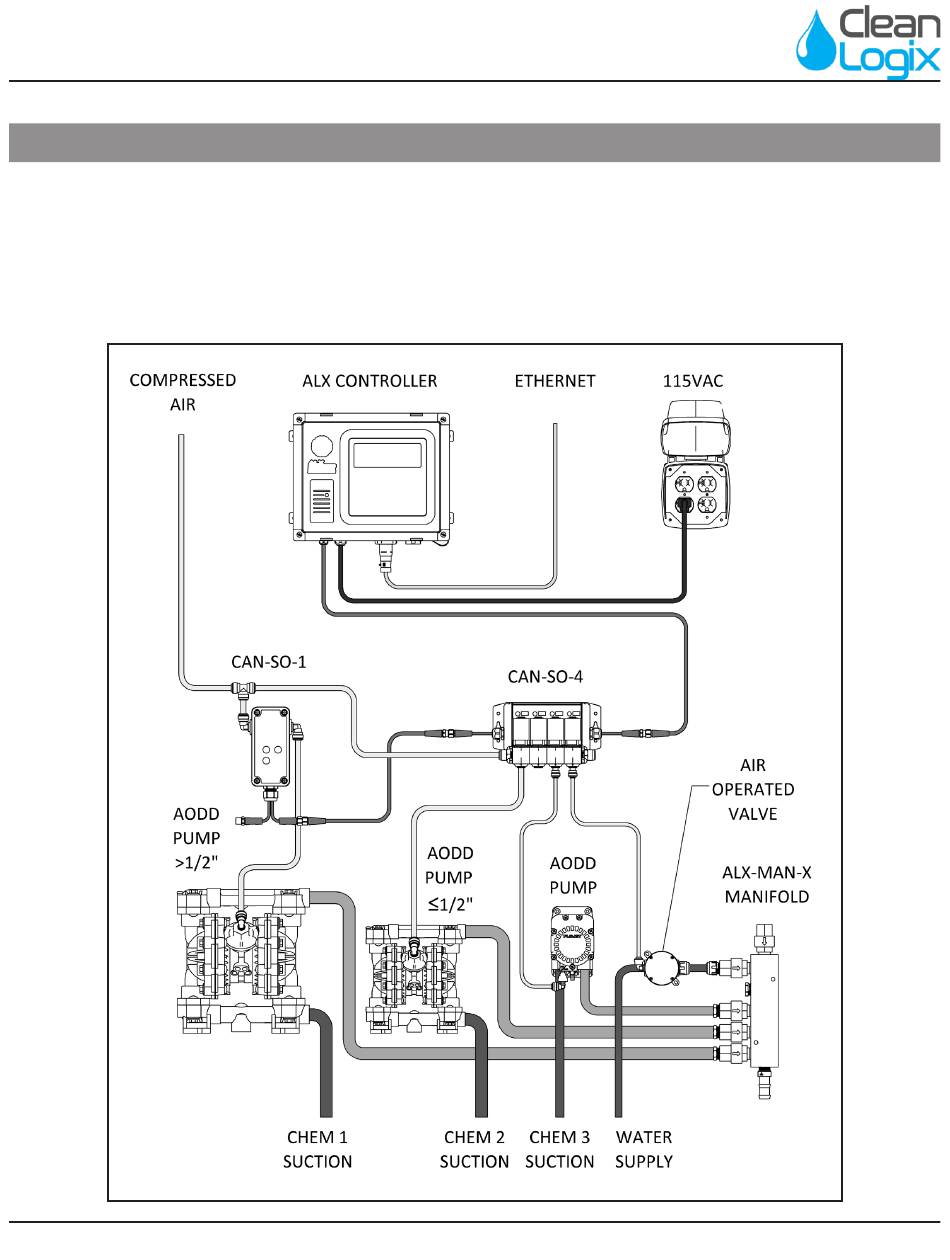

Installation Example
Page 6 of 33
ALX-ELITE User Manual
Last Update: 03/24/2021
