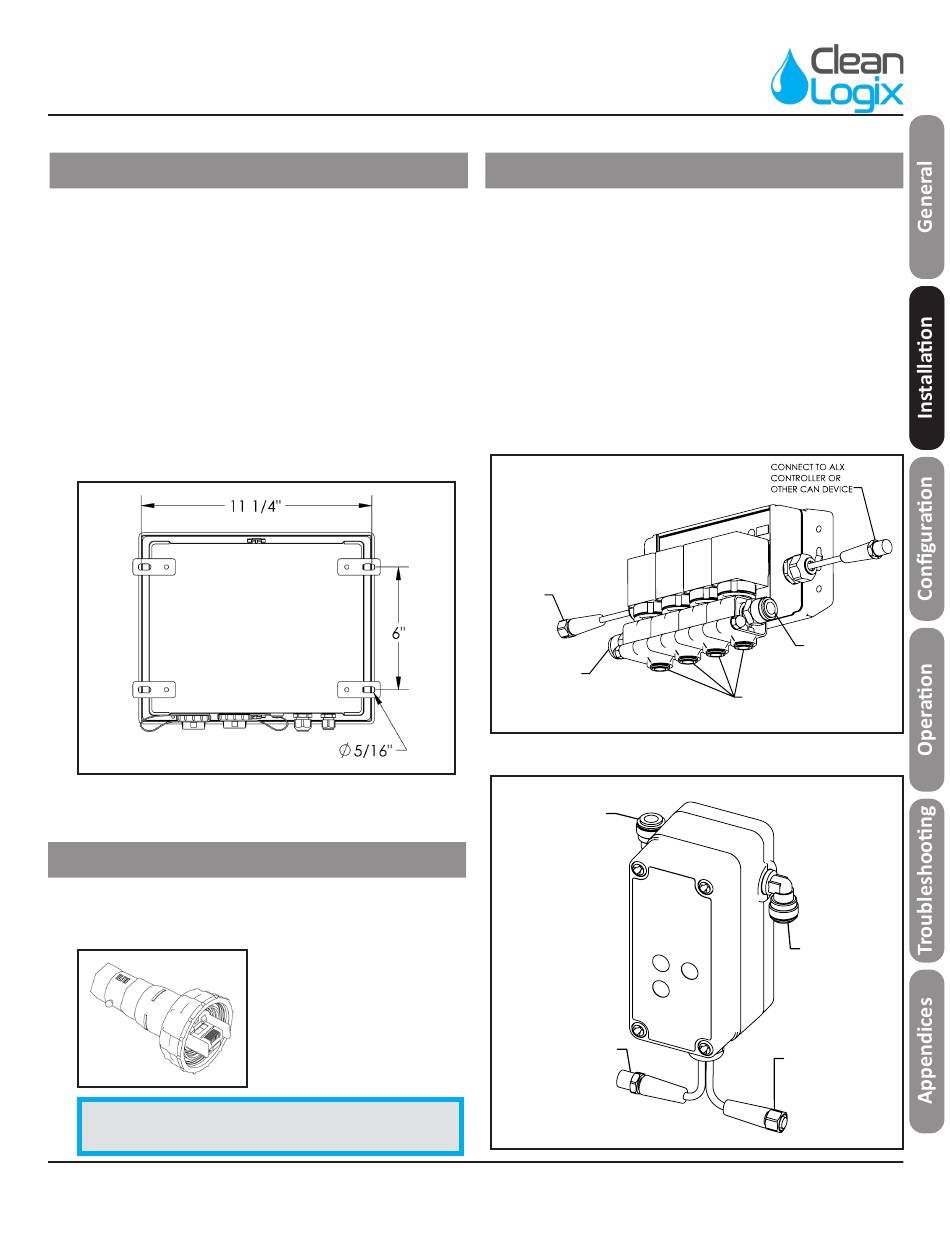

Mounting Controller

1. Determine mounting location, with consideration
of the following:
• User accessibility
• Distance to electrical outlet
• Distance to Devices/pumps
• Accessibility to Ethernet or WiFi
2. Attach the included mounting feet to the
controller.
3. Securely mount unit to wall using appropriate
hardware (not included).
Mounting
Dimensions
4. Plug power cord into a 115 VAC, GFCI protected
receptacle.
Connecting Ethernet (if not using WiFi)
1. Connect ethernet using supplied plug. Following
instructions included with plug.
NOTE: This plug must be used to ensure
environmental sealing of the ethernet port!
Page 5 of 33 ALX-ELITE User Manual
Hole

Connecting Devices

The following types of Devices are compatible with
the ALX-ELITE:
• CAN-SO-4
: A four output, 3-way solenoid valve
pack for controlling 1/2" or smaller AODD pumps
and/or air operated valves
• CAN-SO-1
: A single output, 2-way solenoid valve
for controlling up to a 1" Air Operated Double
Diaphragm (AODD) pumps
Continued on next page
CAN-SO-4
CONNECT TO
OTHER CAN
DEVICE
AIR INLET 1
(3/8" PUSH-FIT)
CAN-SO-1
AIR INLET (3/8"
PUSH-FIT)
CONNECT TO ALX
CONTROLLER OR
OTHER CAN DEVICE
AIR INLET 2
(3/8" PUSH-FIT)
AIR OUTPUTS
(3/8" PUSH-FIT)
AIR OUTPUT
(3/8" PUSH-FIT)
CONNECT TO
OTHER CAN DEVICE
