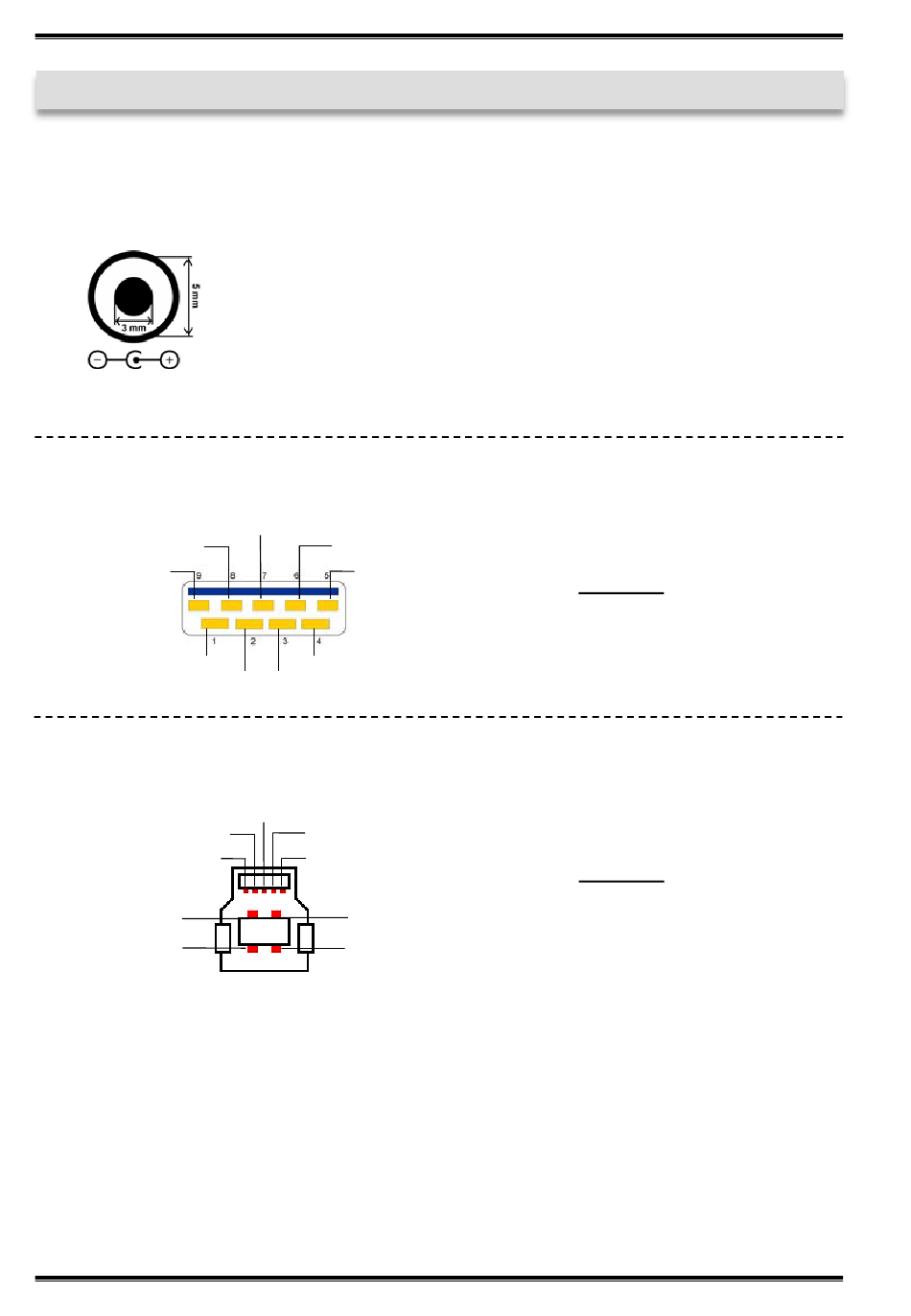

3. Layout, Connections & Jumper Settings

3.2 Connectors

+7V to +24V DC-Connector:

USB 3.2 Gen 1 A-Port:

StdB_SSTX +

StdB_SSTX -

VCC

USB 3.2 Gen 1 B-Port:

StdB_SSTX +

StdB_SSTX -

D-

D+

ATTENTION!

Never plug in with force!

Only use a power supply unit that is compatible in

terms of voltage and polarity!

GND_DRAIN

StdB_SSTX+

StdB_SSTX -

GND

D-

D+

GND_DRAIN

StdB_SSTX+

StdB_SSTX -

VBus

GND

Attention!

Never plug in with force

or in wrong direction.

Attention!

Never plug in with force

or in wrong direction.
