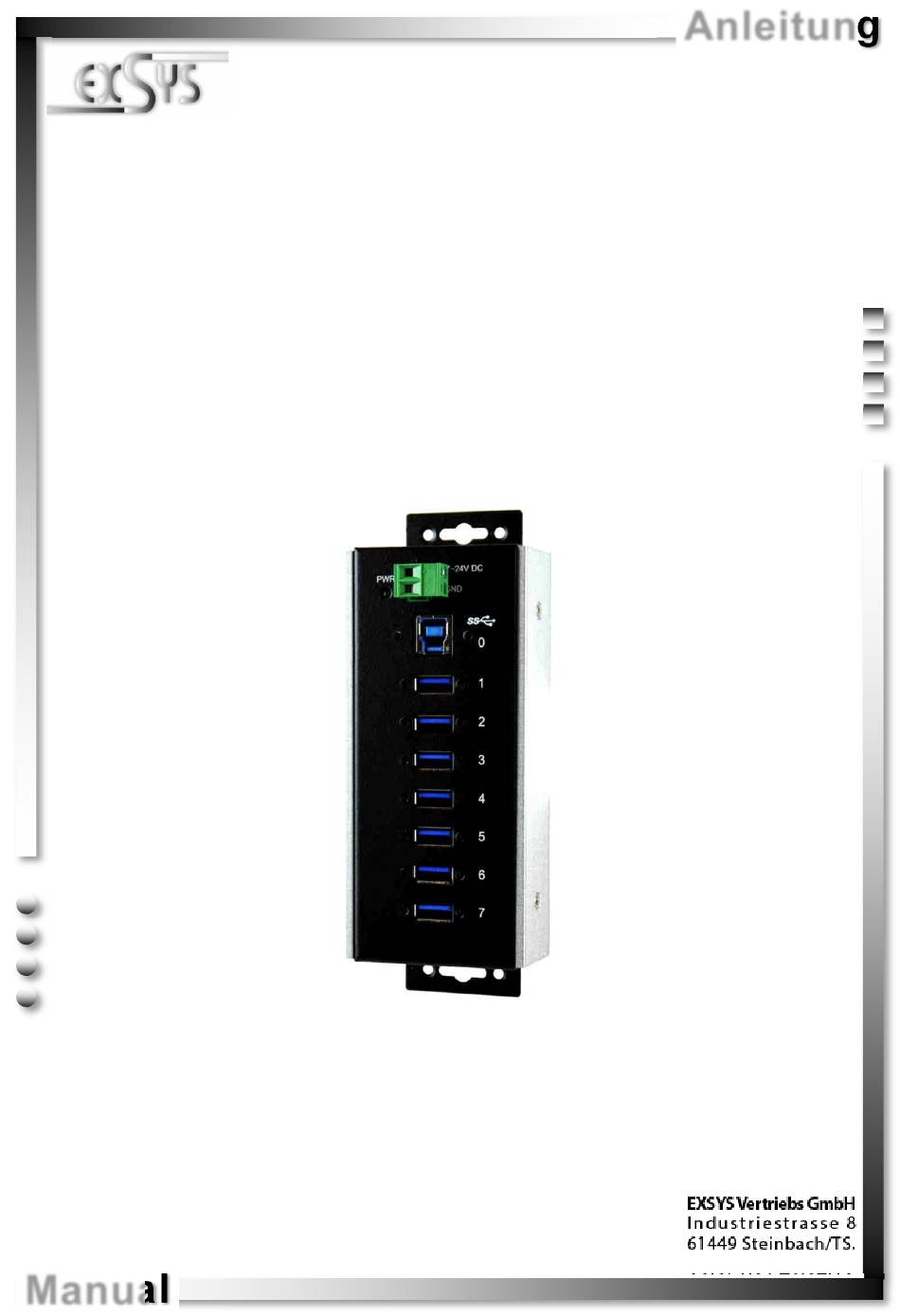

- Page 1 Anleitung EX-1187HMVS-WT 7 Port USB 3.1 (Gen1) Metall HUB (DIN-Rail) mit 15KV ESD Überspannungsschutz und erweitertem Temperaturbereich 7 Port USB 3.1 (Gen1) Metal HUB (DIN-Rail) with 15KV ESD Surge Protection and extended Temperature Range Vers. 1.0 / 26.02.18 Manual...
-
Page 2: Table Of Contents
3.1 Layout ······································································································ 9 3.2 Connections ·························································································· 9-10 3.3 Jumper Settings ························································································ 10 Hardware Installation ··········································································· 11 Driver Installation ················································································ 11 Cleaning ··························································································· 11 Technical Information ·········································································· 12 Technical Drawing ·············································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
EX-1187HMVS-WT Deutsch 1. Beschreibung Der EX-1187HMVS-WT ist ein USB 3.1 (Gen1) Metall HUB für bis zu 7 Endgeräte. Der Hub ist mit 7 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V USB 3.1 (Gen1) A-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + Achtung! StdB_SSTX - StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
3.3 Jumper Einstellungen Die EX-1187HMVS-WT wird mit der Einstellung Self-Power ausgeliefert. Sie haben aber die Möglichkeit die EX-1187HMVS-WT mit Bus-Power zu versorgen. Dafür müs- sen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öffnen. Als nächstes setzen Sie den Jumper JP5 von DIS (Disable) auf ENA (Enable) um. Siehe nachfolgende Abbildung. -
Page 6: Hardware Installation
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 7: Technische Daten
-40° bis 85° Celsius Lagertemperatur: -40° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 162,50 x 61,53 x 31,00 mm Gewicht: 560g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description

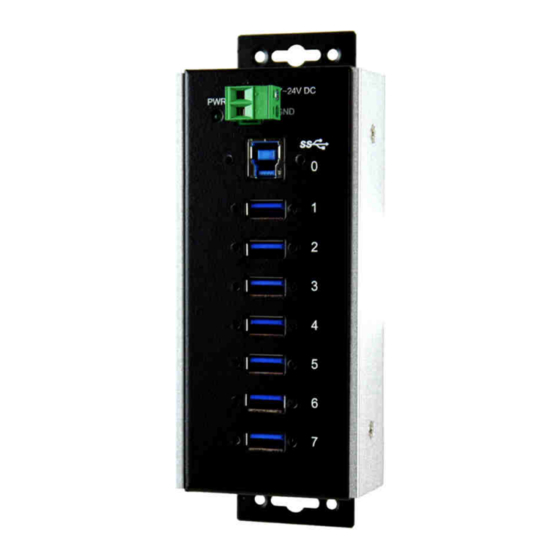

EX-1187HMVS-WT 1. Description The EX-1187HMVS-WT is a plug & play high-speed USB 3.1 (Gen1) metal hub for 7 USB devices. The EX-1187HMVS-WT provides 7 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.1. All ports can fix with screw lock. -
Page 9: Layout, Connections & Jumper Settings
Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V USB 3.1 (Gen1) A-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force or in wrong direction. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Jumper Settings
The EX-1187HMVS-WT comes with the setting Self-Power. You also have the possi- bility the EX-1187HMVS-WT to supply Bus-Power. For this you open the case with the four screws on both sides. Then you must set the jumper JP5 from DIS (Disable) to ENA (Enable). -
Page 11: Hardware Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
-40°F to 185°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 162,50 x 61,53 x 31,00 mm Weight: 560g 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
