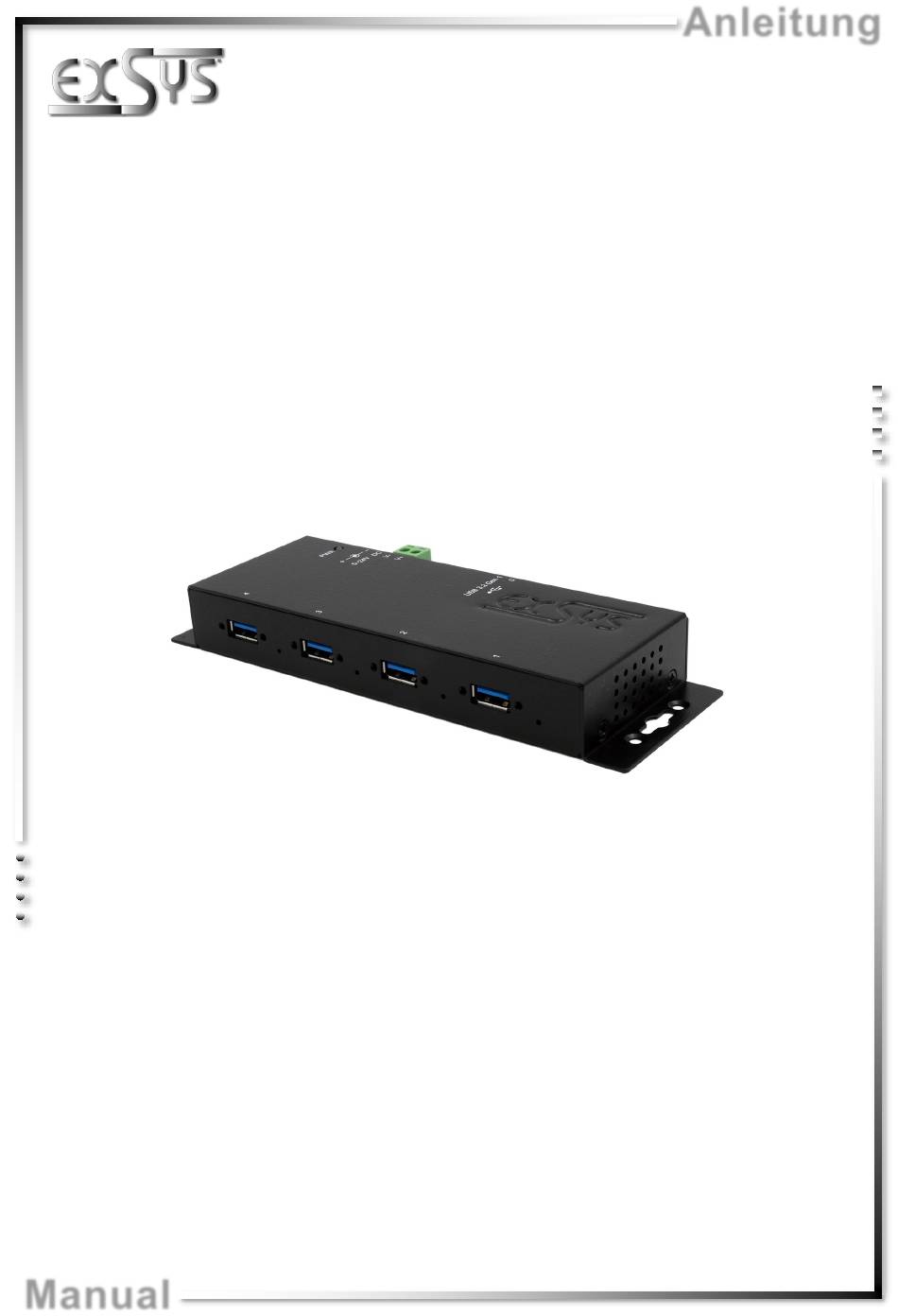

EX-1183HMVS-2
4-Port USB 3.2 Gen 1 Metall HUB mit
1.5A Strom pro USB-Port und
15KV ESD Überspannungsschutz
4-Port USB 3.2 Gen 1 Metal HUB with
1.5A power for each USB-Port and
15KV ESD Surge Protection
Anleitung
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Vers. 1.2 / 08.02.24
Advertisement
Table of Contents
Related Manuals for Exsys EX-1183HMVS-2
Summary of Contents for Exsys EX-1183HMVS-2
- Page 1 1.5A Strom pro USB-Port und 15KV ESD Überspannungsschutz 4-Port USB 3.2 Gen 1 Metal HUB with 1.5A power for each USB-Port and 15KV ESD Surge Protection Deutschland: EXSYS Vertriebs GmbH Industriestraße 8 61449 Steinbach www.exsys.de Schweiz: EXSYS Vertriebs GmbH Dübendorfstrasse 17 8602 Wangen www.exsys.ch...
-
Page 2: Table Of Contents
Layout, Connections & Jumper Settings ··························································· 10-12 Layout ······················································································································· 10 Connections ·········································································································· 10-11 Jumper Settings ·········································································································· 12 Hardware Installation ························································································· 13 Driver Installation ······························································································ 13 Cleaning ········································································································· 13 Technical Information ························································································ 14 Technical Drawing ···························································································· 14 © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1183HMVS-2 ist ein USB 3.2 Gen 1 Metall HUB für bis zu 4 Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.2. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
Lieferumfang enthaltenes Netzteil 3.2 Anschlüsse +7V bis +48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 48V © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Anschlüsse
StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. USB 3.2 Gen 1 B-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Achtung! Stecker niemals umgekehrt oder mit VBus Gewalt einstecken. © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Jumper Einstellungen
JP1 = ENA Jumper JP1 Jumper JP2 Netzteil Host PC Hub Downstream JP2 = ON Bus Power Host control Daten Power nein nein nein nein HOST nein HOST nein DIS/ENA HOST/ON © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 7: Hardware Installation
4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Anschluss des EX-1183HMVS-2 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Verbinden Sie das mitgelieferte USB 3.2 Gen 1 Kabel mit dem USB 3.2 Gen 1 Upstream B- Anschluss des Hubs. -
Page 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +48 Volt Abmessung: 178.50 x 69.30 x 23.00 mm Gewicht: 815 g 8. Technische Zeichnung © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description
English 1. Description The EX-1183HMVS-2 is a plug & play high-speed USB 3.2 Gen 1 metal hub for 4 USB devices. The EX-1183HMVS-2 provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.2. All ports can fix with screw lock. Through the power supply via the Terminal Block or the DC-Connector, 1,5A can be provided at each USB port. -
Page 10: Layout, Connections & Jumper Settings
Upstream B-Port Power Supply for included Power Supply 3.2 Connections +7V to +48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 48V © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Connections
Never plug in with force or in wrong direction. USB 3.2 Gen 1 B-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force VBus or in wrong direction. © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Jumper Settings
The possible settings and their effects are shown in the following table. Default: Settings Status Function JP1 = ENA Jumper JP1 Jumper JP2 Netzteil Host PC Hub Downstream JP2 = ON Bus Power Host control Data Power HOST HOST DIS/ENA HOST/ON © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 13: Hardware Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +48 Volt Size: 178.50 x 69.30 x 23.00 mm Weight: 815g 8. Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
