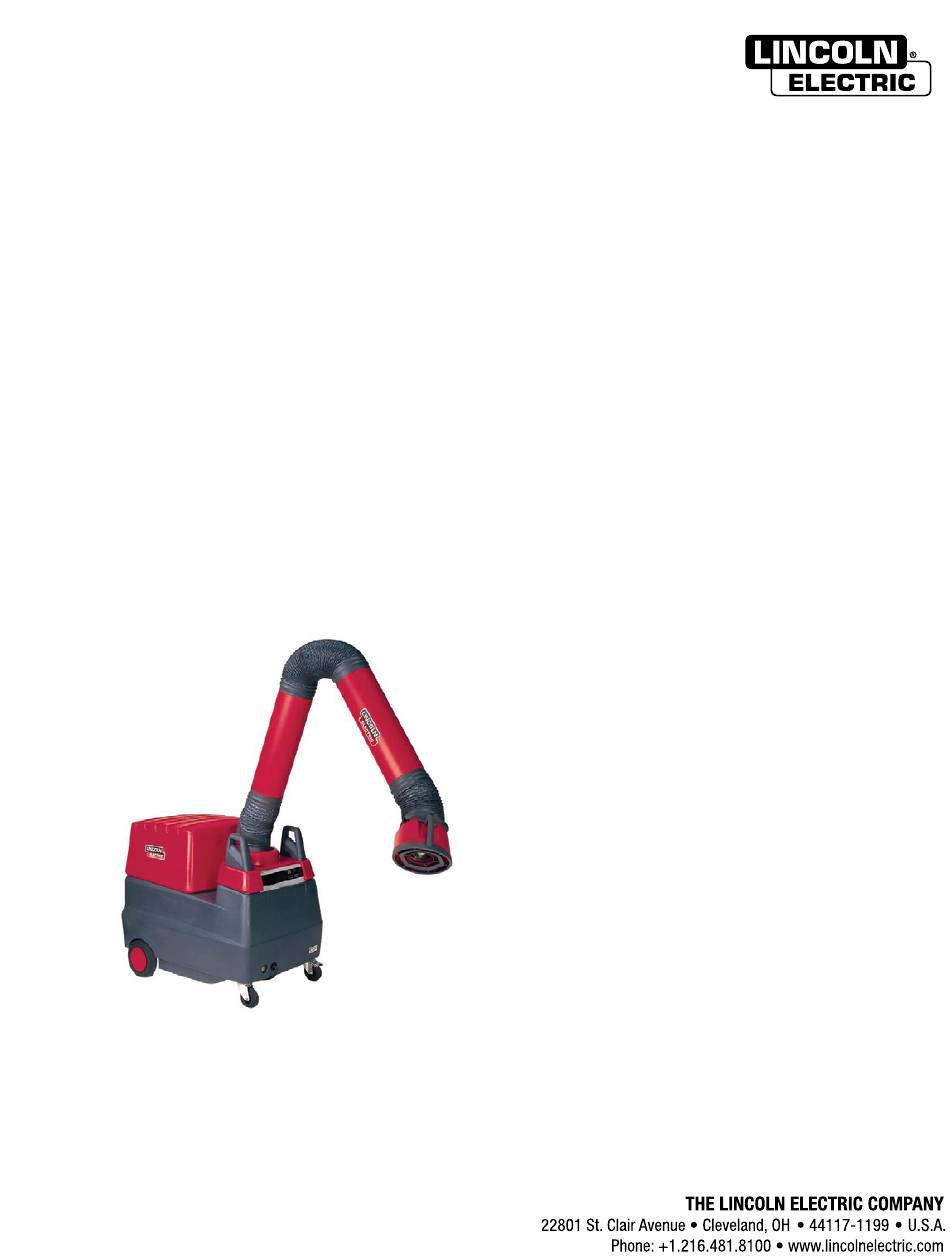

MOBIFLEX
400-MS(/HE) MOBILE FILTER UNIT
+ LFA 3.1/4.1 EXTRACTION ARM
For use with machines having Code Numbers:
®
Mobiflex
400-MS(/HE) Base Unit:
K1741-1 / K1741-2
Extraction Arm:
K2633-1 / K2633-2 / K2633-3 / K2633-4
SERVICE MANUAL
SVM258
| Issue D ate 15-Mar
© Lincoln Global, Inc. All Rights Reserved.
NOTE: This manual will cover most of the troubleshooting and repair
procedures for the code numbers listed. Some variances may exist when
troubleshooting/repairing later code numbers.
