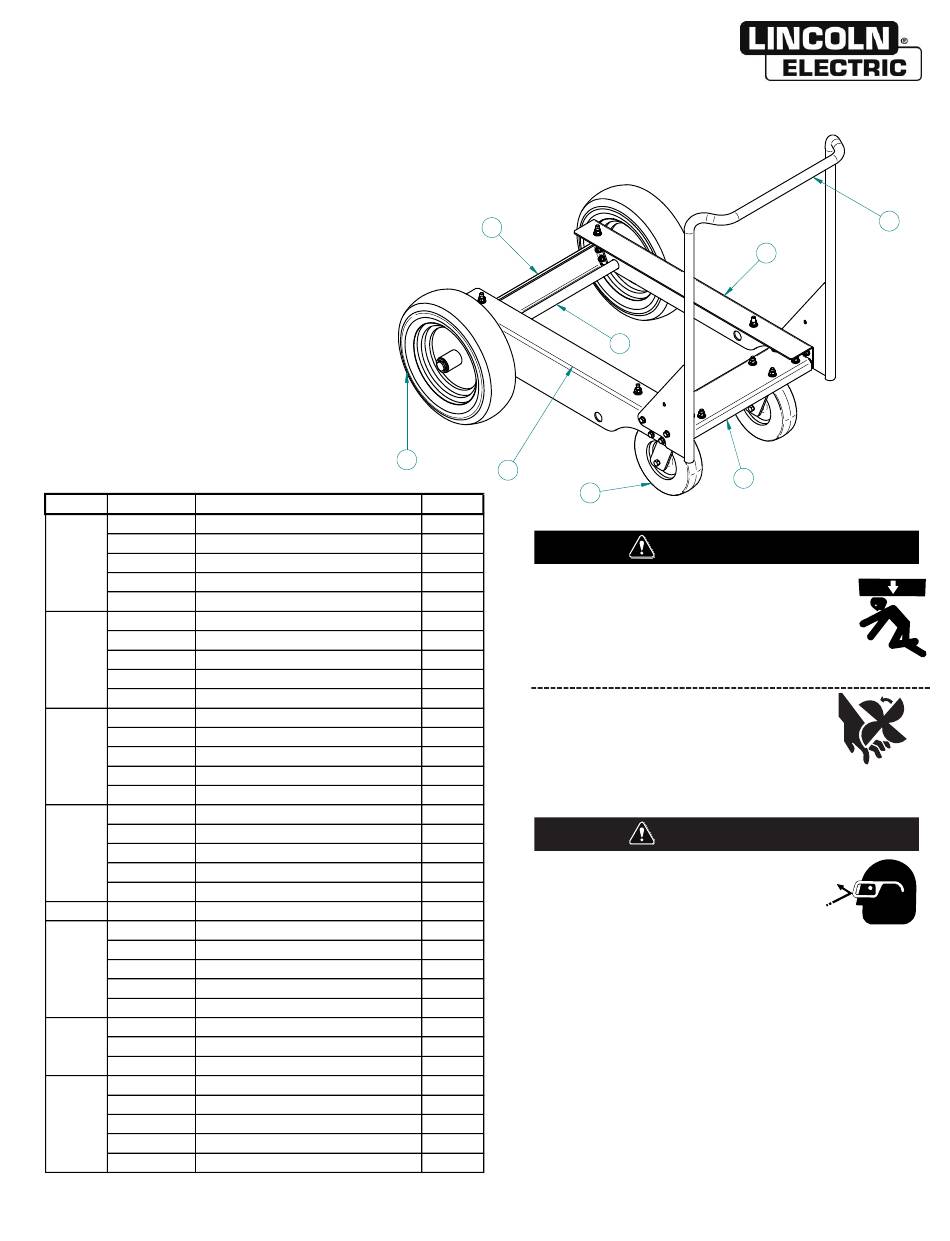

K3589-1 - RANGER FACTORY UNDERCARRIAGE
REQUIRED TOOLS
 9/16" Wrench and Socket
 1/2" Wrench and Socket
 Ratchet
 TORX T-30 Bit or Driver
 Grease Gun
 Hammer or Mallet
 Crane or Hoist
PARTS INCLUDED
ITEM
PART NO.
L17286
T8833-86
3/8-16 X 1.25" HEX HEAD CAP SCREW
1
CF000067
S9262-120
E106A-16
L17287
T8833-86
3/8-16 X 1.25" HEX HEAD CAP SCREW
2
CF000067
S9262-120
E106A-16
L17288
S24739-43
5/16-18 X .75" HEX HEAD CAP SCREW
3
CF000029
S9262-121
E106A-14
L17289
S24739-43
5/16-18 X .75" HEX HEAD CAP SCREW
4
CF000029
S9262-121
E106A-14
5
M26317
M26562-1
T8833-86
3/8-16 X 1.25" HEX HEAD CAP SCREW
6
CF000067
S9262-120
E106A-16
S32770
7
S32843
S9262-24
G9190
S24739-43
5/16-18 X .75" HEX HEAD CAP SCREW
8
CF000029
S9262-121
E106A-14
IM10521 Jan-19 ©Lincoln Global Inc. The graphics may not exactly reflect the latest design.
7
DESCRIPTION
SIDE RAIL
3/8-16 HEX NUT
3/8" PLAIN WASHER
3/8" LOCK WASHER
SIDE RAIL
3/8-16 HEX NUT
3/8" PLAIN WASHER
3/8" LOCK WASHER
FRONT CROSSMEMBER
5/16-18 HEX NUT
5/16" PLAIN WASHER
5/16" LOCK WASHER
REAR CROSSMEMBER
5/16-18 HEX NUT
5/16" PLAIN WASHER
5/16" LOCK WASHER
AXLE SHAFT
CASTER WHEEL
3/8-16 HEX NUT
3/8" PLAIN WASHER
3/8" LOCK WASHER
PNEUMATIC WHEEL
E-CLIP
1" PLAIN WASHER
HANDLE ASSEMBLY
5/16-18 HEX NUT
5/16" PLAIN WASHER
5/16" LOCK WASHER
4
5
1
6
QTY.
1
2
2
FALLING EQUIPMENT can cause
4
injury.
2
•
Lift only with equipment of adequate lifting
1
capacity.
2
•
Be sure machine is stable when lifting.
2
4
2
MOVING PARTS can injure.
1
•
Stop engine before installation.
4
•
Assemble on level ground.
4
•
Push only from the front using the
4
Undercarriage handle.
4
1
4
4
•
Wear safety glasses in work area at all
4
times.
4
1
2
8
8
16
8
2
2
2
1
4
4
4
4
2
3
WARNING
CAUTION
8
