K963-3 HAND AMPTROL
This manual covers equipment which is no
longer in production by The Lincoln Electric Co.
Speci cations and availability of optional
features may have changed.
SAFETy
Follow all safety guidelines in your power source operators manual and any additional guidelines covered in this
manual.
GENERAL DESCRIPTION

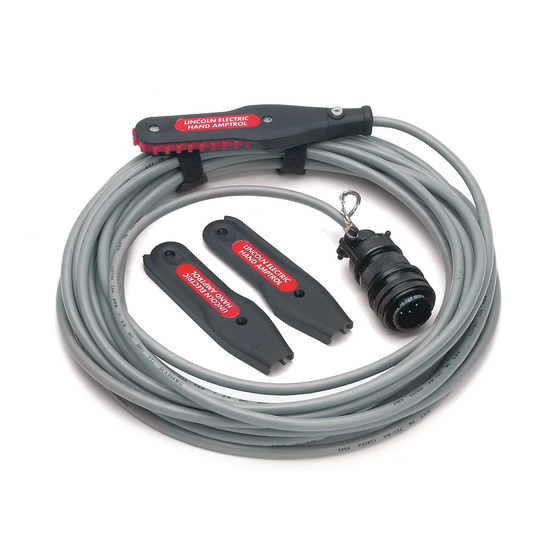

The Hand Amptrol is a finger or thumb operated remote control, in a lightweight (14oz.) compact package that
attaches to a TIG welding torch handle. The Amptrol has a 28 ft cable with a 6-pin MS-type connector (18-12P)
to connect to a power source or high frequency generating accessory. It is designed to fit any Lincoln TIG Torch.
INSTALLATION
TyPICAL INSTALLATIONS
Refer to the following block diagrams for compatible power sources and required adapters.
A. DIRECT CONNECTION
6 Pin Amphenol to K963
POWER SOURCE
SQUARE WAVE TIG 175
SQUARE WAVE TIG 255
SQUARE WAVE TIG 355
TIG 250/250
TIG 300/300
R3R-300
R3R-400
R3R-500 & 500-I
R3R-600-I
V250S*
POWER WAVE 450
* Disconnect ground lead at connector end of K963 when used with
V250S. See CONNECTION OF THE AMPTROL TO THE POWER
SOURCE in this manual for details.
OPERATING INSTRUCTIONS
B. INDIRECT CONNECTION
14 Pin Amphenol to K963 via K864 Adapter.
POWER SOURCE
V300 PRO
V300 I
DC400 (codes with 14 pin
amphenol)
K963
Terminal Strip to K963 via K843 Adapter.
POWER SOURCE
DC250
DC400 (older codes with termi-
nal strip)
1
IM567
April, 2011
K864
K963
K843
K963
