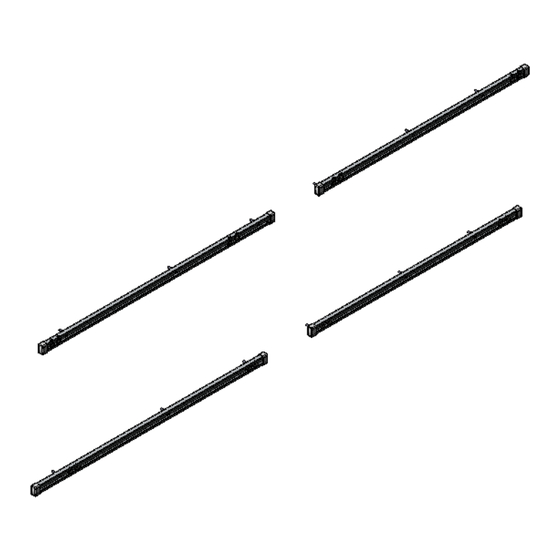

- Page 1 INSTALLATION GUIDE 6550-PM Install Track Kit Promaster, Driver Side...
-
Page 2: Required Items
QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 4 Phase 2 - Installation q 2.1 Mounting Track Installation......................5 - 6 q 2.2 New Shelving Installation w/ Install Track Kit................. REQUIRED ITEMS q Cordless Impact q Cordless Drill q 1/4"... -
Page 3: Phase 1 - Assembly
Qty. 10 - 629 Mounting Track 52" 10 - 605 Mounting Track 47" 10 - 557 End Cap 96 - 6022 Customer Fastener Kit 6550-PM Installation Guide | REV. B1 | Page 3 For technical support, contact us at 1-800-565-5321... - Page 4 #90-208 Hex Bolt 5/16" × 1" 16× 16× # 94-150 5/16" #94-150 Channel Nut Hex Bolt 16× 16× # 90-208 5/16"-18 × 1" GR-5 ZINC 6550-PM Installation Guide | REV. B1 | Page 4 For technical support, contact us at 1-800-565-5321...
-
Page 5: Phase 2 - Installation
2.1 MOUNTING TARCK INSTALLATION 1.2.1 Attach one end cap on each side of the mounting tracks. 4× 4× END CAP MOUNTING TRACK END CAP 6550-PM Installation Guide | REV. B1 | Page 5 For technical support, contact us at 1-800-565-5321... - Page 6 PLUSNUT PLUSNUT PLUSNUT TOP FRONT REAR FRONT PLUSNUT PLUSNUT PLUSNUT BOTTOM REAR REAR FRONT PLUSNUT PLUSNUT PLUSNUT BOTTOM FRONT REAR FRONT PLUSNUT PLUSNUT PLUSNUT 6550-PM Installation Guide | REV. B1 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 1/2" Socket FASTENERS USED 8× wall kits fastener kit #90-208 Hex Bolt 5/16" × 1" #98-122 Lock Washer #98-116 Flat Washer #94-150 Channel Nut 6550-PM Installation Guide | REV. B1 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 “You have successfully installed your 6550-PM Thank you for doing business with us. ” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 6550-PM Installation Guide | REV. B1 | Page 8 For technical support, contact us at 1-800-565-5321...
