SIMPLICITY PLUS INSTALLATION MANUAL
10. FIELD DEVICE TERMINATION
10.1 TERMINATING THE WIRING

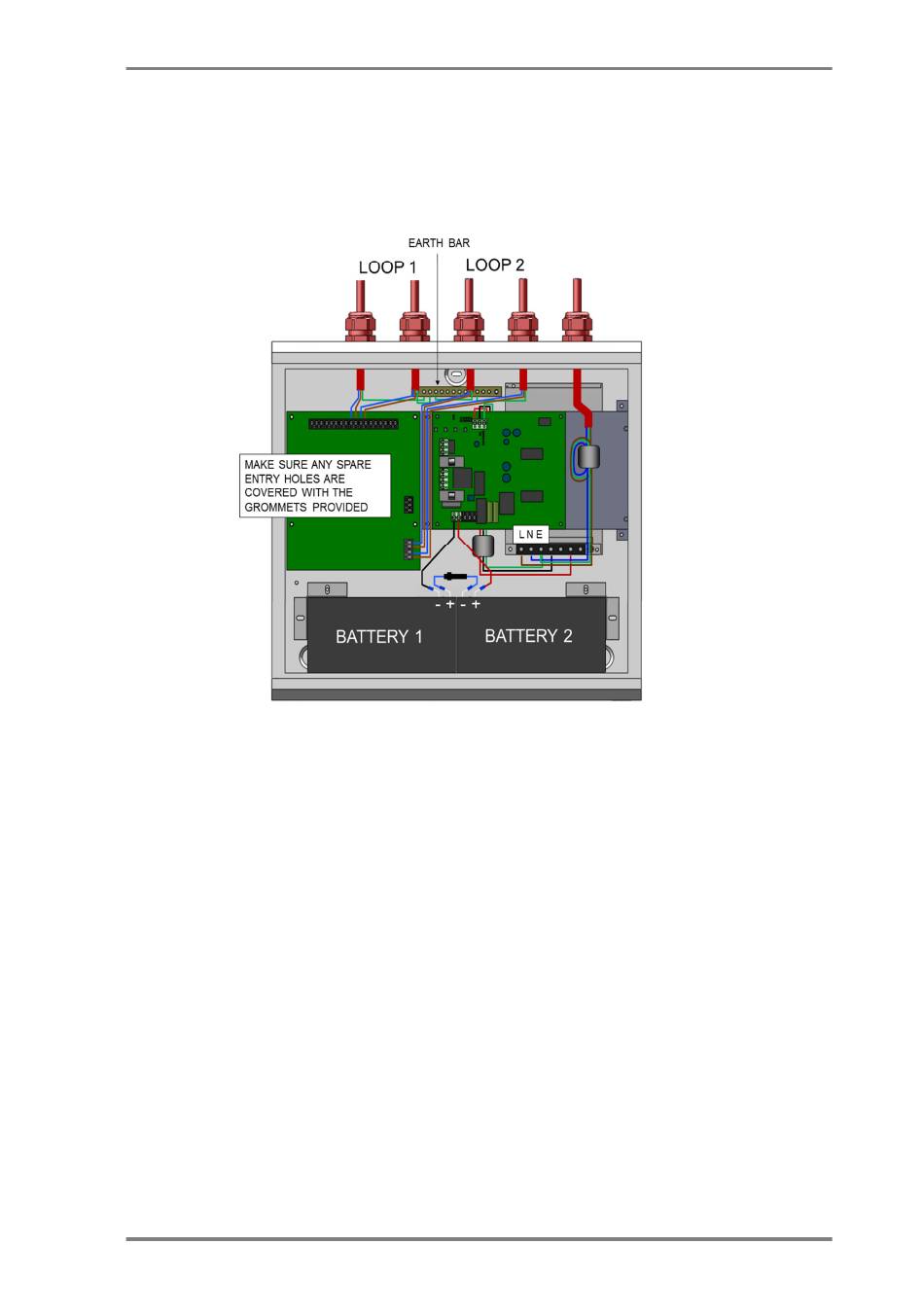

Figure 6: Cable connections
All cables entering the enclosure should have cable glands, which will prevent unwanted openings in the enclosure.
The Addressable Loop circuits should be connected to the appropriate connector block on the Termination PCB.
All cable screens should be terminated at the brass earthing strip as shown in Figure 6 .
Approved Document No: GLT.MAN-107
Issue 3.16
Author: NRPJ
www.acornfiresecurity.com
Date: 21/09/2017
www.acornfiresecurity.com
PAGE 22
