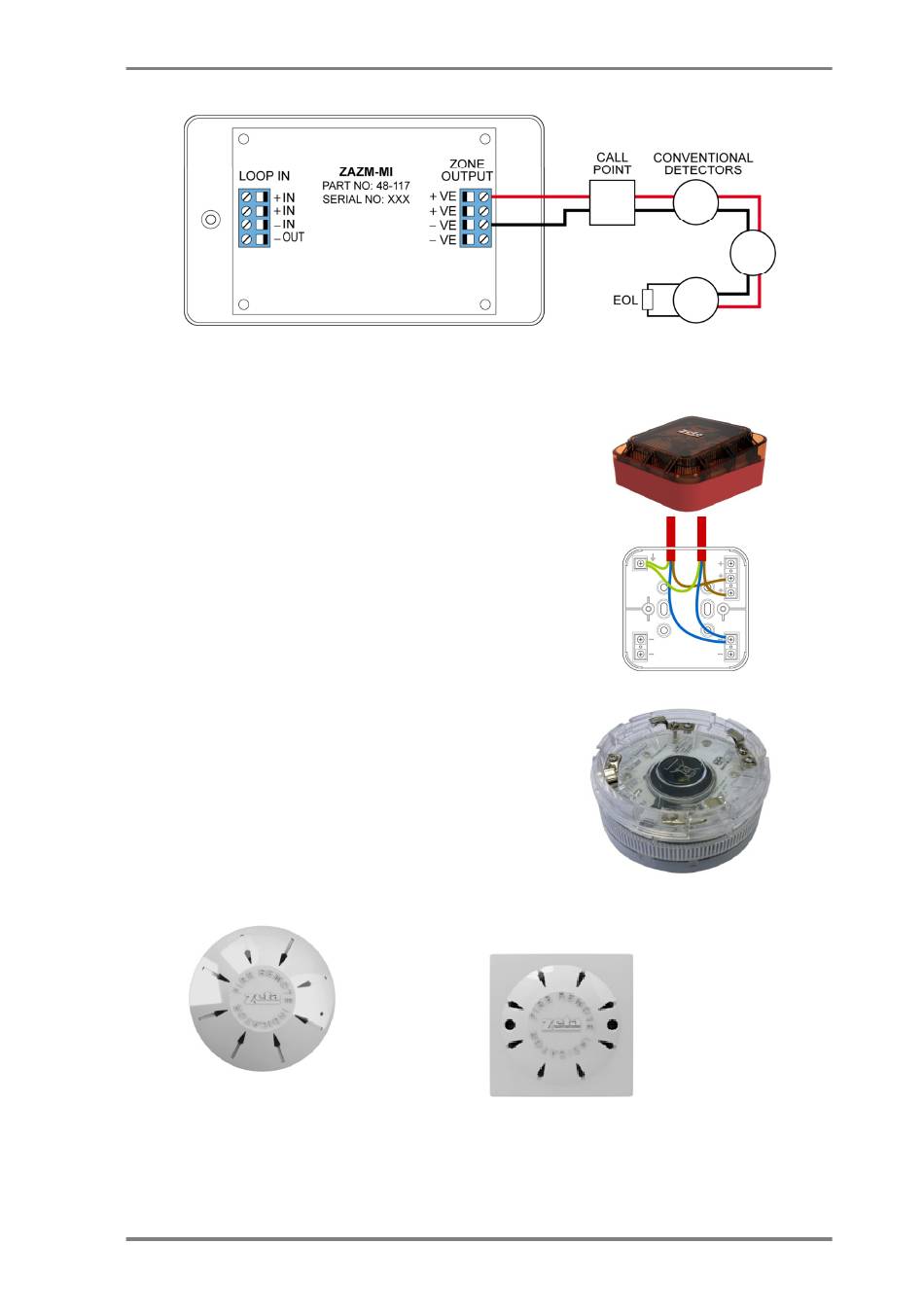

7.1.6 ZAZM – MI Conventional Zone Module
The ZAZM powers the conventional zone from the addressable systems loop, so no external power supply is required. The
EOL for the zone is 6.2KΩ.

7.1.7 Xtratone Sounder/Sounder Flasher

The Xtratone sounder or sounder flasher is a wall mount sounder.
The programming of the sounder is done via the D.I.L switch mounted on the
inside (front). It may also be programmed via the handheld programming tool.
Connecting the sounder is done using the terminals in the back box
of the device. Please refer to the above diagram.

7.1.8 Sandwich Sounder

The sandwich sounder has no wiring to connect as it just clips straight on
to a standard base. It will run as a platform sounder using no address, it is
controlled by the detector fitted to it. It can also be given an address via
the handheld programming tool making it an addressable sounder.

7.1.9 Remote LED Indicator

Ceiling Mount (MKII-ARL/C)
There are two versions of the remote LED, Wall mounted and Ceiling mounted. The ceiling mounted version requires a
standard detector base.
Each version of the remote LED can monitor 1 or up to 12 devices. The way in which the LED is programmed is either via
the D.I.L switches on the device or soft addressing via the handheld programmer.
