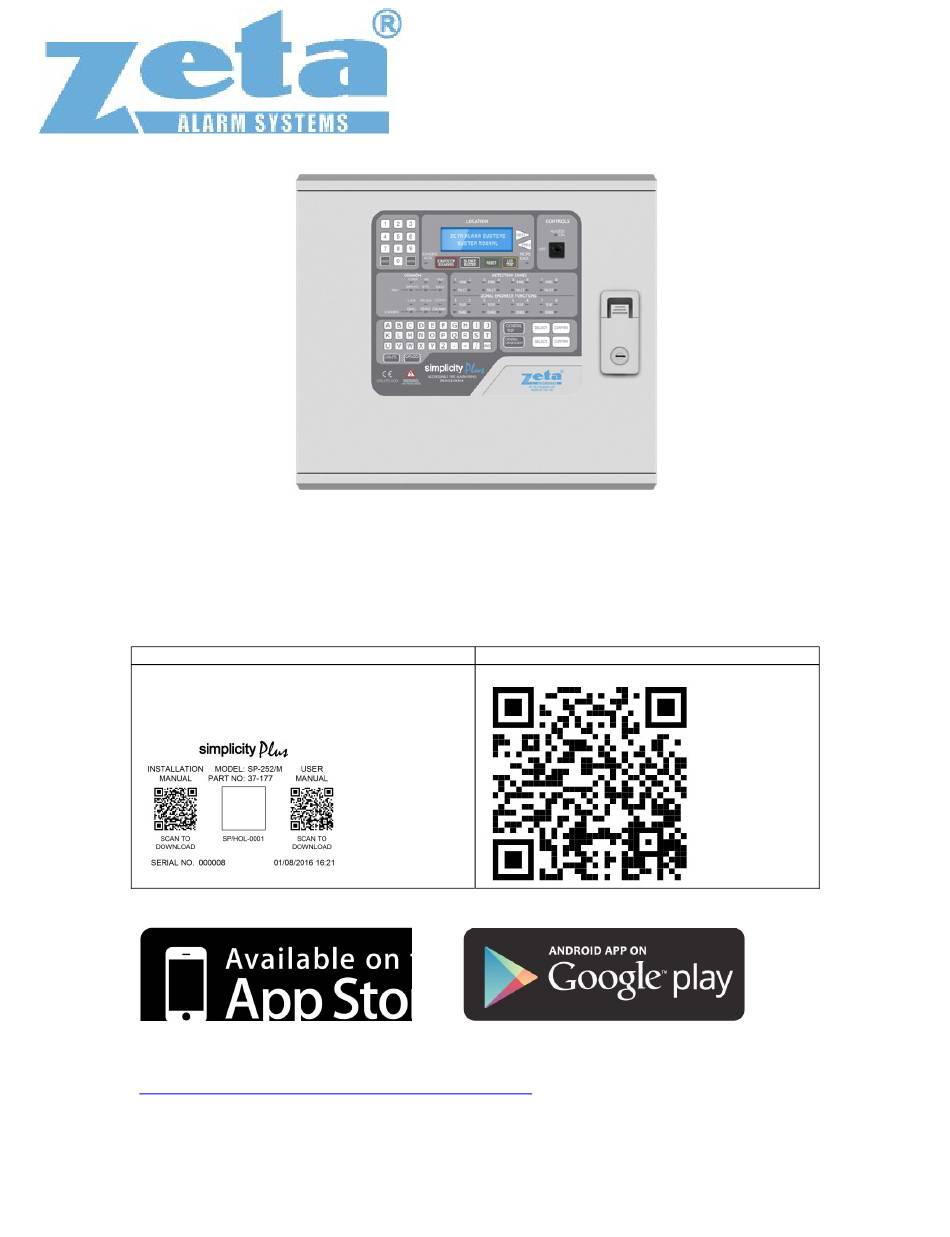

Simplicity Plus Fire Alarm Control Panel
Manuals
As part of our drive to help the environment and reduce our carbon footprint, we are pushing a
move to electronic manuals. All our panels will contain a simple QuickStart guide, which gives an
overview of setting up the panel.
Installation manual
Can be downloaded to a Smartphone or tablet by
scanning the QR code on the panel`s serial number
label
Suitable QR scanner apps are available for free in Apple`s App Store, or on Android`s Google Play
Alternatively, they can be downloaded from the support section of our website.
http://www.zetaalarmsystems.com/support/manuals.html
Your distributer will be happy to arrange a hard copy of the manual if required
Doc: GLT-106-7-3
Iss: 002
Date 12/06/2024
Quick Start Guide
User manual
Scan this QR code
.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zeta Alarm Systems Simplicity 64
Summary of Contents for Zeta Alarm Systems Simplicity 64
- Page 1 Simplicity Plus Fire Alarm Control Panel Quick Start Guide Manuals As part of our drive to help the environment and reduce our carbon footprint, we are pushing a move to electronic manuals. All our panels will contain a simple QuickStart guide, which gives an overview of setting up the panel.
- Page 2 One important thing to remember with the Simplicity system is that the devices address will dictate which zone it will be seen in (See below chart). The panel is available in 64 device (1 loop), 126 device (1 loop) or 252 device (2 loop) sizes Simplicity 64 / 126 Simplicity 252 Zone...
- Page 3 CONNECTING MAINS POWER CONNECTING THE BATTERIES The panel should be connected to 220-240V AC by a 3A Although there are many sizes of suitable battery, the sizes rated spur to the fuse box with 1mm to 2.5mm 3-core we usually recommend for the Simplicity are 12V 7Ah, or cable.
- Page 4 Addressing the System. The Simplicity panel is per-zoned, so depending on the address you give the device will determine the zone it is in. The following chart shows the zone addresses. SWITCHES SWITCHES SWITCHES ADDRESS ADDRESS ADDRESS Doc: GLT-106-7-3 Iss: 002 Date 12/06/2024...
