Getting Started

Quadro Sync II Card Overview

The Quadro Sync II card is an accessory to the NVIDIA RTX and NVIDIA Quadro
Professional GPUs. On the top edge of the card are five connectors that can
connect to four GPUs and a second Quadro Sync II card (see Figure 1). The flexible
cables to make these connections are included in the box; four 12-inch cables and
two 24-inch cables.

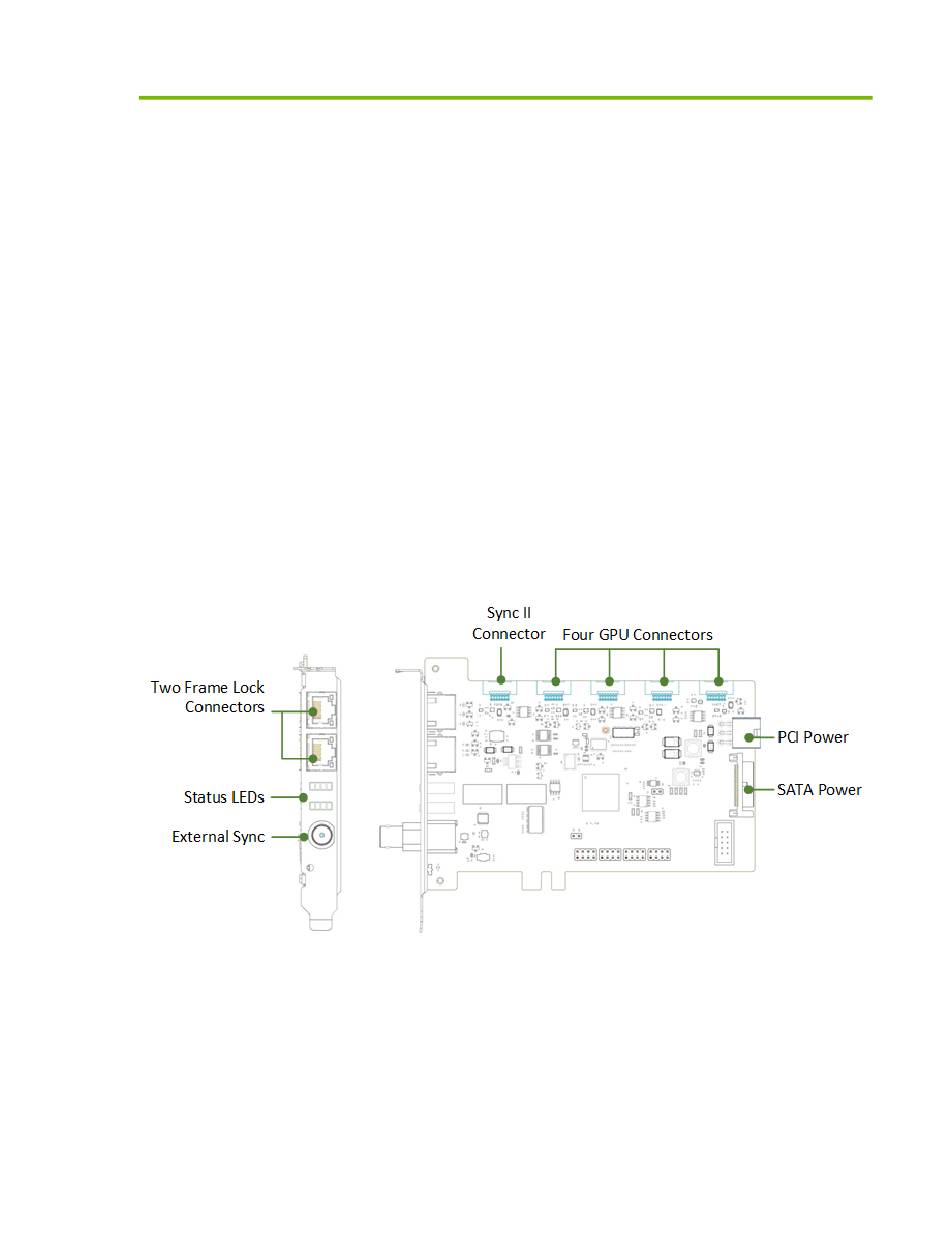

Figure 1. Quadro Sync II Overview
For high vibration environments, self-latching/locking cable connectors are used,
which hold all cables securely in place on both the Quadro Sync II card and NVIDIA
RTX/Quadro GPU. Since the SATA power connector has no physical retention, the
board has a hole that can be used to secure the cable with a cable tie.
