NVIDIA Quadro M6000 Sync
PNY Part Number: VCQM6000SYNC-PB
User Guide
PNY | 100 Jefferson Road | Parsippany | NJ 07054-0218 | 973-515-9700 | www.pny.com/quadro
Features and specifications are subject to change without notice. NVIDIA and Quadro are registered trademarks of NVIDIA. The PNY
logotype is a registered trademark of PNY. All other trademarks are the property of their respective owners. © 2014 PNY. All rights
reserved.
Advertisement
Related Manuals for Nvidia Quadro M6000 Sync
Summary of Contents for Nvidia Quadro M6000 Sync
- Page 1 PNY | 100 Jefferson Road | Parsippany | NJ 07054-0218 | 973-515-9700 | www.pny.com/quadro Features and specifications are subject to change without notice. NVIDIA and Quadro are registered trademarks of NVIDIA. The PNY logotype is a registered trademark of PNY. All other trademarks are the property of their respective owners. © 2014 PNY. All rights...
- Page 2 The NVIDIA Quadro Sync board is designed to fit into any available expansion slot within 6 to 24 inches of the NVIDIA Quadro M6000. The Quadro Sync requires power via a 6-pin power connector or SATA power connector. The Quadro Sync card can host up to four (4) NVIDIA Quadro M6000 boards.

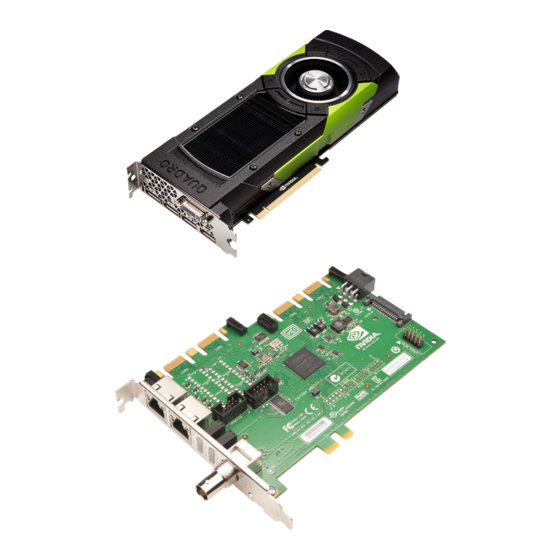

- Page 3 NVIDIA Quadro M6000 Photo NVIDIA Quadro Sync Photo Refer to the NVIDIA Quadro Sync Quick Start Guide which covers the various connectors available and how to connect the Quadro Sync board to the Quadro M6000. NVIDIA Quadro M6000 Specifications and Features...
- Page 4 BNC house sync • RJ45 1 Frame Lock sync (using CAT5 straight-through cable) • RJ45 2 Frame Lock sync (using CAT5 straight-through cable) • Frame Lock and Stereo Sync Status LEDs NVIDIA Quadro Sync Key Features NVIDIA Quadro M6000 Sync User Guide...
- Page 5 Use dual 6 pin to 8 pin cable not available adapter Not connected Message on display will alert user to connect AUX power. Driver Support: • Windows 10, 8.1, 8, 7, and Linux (32- and 64-bit) NVIDIA Quadro M6000 Sync User Guide...
- Page 6 Quadro M6000, Quadro Sync and Mosaic Configuration Options 1) Four display configuration with Quadro M6000 and Quadro Sync. 2) Eight (1 x 8 or 2 x 4) display configuration with two Quadro M6000s and Quadro Sync. NVIDIA Quadro M6000 Sync User Guide...
- Page 7 3) Twelve (4 x 3) display configurations with three Quadro M6000s and Quadro Sync. NVIDIA Quadro M6000 Sync User Guide...
- Page 8 Also pay attention to thermal capacity since multiple ultra-high-performance M6000 boards, even based on the reasonable individual wattage utilized, generate heat load that must be accounted for. NVIDIA Quadro M6000 Sync User Guide...
