Quadro Sync II Card Install
Prior to installing the Quadro Sync II card, be sure to power down the machine and
unplug the power cord.
Use the following steps and Figure 2 as a reference to install the Quadro Sync II Card
1. Place the Quadro Sync II card in a free PCI Express slot on the motherboard.
Note the PCIe edge fingers may not bottom out in the PCIe slot.

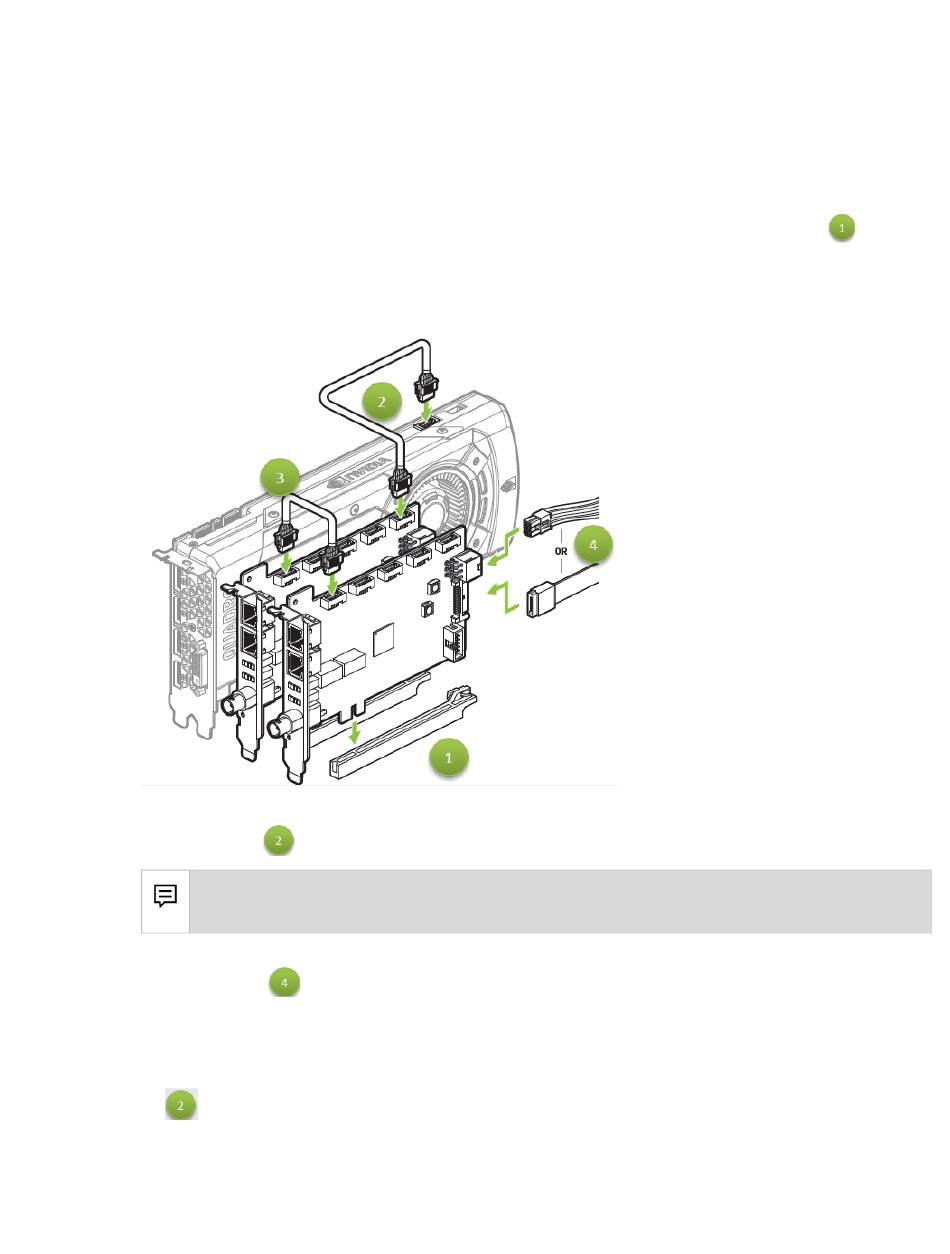

Figure 2.
Installing and Connecting the Quadro Sync II Card
2. Connect up to four NVIDIA RTX/Quadro cards to the Quadro Sync II card GPU
connectors
(in Figure 2) using the included cables.
Note: There is no order requirement when connecting the NVIDIA RTX/Quadro cards to the
Quadro Sync II card GPU connectors.
3. Connect power to the Quadro Sync II card using either a 6-pin PCIe or SATA
power cable
in Figure 2).
If adding a second Quadro Sync II card for a Dual Quadro Sync II configuration:
4. Install a second Quadro Sync II card in a nearby PCIe slot.
5. Connect up to four Quadro cards to the Quadro Sync II card GPU connectors
(
in Figure 2) using the included cables.
NVIDIA CONFIDENTIAL
Quadro Sync II
Installation System Requirements
DU-08348-001_v07 | 4
