Framelock Connector LEDs

The Framelock connector LEDs on the RJ45 ports indicate the state of the Quadro
Sync II card. The LEDs indicate if the port is receiving a Framelock signal or sending
a Framelock signal. The ports auto-configure so different nodes in the cluster may
have different LED configurations. See Table 2 for the meaning of the LEDs.

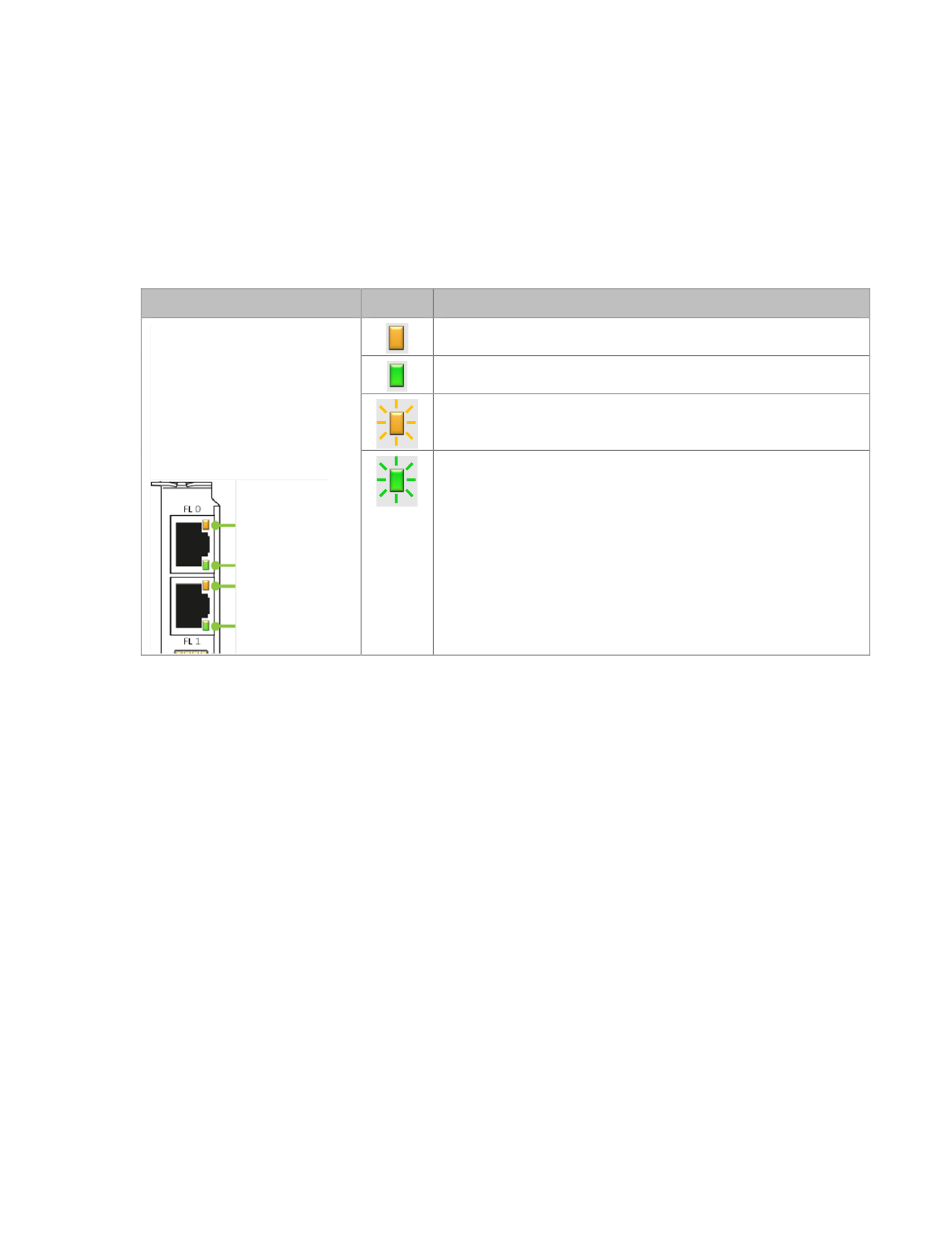

Table 2. Framelock LED Status
Framelock LEDs
Framelock 0 Out
Framelock 0 In
Framelock 1 Out
Framelock 1 In
When connecting the Framelock ports, the timing server sends outputs on both
ports and all the other nodes configure themselves to one output and one input
when they connect to the timing server.
NVIDIA CONFIDENTIAL
Quadro Sync II
Status Meaning
Port is an output, but no signal is present.
Port is an input, but no signal is detected.
Port is an output sending a signal; the frequency of the
blinking is the refresh rate of the signal.
Port is an input and receiving a signal, the frequency of
the blinking is the refresh rate of the signal.
