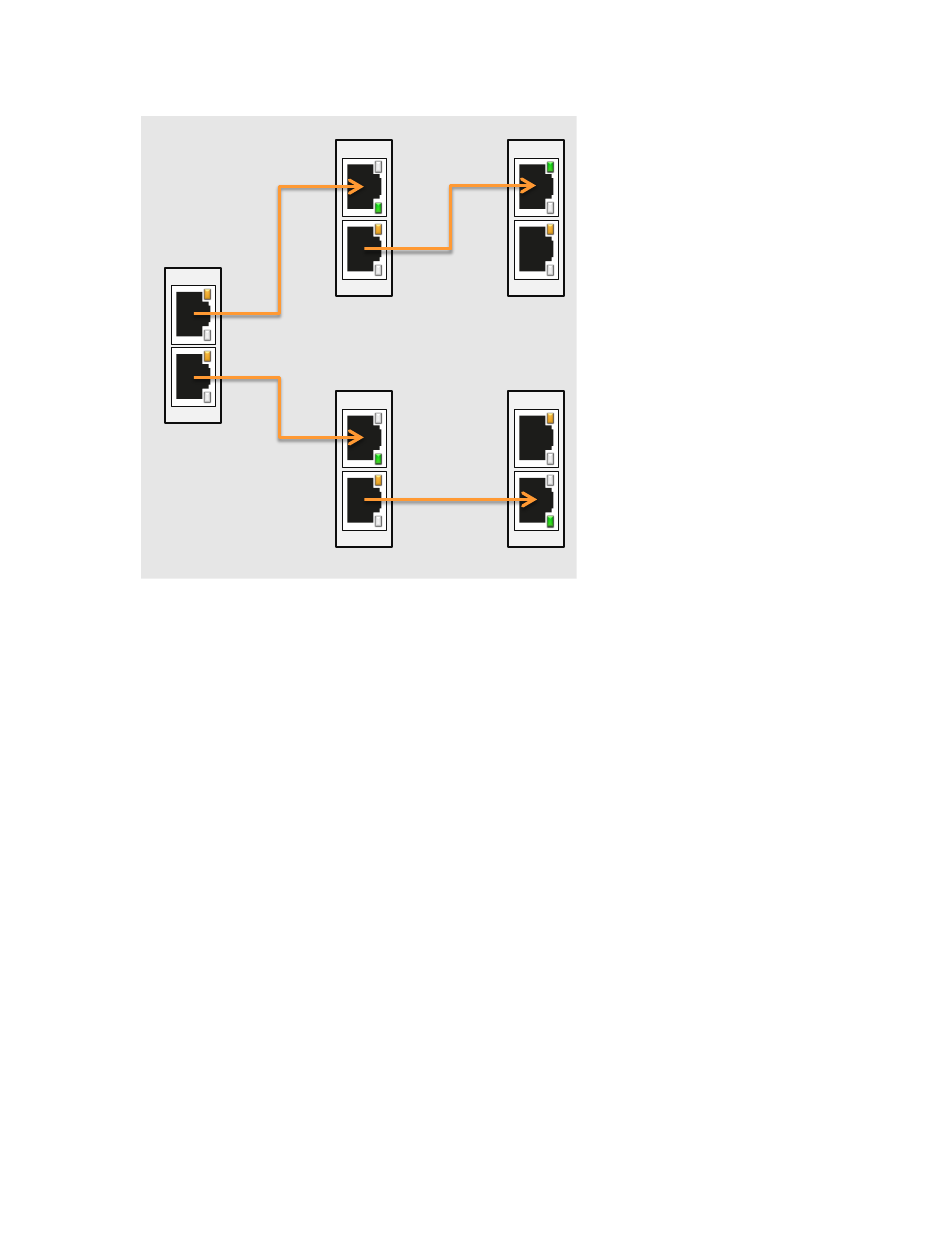

Figure 4. Framelock Connections on Timing Server
Timing Server
FL 0
FL 1

Visualization Cluster Setup Order

When configuring a visualization cluster, the order of operations for configuration
is important. It is recommended to enable framelock last, after any other driver
configuration, for example:
1. Start with the Timing Server
a. If using a G-SYNC display, disable G-SYNC.
b. Enable stereo with the correct stereo mode if using stereo.
c. If using Mosaic, configure Mosaic before enabling framelock.
d. Enable framelock as the timing server.
2. Configure each client machine.
a. If using a G-SYNC display, disable G-SYNC.
b. Enable stereo with the correct stereo mode if using stereo.
c. If using Mosaic, configure Mosaic before enabling framelock.
d. Enable framelock on each machine as timing clients.
NVIDIA CONFIDENTIAL
Quadro Sync II
Client #1 Client #2
FL 0
FL 1
FL 0
FL 1
Client #3 Client #4
Synchronization Configuration
FL 0
FL 1
FL 0
FL 1
DU-08348-001_v07 | 9
