Front Runner FALF002 Installation Instructions Manual

Front Runner FALF002 Installation Instructions Manual

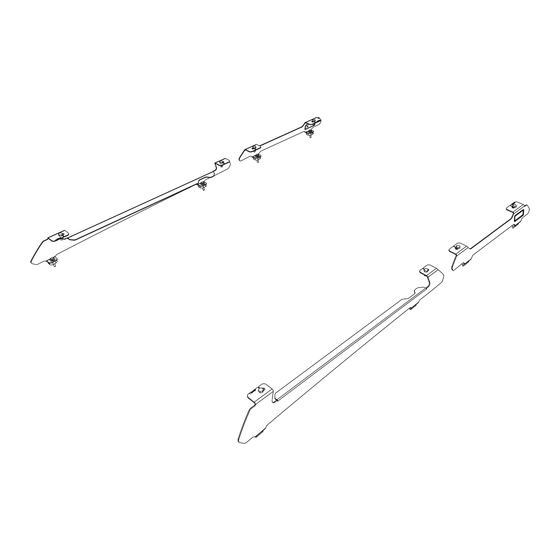

Land rover freelander 2006–2014 foot rail

Advertisement

Quick Links

front runner
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
FALF002_REV_A00
LAND ROVER FREELANDER
(2006–2014) FOOT RAIL
READ ME !
Thank you for purchasing a Front Runner Land Rover Freelander (2006 - 2014) Foot Rail.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
Please call us if you have any questions about the installation of this product.
1
FALF002
© 2021 FRONT RUNNER VEHICLE OUTFITTERS
ENG

Advertisement

loading
Need help?

Need help?

Do you have a question about the FALF002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Front Runner FALF002

  • Page 1 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
  • Page 2: Tools Needed

    M8x20 Hex Bolt 7.5mm M8X16X1.6 Flat Washer M8 Nyloc Nut Panel 10mm Spacer Silicone Tool M6x19 Flat Washer M6 Spring Washer M6x35 Hex Bolt 6mm Spacer M8 Nut Cap M6 Nut Cap FIGURE 1.1 FALF002_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 3 Slide the 6mm Spacer (Item 10) into the opening of the ditch mouling after all holes has been drilled, make sure the notch is facing outwards as shown. Clip the ditch moulding back into place. FALF002_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 4 Hex Bolts and secure the Foot Rails, using 13mm M6x19x1 Flat Washers, M6 Spring Washers & M6x35 Hex Bolts (Items 7, 8 & 9) Place M6 Nut Caps on all Hex Bolts (Item 12). FALF002_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 5 M8 x 20 Hex Bolts, M8 x 16 x 1.6SS Flat Washers and M8 Nyloc Nuts (Items 3, 4 & 5). 13mm Center the rack and tighten fully. Use M8 nut caps (Items 11) to finish off the nuts. © 2021 FRONT RUNNER VEHICLE OUTFITTERS FALF002_REV_A03...
  • Page 6 IMPORTANT! FRONT RUNNER RACK KITS OFTEN HAVE A HIGHER LOAD RATING THAN THE VEHICLES THEY ARE MOUNTED TO. PLEASE REFER TO YOUR SPECIFIC VEHICLE MANUFACTURER FOR A RECOMMENDED ROOF RATING. FRONT RUNNER CANNOT BE RESPONSIBLE FOR IMPROPER LOADING BEYOND THE VEHICLE MANUFACTURER'S STATED LOAD CAPACITY.

This manual is also suitable for:

Krlf002t
