SmartPAC PRO Program Mode Setup
This section shows how to make settings in the SmartPAC PRO Program mode. The Program Mode
settings, which are entered via the Main Program Menu (see Figure 6), control the SmartPAC PRO
operation for an individual tool.
1. From the Main Program Menu select the "Tool Manager" button. On the Tool Manager screen
select the tool number you plan to program to function with the Unist SmartFlow® controller
and press the "Edit Tool" button on the right side of the screen. Select the "OILER CONTROL"
button from the Tool menu (see Figure 12).
2. The Unist SmartFlow Job number screen will display (see Figure 13), these job numbers are
setup in the Unist system. This screen will tell the SmartFlow system which job to load for this
tool.
3. Once you have selected the Job number press BACK to return to the main tool menu.

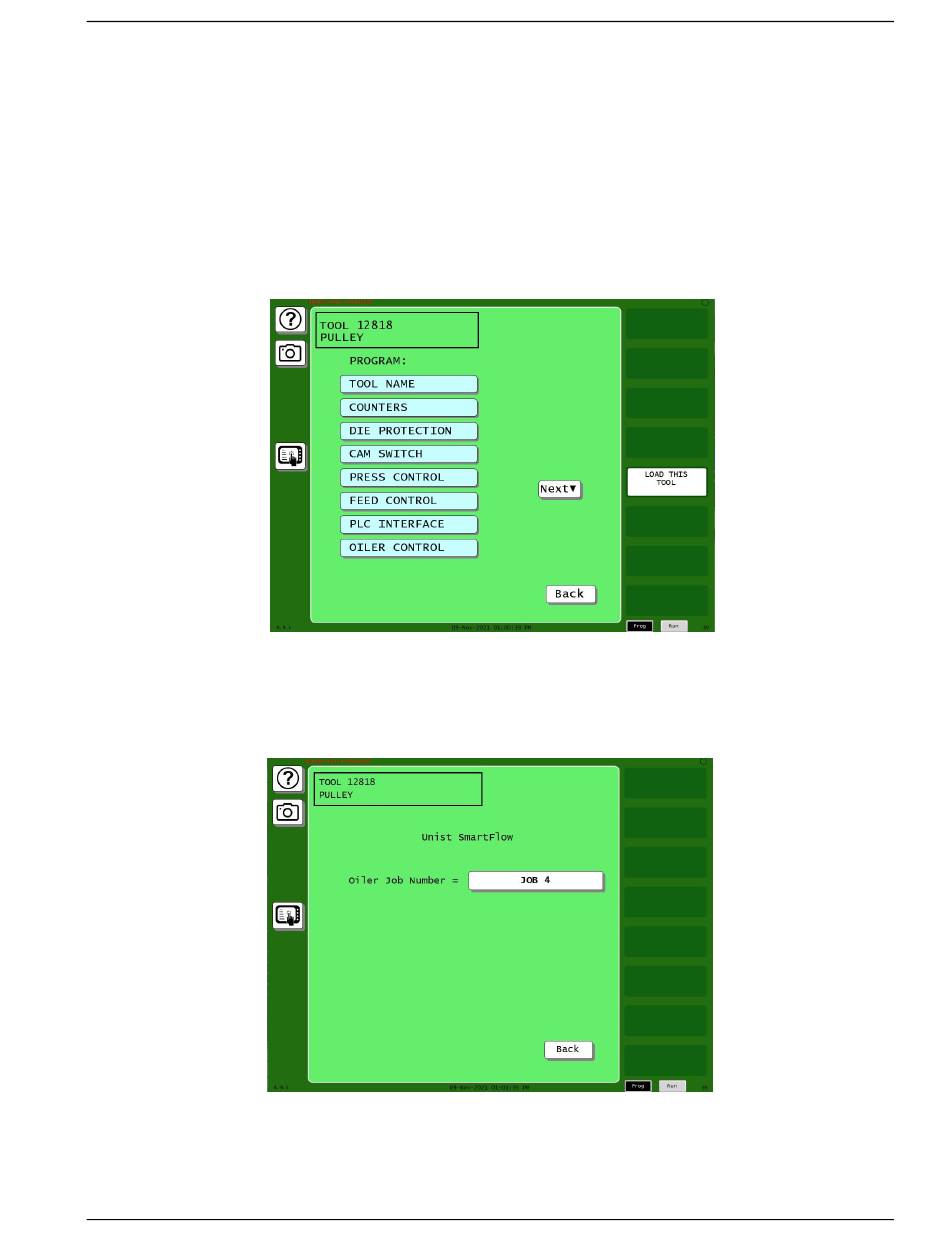

Figure 12. Tool Program Menu showing Oiler Control
Figure 13. Unist SmartFlow Job Number Screen
