Unist SmartFlow Instruction Sheet page 2

1137400
Unist SmartFlow
To use a Unist SmartFlow® controller with a SmartPAC PRO, do the following:
1. Connect the Unist Controller to your Local Area Network via the RJ-45 port which is located
on the top left of the circuit board (see Figure 3). Use a standard CAT-5 ethernet cable to
connect to this port.

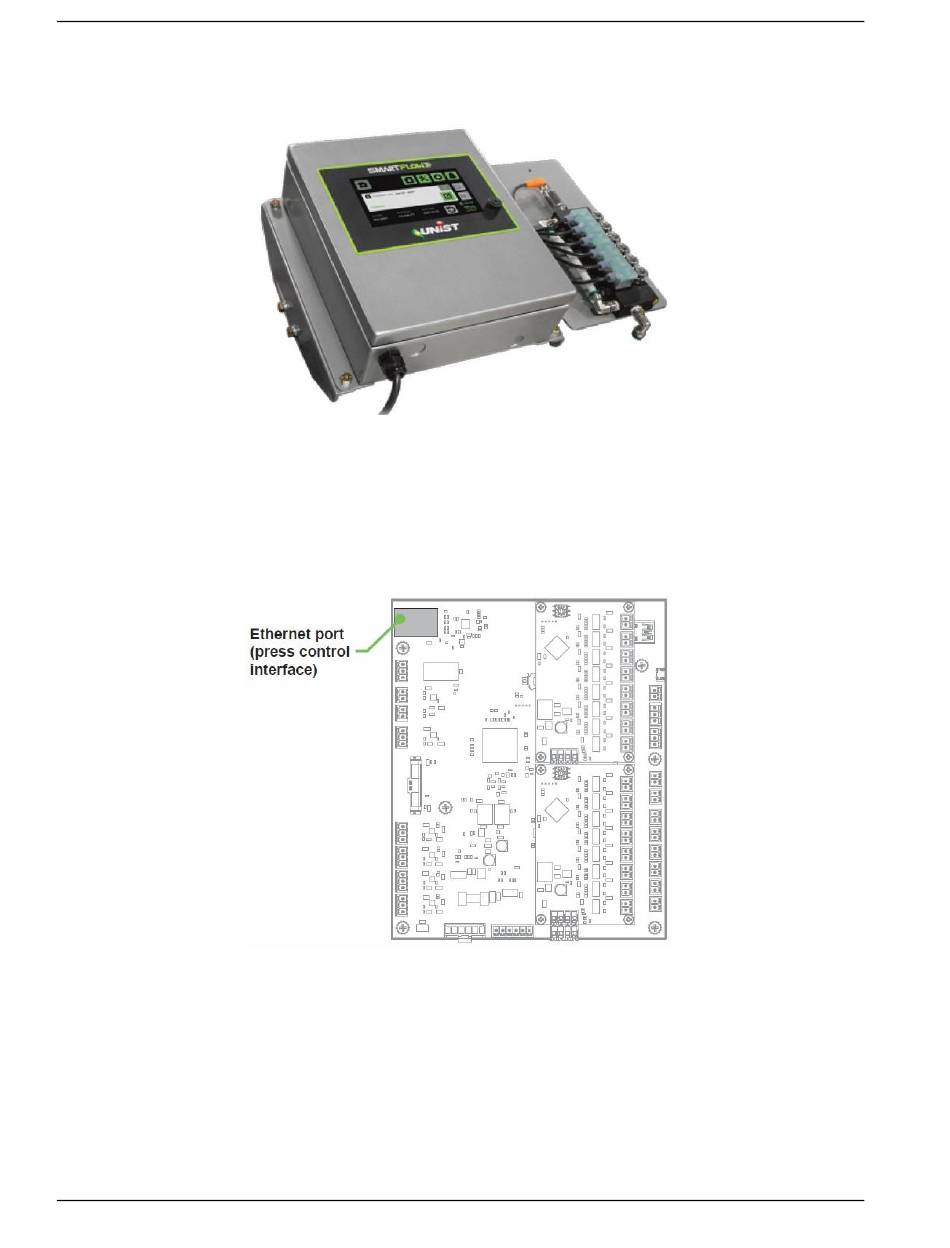

Figure 3. Unist SmartFlow® Controller Board Showing Ethernet Connector
2. Next, verify that the jumper JP2 is in place on the controller circuit board and is connecting
both pins of JP2 as shown in Figure 4 (When communications are disabled this jumper is
inserted onto only 1 pin of JP2).
Page 2
Oiler Setup
®
Figure 2. Unist SmartFlow® Controller
USB Backup and Restore Instruction Sheet
