FS-2061, FS-2121
100 V LINE P. A. AMPLIFIERS
N Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-2061 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FONESTAR FS-2061

Summary of Contents for FONESTAR FS-2061

  • Page 1 FS-2061, FS-2121 100 V LINE P. A. AMPLIFIERS N Instruction manual...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Controls And Functions

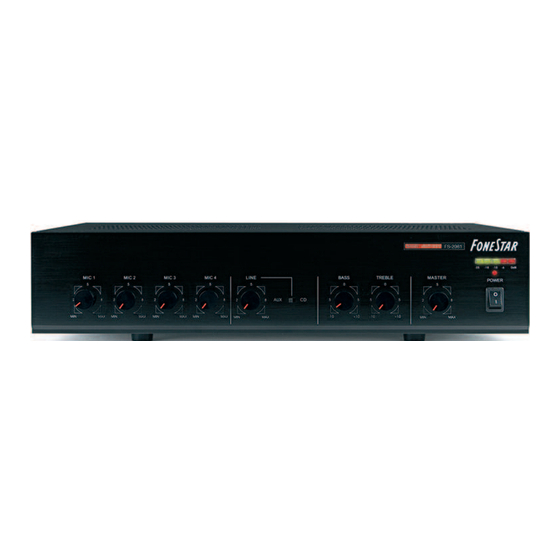

    DESCRIPTION Amplifier with phantom power supply, priority and chimes. Potencia: FS-2061 = 90 W maximum, 60 W RMS. FS-2121 = 180 W maximum, 120 W RMS. CONTROLS AND FUNCTIONS FRONT PANEL Volume control for microphone 1. Bass control. Volume control for microphone 2.
  • Page 5 NOTE: the connection cable to the battery must have an in series safety fuse. The fuse must be of the quick cut off type, e.g. F8A (FS-2061) or F15A (FS-2121). When you connect the battery make sure you respect the polarity.
  • Page 6 DIN 5 connecter must be used. The priority and the musical tones are activated by a contact which is between PIN 4 and PIN 5. These characteristics are available with the FONESTAR microphone, mod. FDM-625-DIN5. CONNECTORS...

  • Page 7: Speaker Connection

    2.- The SPEECH ONLY output is active when the priority terminals are short circuited on the back panel or with a microphone. Short circuiting PIN4 and PIN5 on the DIN 5 connector from the MIC 1 to MIC 4 inputs with a FDM-625-DIN5 model microphone. A 110 V line connection also available. This second zone is useful when you want a speaker zone which will only occasionally receive announcements.

  • Page 8: Connection Example

    CONNECTION EXAMPLE BLOCK DIAGRAM - 8 -...

  • Page 9: Specifications

    SPECIFICATIONS FS-2061 FS-2121 CHARACTERISTICS P. A. Amplifier. Phantom power. Priority paging. Chimes. 2-input auxiliary selector. POWER 90 W maximum, 60 W RMS 180 W maximum, 120 W RMS RESPONSE Microphones: 60-15 000 Hz ±3 dB Aux/CD: 50-20 000 Hz ±3 dB Tel.

  • Page 10: Declaration Of Conformity

    This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.

This manual is also suitable for:

Fs-2121
