- Page 1 FS-75U AMPLIFIER WITH USB/MP3 PLAYER AND SIREN N Instruction manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

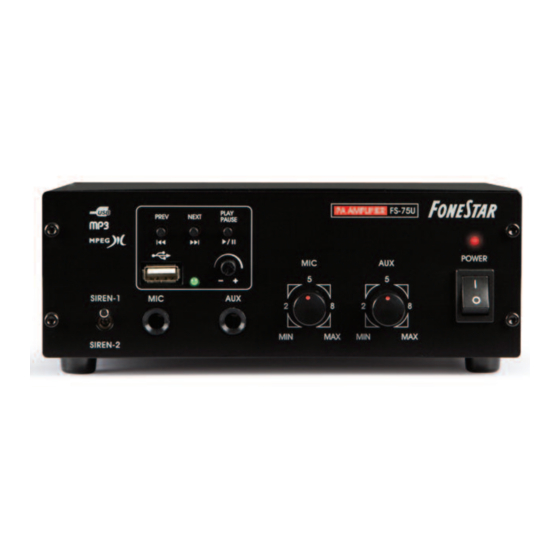

CONTROLS AND FUNCTIONS FRONT PANEL 1.- USB port for USB memory connections. 2.- PREV: to choose the previous track. One long press of this button lowers the volume on the MP3 player. 3.- NEXT: to choose the next rack. One long press of this button raises the volume on the MP3 player. Note: the volume selected using the PREV and NEXT buttons is maintained after the power supply is disconnected. -
Page 5: Speaker Connection
4.- Speaker connection terminals. The output impedance is from 4 to 8 Ω. Connect the brown cable to the terminal marked with + (speaker) and the white cable to the terminal marked with – (speaker). CONNECTION Connect the cables supplied in the screw terminals on the back panel of the amplifier. SPEAKER CONNECTION Connect the output terminals to the speaker/speakers, the brown cable (+) to the positive terminal and the white (-) to the negative terminal. -
Page 6: Installation
INSTALLATION Install the amplifier with the assembly mounts supplied. INSTRUCTIONS FOR USE Before turning the amplifier on or off place the volume controls at the minimum. Make the connections with the amplifier turned off. Turn the amplifier on. Adjust the volume while there is a signal in the input that is being adjusted. USB/MP3 PLAYER The USB port allows USB storage device connections, such as USB memories and hard discs. -
Page 7: Specifications
SPECIFICATIONS FS-75U CHARACTERISTICS Amplifier with USB/MP3 player and siren. Vehicle assembly. POWER 60 W maximum, 40 W RMS RESPONSE 80-12 000 Hz DISTORSION Less than 3% at 1 kHz INPUTS 1 unbalanced mic., 6.3 mm mono jack 10 000 Ω 4 mV 1 auxiliary, 6.3 mm stereo jack and 2 x RCA... -
Page 8: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
