- Page 1 FS-2601E MONO POWER AMPLIFIER N Instruction manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions

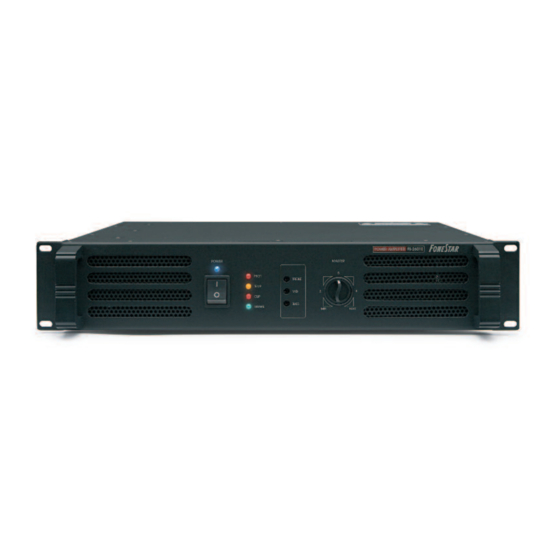

DESCRIPTION Monaural power amplifier, 700 W maximum, 600 W RMS with low impedance 4-8 Ω speaker outputs and high impedance 100 and 70 V lines. Suitable for P.A. and sound system applications. Balanced auxiliary line level signal input and bridge output, both with XLR and 6.3 mm stereo jack connectors. Automatic compression function for the input signal, avoiding distortion in the output when the input signal has high levels and automatically decreases the output signal if the temperature in the amp exceeds certain limits. -
Page 5: Back Panel
BACK PANEL 1.- BREAKER: resettable fuse, 6 A. When the amp is overloaded or there is a surge, the fuse will blow to avoid damage. It is reset by pressing it. 2.- COM: speaker output common terminal (mass). NOT : do not connect to the earth. 3.- 4 Ω, 8 Ω, 70 V and 100 V: speaker output terminals. -
Page 6: Resettable Fuse
Connection example of a preamplifier and two power amps in cascade with speakers connected in high impedance 100 V line INSTRUCTIONS FOR USE ON AND OFF Before switching the power amplifier on, check that the output volume control is at its minimum. Switch on the rest of the audio system, and lastly switch on the power amp and adjust the output volume. -
Page 7: Specifications
SPECIFICATIONS FS-2601E CHARACTERISTICS Mono power amplifier. POWER 700 W maximum, 600 W RMS RESPONSE 50-22 000 Hz ±3 dB DISTORTION Harmonic: < 0.5% INPUTS 1 balanced auxiliary line, XLR and 6.3 mm jack 20,000 Ω, 1 V OUTPUTS 1 balanced auxiliary line, XLR and 6.3 mm jack... -
Page 8: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
