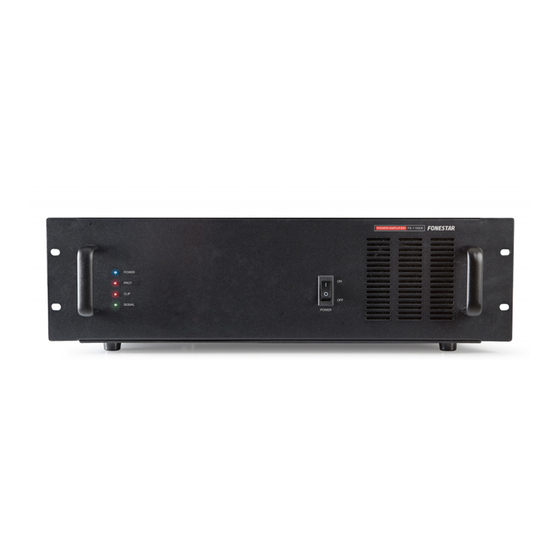

FONESTAR FS-11000E Instruction Manual

FONESTAR FS-11000E Instruction Manual

Pa power amplifier

Advertisement

Quick Links

FS-11000
PA POWER AMPLIFIER
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-11000E and is the answer not in the manual?

Questions and answers

Summary of Contents for FONESTAR FS-11000E

  • Page 1 FS-11000 PA POWER AMPLIFIER INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
  • Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
  • Page 4 DESCRIPTION - Mono power amplifier 1,250 W maximum, 1,000 W RMS with low impedance loudspeaker output 4 Ω and 100 and 70 V lines. Specially suitable for PA and audio system applications. - Two protection circuits: for temperature and short circuit in the output, activated when an anomoly is detected in the operating, cutting off the audio output to avoid damage.
  • Page 5 - Once the connections have been made according to your needs, connect the equipment to the mains and switch it on. After use, do not forget to switch off and disconnect the equipment from the mains. Example of a connection of a mixer and two power amplifiers FS-11000E in cascade with loudspeakers connected in 100 V line...
  • Page 6 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
