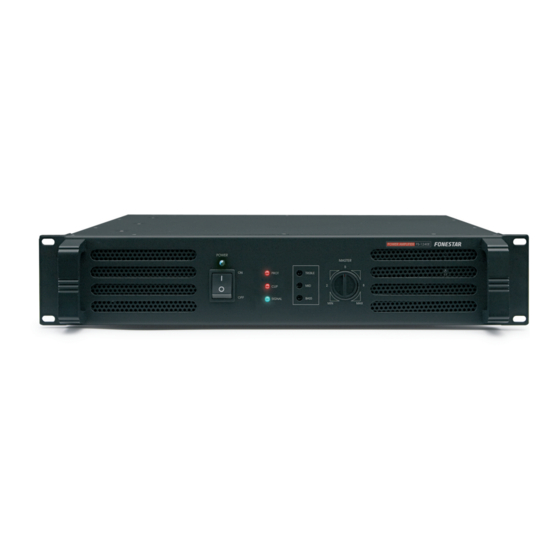

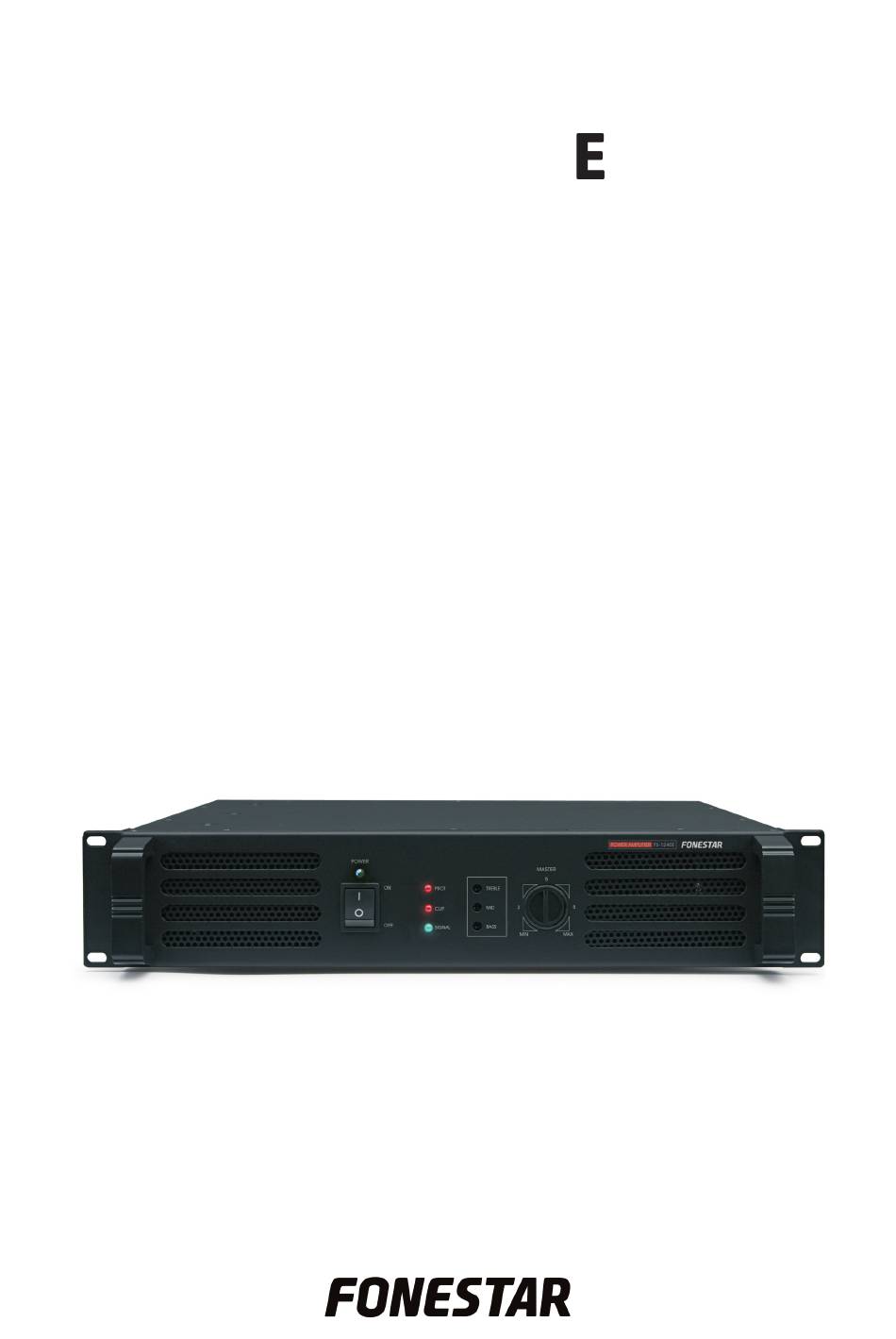

- Page 1 FS-1240 MONO POWER AMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel
DESCRIPTION - Mono power amplifier, 300 W max., 240 W RMS with low impedance loudspeaker output 4 y 8 Ω and 100 and 70 V lines. Specially designed for PA and sound systems. - Automatic compression function of input signal which avoids output signal distortion when the input signal is of a high level and automatically reduces the output signal if the temperature of the amplifier exceeds certain limits. -
Page 5: Rear Panel
REAR PANEL Ventilator. DC INPUT: power supply terminals 24 V DC. To operate the power amplifier use 24 V DC power supply, batteries, etc. Respect the polarity of the source of the external power supply. OUTPUTS: loudspeaker output terminals. For the connection of low impedance loudspeakers 4 or 8 Ω... - Page 6 - Once the connections are made according to your needs, connect the devices to the mains and turn them on. After use, do not forget to switch off and disconnect the devices from the mains. Example of connection of preamplifier and two power amplifiers FS-1240E in cascade with loudspeakers connected in 100 V line...
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS FS-1240E CHARACTERISTICS Mono power amplifier. POWER 300 W maximum, 240 W RMS RESPONSE 50-22,000 Hz ±3 dB DISTORTION Harmonic: < 0.5 % INPUTS 1 balanced aux line, XLR and 6.3 mm jack 20,000 Ω, 1 V OUTPUTS 1 balanced aux line, XLR and 6.3 mm jack... -
Page 8: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los... - Page 9 - 9 -...
