- Page 1 FS-4256 4-CHANNEL POWER AMPLIFIER WITH 100 V LINE OUTPUT INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -

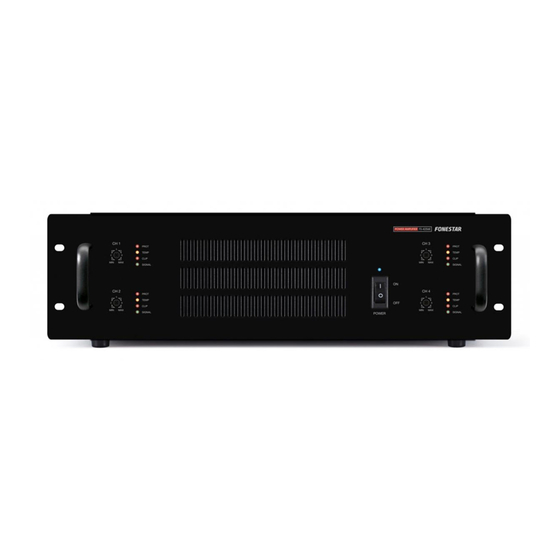

Page 4: Controls And Functions Front Panel
DESCRIPTION - 4-channel power amp. - 4 x 250 W RMS. Loudspeaker output 4 and 8 Ω, 100 and 70 V lines. CONTROLS AND FUNCTIONS FRONT PANEL CH 1-4: volume control knobs for channel 1 to 4. It is recommended not to raise these volume controls to their maximum. -
Page 5: Parallel Mode
BREAKER: resettable 10 A fuse. When the power amp. is overloaded or there is a surge, the fuse will be cut off to avoid damage. It is reset by pressing it. Power supply input 230/115 V AC. Power supply voltage selector. LINK: balanced signal output for channels 1 and 2 for connecting several devices in cascade. -
Page 6: Stereo Mode
STEREO MODE Place the selectors located in the rear part of the amplifier in the STEREO position. By doing so, the 4 channels will operate independently. Connect the 4 inputs and the 4 outputs of the loudspeakers. The channel volume is adjusted separately. BRIDGE MODE (BRIDGED) Place the selectors located in the rear part of the amplifier in the BRIDGED position. -
Page 7: Resettable Fuse
If the fuse is cut off, due to a surge or excessive consumption, switch the power amp off, check what has caused the fuse to be cut off, let it recover for a few moments and reset the fuse BREAKER by pressing it. TECHNICAL SPECIFICATIONS FS-4256E CHARACTERISTICS 4-channel power amplifier. -
Page 8: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
