- Page 1 FS-2155 2-CHANNEL POWER AMPLIFIER WITH 100 V LINE OUTPUT INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

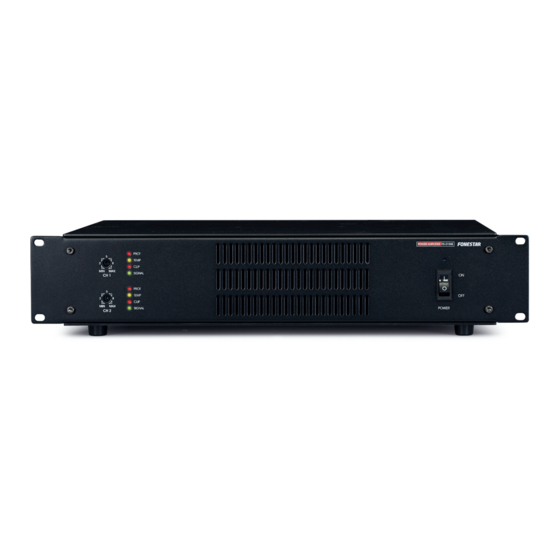

DESCRIPTION - 2-channel power amplifier. - 2 x 150 W RMS. Loudspeaker output 4 and 8 Ω, 100 and 70 V lines. CONTROLS AND FUNCTIONS FRONT PANEL CH 1/CH 2: volume control knobs for channels 1 and 2. It is recommended that you do not raise these volume controls to their maximum. -
Page 5: Parallel Mode
Power supply voltage selector. GND: earth connection terminal. OUTPUTS: loudspeaker output terminals. Use just one output depending on the charge impedance: 4 or 8 Ω low impedance lines or 70 or 100 V high impedance lines. Connect the loudspeakers between the COM terminal and one of the output terminals: 4 Ω, 8 Ω, 70 V or 100 V. -
Page 6: Stereo Mode
STEREO MODE Place the switch located on the rear part of the amplifier in the STEREO position. In this mode, the two channels operate independently. Connect the two inputs and the 2 loudspeaker outputs. The channel volume adjusts itself separately. BRIDGE MODE Place the switch located on the rear part of the amplifier in the BRIDGE positon. -
Page 7: Resettable Fuse
If the fuse is cut off, due to a surge or excessive consumption, switch the power amp off, check what has caused the fuse to be cut off, let it rest for a few moments and reset the BREAKER fuse by pressing it. TECHNICAL SPECIFICATIONS FS-2155E CHARACTERISTICS 2-channel power amplifier. -
Page 8: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
