- Page 1 FS-2503 2-CHANNEL POWER AMPLIFIER WITH 100 V LINE OUTPUT INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

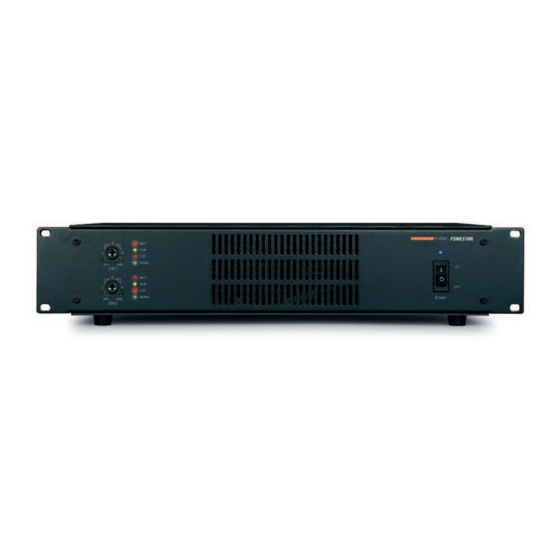

DESCRIPTION - 2-channel power amp. - 2 x 500 W RMS. Loudspeaker output 4 and 8 Ω, 100 and 70 V lines. CONTROLS AND FUNCTIONS FRONT PANEL CH 1/CH 2: volume control wheels for channels 1 and 2. It is recommended that you do not raise these volume controls to their maximum. - Page 5 Operating mode selector. Power supply input 230/115 V AC. BREAKER: resettable fuse, 10 A. When the power amp is overloaded or there is a surge, the fuse will be cut off to avoid damage. It is reset by pressing it. Power supply voltage selector.
- Page 6 STEREO MODE (STEREO) Move the switch on the back of the power amp to the STEREO position. In this mode, the 2 channels will work independently. Connect the 2 inputs and the 2 speaker outputs. The volume of the channels is adjusted separately. BRIDGE MODE (BRIDGED) Move the switch on the back of the power amplifier to the BRIDGED position.
-
Page 7: Resettable Fuse
If the fuse is cut off, due to a surge or excessive consumption, switch the power amp off, check what has caused the fuse to be cut off, let it recover for a while and reset the BREAKER fuse by pressing it. SPECIFICACIONES FS-2503E CHARACTERISTICS 2-channel power amp. -
Page 8: Declaracion De Conformidad
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
