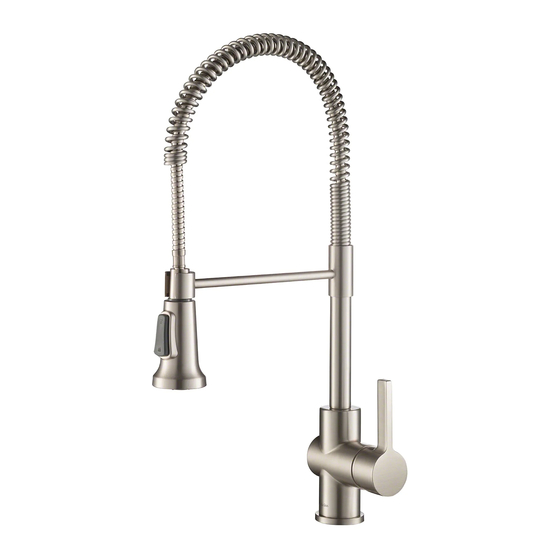

- Page 1 INSTALLATION MANUAL Britt™ Sensor Commercial Pull Down Kitchen Faucet KSF-1691 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. March 13, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...
-
Page 3: Prior To Installation
Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·... - Page 4 Diagram and Parts List J2 J3 A. Spray Head I. Sensor Control Box B. Faucet Body J. Battery Pack C. Washers J1. Battery Pack D. Mounting Nut J2. Screw E. Screws J3. Anchor F. Weight K. Battery G. Weight Clip L.
-
Page 5: Faucet Dimensions
Faucet Dimensions 10 5/8" 4" [268.9mm] [101.0mm] 8 3/8" [213.6mm] Ø2 1/8" [54.2mm] 3/8” compression Installer Tip: Shut off main water supply before installing new faucet. -
Page 6: Step 1: Installing The Faucet
Step 1: Installing the faucet Shut off the water supply. Insert faucet body (B) through the hole in the sink. Step 2: Securing the faucet assembly Secure the faucet (B) to the countertop using the washers (C) and mounting nut (D) provided. Hand tighten the nut (D) onto the faucet assembly. - Page 7 Step 3: Installing the sensor control box Install the data cable (1) to the control box connection (2). Ensure the arrows on the data cable and control box connection are aligned to one another to ensure proper installation. Ensure they are tightly connected by firmly pushing together.
-
Page 8: Step 5: Installing The Counterweight
Step 5: Installing the counterweight Install the weight clip (G) at the point of the hose marking "weight here". Insert the weight (F) onto the weight clip (G) by sliding it down onto the weight clip (G). Step 6: Installing the battery pack To open the battery housing, squeeze the tabs (1) on the cover (2), then remove the cover (2). - Page 9 Step 7: Installing the battery pack Drill a hole in the wall using a 6mm (1/4 in.) diameter drill bit. Install the battery pack (J1) using the molly anchor (J3) and screw (J2) provided. Insert the battery pack cable (1) into the control box connection (2).
- Page 10 Step 9: Flush faucet Flushing and checking for leaks: After the installation is complete, unscrew and remove the spray head in order to flush the line. Turn on the water supply and allow both hot and cold water to run for at least one minute each. This flushes away any debris that could cause damage to internal parts.
-
Page 11: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Spray Head SFS, MB, SFACB** KP27195 2. Sprayer Washer KP27208 3. Inverter KP27242 BL, GR** 4. Spray Hose BLMB, GRSFS, KP27244 BLSFACB* SFS, MB, SFACB** 5. Sprayer Support Assembly KP27243 6. -
Page 12: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: Problem 1: Water will not shut off when turning the handle to the OFF position. This indicates that the cartridge But when you turn the handle When you turn the handle to is damaged. - Page 13 Problem 4: The sensor is not activating the water flow. When you turn the handle to However, when you move your Check whether the switch Hexagon Nut the full on position, the water hand in front of the sensor, the button (1) is tight, if it is will turn on.
