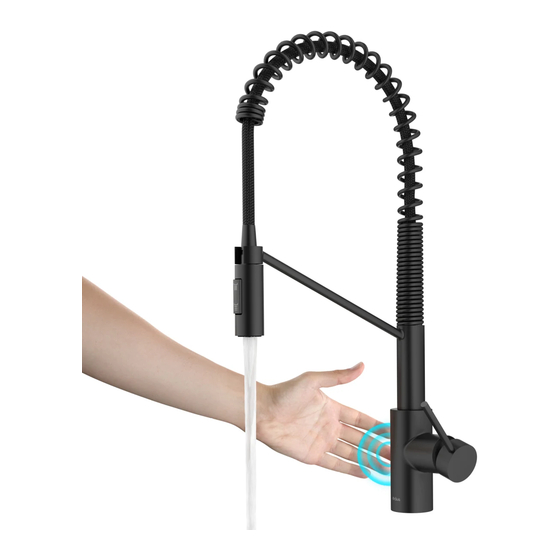

- Page 1 INSTALLATION MANUAL Oletto™ Sensor Commercial Pull Down Kitchen Faucet KSF-2631 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. March 13, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...
- Page 3 Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·...
- Page 4 Diagram and Parts List K2 K3 A. Spray Head I. Sensor Control Box B. Faucet Body J. Brass Check Valve C. Escutcheon K. Battery Pack D. Gasket K1. Battery Pack E. Easy Install Assembly K2. Screw F. Weight K3. Anchor G.
-
Page 5: Faucet Dimensions
Faucet Dimensions 10 1/4'' 11'' 10 7/8'' [279.0mm] [275.0mm] [259.2mm] 9 1/8'' 9 1/8'' [233.2mm] [233.2mm] 2 1/2'' Ø2 1/8'' [62.5mm] [53.0mm] 3/8” compression Installer Tip: Shut off main water supply before installing new faucet. - Page 6 Step 1a: Installing the easy install assembly (without escutcheon) Shut off the water supply. Remove the old faucet. Clean the mounting surface. Check for the proper thickness of the sink. Insert the base (a) into the sink. If your model does have a escutcheon, skip to step 1 b.
- Page 7 Step 2: Installing the easy install assembly Fig 1 Fig 2 Fig 4 Fig 3 Press the base (a) and escutcheon (C) so that they can not move, then turn the screws with the provided hex wrench (M, HEX: 6.0mm) clockwise, as shown Fig 1. When the mounting plates (b) make contact with the sink (1), continue to turn the screw with the provided hex wrench (M, HEX: 6.0mm) clockwise, as shown Fig 2, until the base (a) is completely tightened and secured, as shown Fig.4.
-
Page 8: Step 3: Installing The Faucet
Step 3: Installing the faucet Insert the hose (1), supply lines (2) and quick connect hose (3) one by one through the hole of the base (a). Carefully insert the hoses into the base. Place the faucet assembly onto the base (a) as shown in the above figure. Secure the faucet assembly (B) by tightening the set screw with the provided hex wrench (N, Hex: 2.5 mm). - Page 9 Step 4: Installing the sensor control box Install the data cable (1) to the control box connection (2). Ensure the arrows on the data cable and control box connection are aligned to one another to ensure proper installation. Ensure they are tightly connected by firmly pushing together.
-
Page 10: Step 6: Installing The Counterweight
Step 6: Installing the counterweight Install the weight clip (G) at the point of the hose marking "weight here". Insert the weight (F) onto the weight clip (G) by sliding it down onto the weight clip (G). Step 7: Installing the battery pack To open the battery housing, squeeze the tabs (1) on the cover (2), then remove the cover (2). -
Page 11: Step 8: Installing The Battery Pack
Step 8: Installing the battery pack Drill a hole in the wall using a 6mm (1/4 in.) diameter drill bit. Install the battery pack (K1) using the molly anchor (K3) and screw (K2) provided. Insert the battery pack cable (1) into the control box connection (2). - Page 12 Step 10: Flush faucet Flushing and checking for leaks: After the installation is complete, unscrew and remove the spray head in order to flush the line. Turn on the water supply and allow both hot and cold water to run for at least one minute each. This flushes away any debris that could cause damage to internal parts.
-
Page 13: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Spray Head SFS, MB, SFACB** KP27250 2. Washer KP27251 3. Sprayer Hose BLMB, GRSFS, KP27252 BLSFACB* 4. Spring Assembly SFS, MB, SFACB** KP27253 5. Inverter BL, GR** KP27254 6. O-ring KP27255 7. -
Page 14: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: Problem 1: Water will not shut off when turning the handle to the OFF position. This indicates that the cartridge But when you turn the handle When you turn the handle to is damaged. - Page 15 Problem 4: The sensor is not activating the water flow. When you turn the handle to However, when you move your Check whether the switch the full on position, the water hand in front of the sensor, the button (1) is tight, if it is will turn on.
- Page 16 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 17 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 18 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
