Advantech EKI-2705G-1GPI Startup Manual

EKI-2705G-1GPI/EKI-2705E-1GPI
Industrial Ethernet Switch
Startup Manual
Packing List
Before installation, please make sure that the following
items have been shipped:
• 1 x EKI-2705G-1GPI/EKI-2705E-1GPI Ethernet Switch
• 2 x Wall mounting brackets with screws
• 1 x DIN-rail Mounting Bracket and Screws
• 1 EKI-2705G-1GPI/EKI-2705E-1GPI Startup Manual
* If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
User Manual
For more detailed information, please refer to the full manual
which can be found on the Advan- tech's website.
Introduction

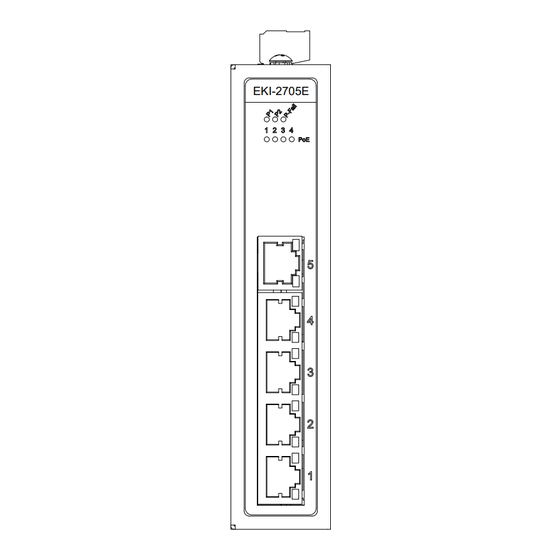

The EKI-2705G-1GPI/EKI-2705E-1GPI supports 24-48V
dundant power input and is secured with a double protection
mechanism: Power Polarity Reverse Protect and an Overload
Current Fuse. The EKI-2705G-1GPI/EKI-2705E-1GPI
supports up to 4 IEEE 802.3 af/ at PoE ports, and is more
convenient for users to power up their devices. Each port of
the EKI-2705G-1GPI/EKI-2705E-1GPI has two LED's to show
the link status transmission speed. It also provides a relay
output for an event alarm. In the event of a power failure, the
built-in LED will activate the alarm to notify administrators.
Engineers can verify the hardware status by checking the
LED, and make troubleshooting quick and easy. The compact
EKI-2705G-1GPI/EKI-2705E-1GPI comes with IP30 rated
metal housing to help against ingress from dusty industrial
environments.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/products/
For technical support and service:
http://www.advantech.com/support/
This manual is for the EKI-2705.
Part No. 2049270500
Printed in China
Specifications
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x, 802.3ab,
802.3z
• LAN:
- EKI-2705E-1GPI: 4 x 10/100Mbps PoE ports (RJ-45), 1
x 10/100/1000Mbps (RJ45)
- EKI-2705G-1GPI: 4 x 10/100/1000Mbps PoE ports (RJ-
45), 1 x 10/100/1000Mbps (RJ45)
• Ethernet RJ-45: Up to 100 m
• Connectors: 5 x RJ-45
• Switch Architecture: Store and Forward
• Power Input Rating:
- 48V
- 24V
• PoE Output:
- 75° C, Total 60W, per port max. 30W
- 60° C, Total 90W, per port max. 30W
• Power Consumption: Max.2W
• Power Budget: 90W
• Dimensions (W x H x D): 30 x 140 x 95 mm
• Enclosure: IP30
re-
DC
• Operating Temperature: -40 ~ 75° C (-40 ~ 167° F)
• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 10 ~ 95% (non-condensing)
• Storage Humidity: 10 ~ 95% (non-condensing)
• Safety: UL 62368-1
• EMC: FCC Class A, CE
• Warranty: 5 years
• Altitude: Up to 3000m
Company Address
ADVANTECH CO., LTD.
（研華股份有限公司）
1st Edition
No.1, ALLEY 20, LANE 26, RUEIGUANG RD, NEIHU
DISTRICT, TAIPEI 114. TAIWAN
May 2023
, 1.92A
DC
, 4.12A
DC
EKI-2705 Startup Manual 1
