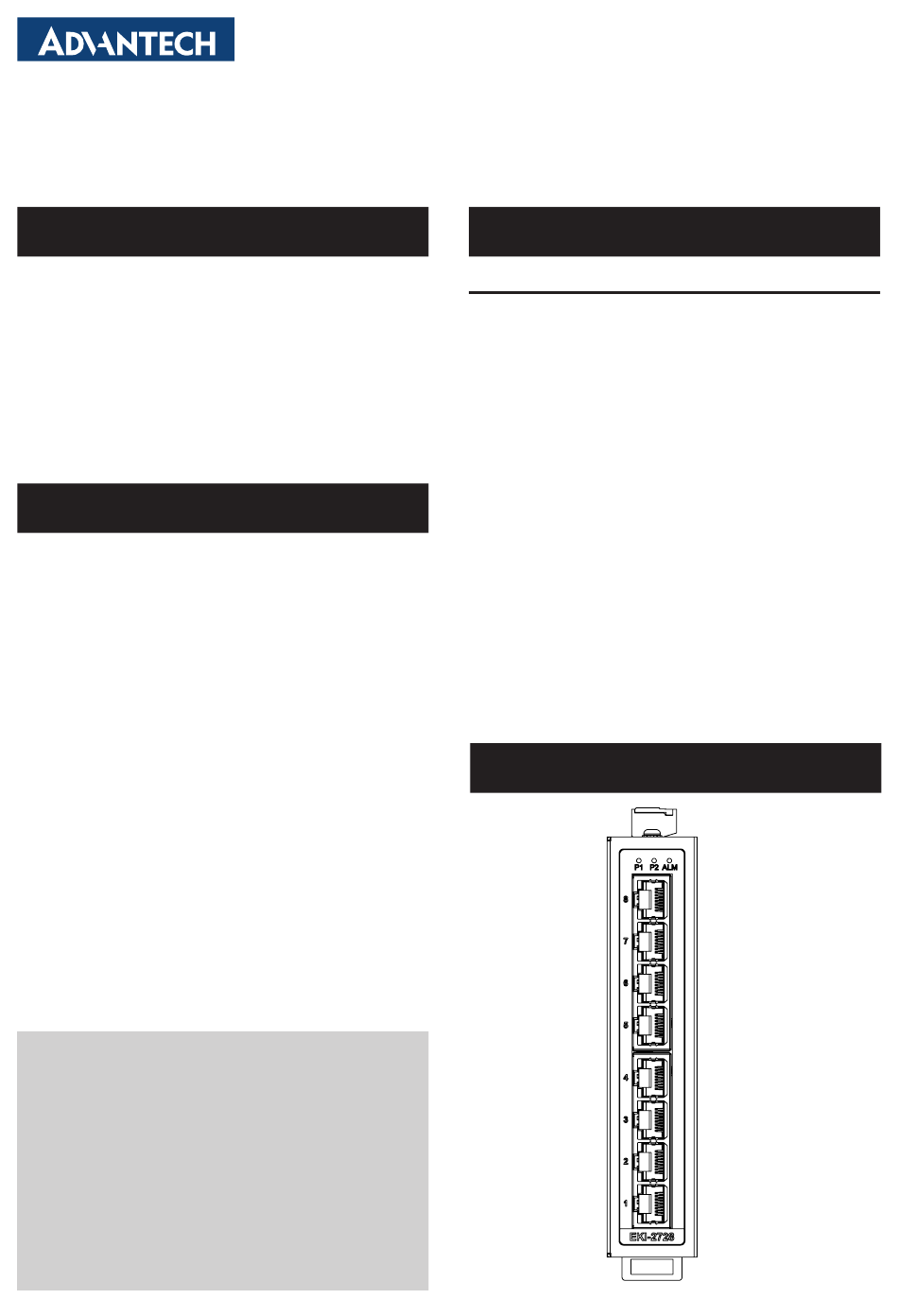

Advantech EKI-2728D Startup Manual

EKI-2728/I-D
Industrial Unmanaged Gigabit Ethernet Switch
Startup Manual
Packing List
Before installation, please make sure that you have re-
ceived the following:
1. 1 x EKI-2728 Industrial Ethernet Switch
2. 2 x Wall Mounting Bracket and 8 x Screws M3x5L
3. 1 x DIN-rail Bracket and 3 x Screws M3x5L
4. 1 x EKI-2728/I Startup Manual
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Introduction
The EKI-2728 supports Gigabit Ethernet and features a +12
to 48 VDC redundant power input design with dual protec-
tion mechanisms: Power Polarity Reverse Protection and
an Overload Current Fuse. The former allows for reverse
power wiring, while the latter protects the system from
overload currents. Each port of the EKI-2728 is equipped
with two LEDs to indicate link status, transmission speed,
and collision status. Additionally, the device includes a relay
output for event alarms. In case of a power failure, a built-in
LED activates to notify administrators. Engineers can easily
verify the hardware status by checking the LEDs, making
troubleshooting quick and simple.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/products/unmanaged-
industrial-ethernet-switches/sub_1-2mlk0j
For technical support and service:
http://www.advantech.com/support/
This startup manual is for EKI-2728/I-D
Part No. 2049272820
Specifications
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x, 802.3ab
• LAN: 10/100/1000Base-T(X)
• Transmission Distance:
Ethernet: Up to 100 m
• Connectors: 8 x 10/100/1000Base-T/TX RJ-45 ports
• LED Indicators: P1, P2, ALM 10/100/1000T (X): Link/
Activity, Duplex/Collision
• Switch Architecture: Store and Forward
• Power Requirement: 12 ~ 48V
with reverse polarity protection
• Power Consumption: Max 3.9W
• Dimensions (W x H x D): 30 x 140 x 95mm
• Operating Temperature:
- EKI-2728: -10 ~ 60°C (14 ~ 140°F)
- EKI-2728I: -40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 10 ~ 95% (non-condensing)
• Storage Humidity: 10 ~ 95% (non-condensing)
• Safety: UL62368
• EMC: CE, FCC
• Warranty: 5 years

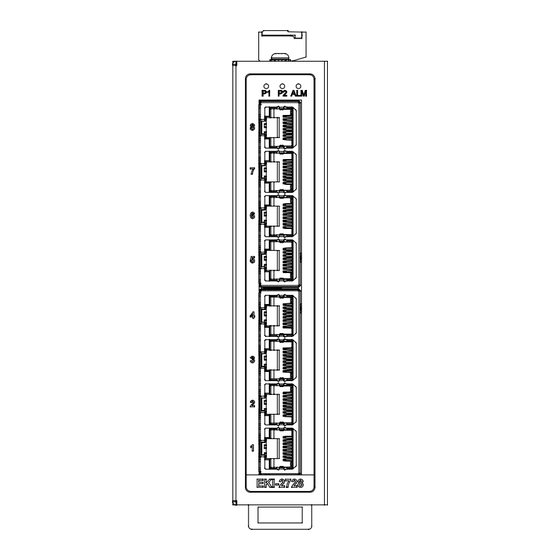

Overview
1st Edition
July 2024
, redundant Power Input
DC
EKI-2728/I-D Startup Manual 1
