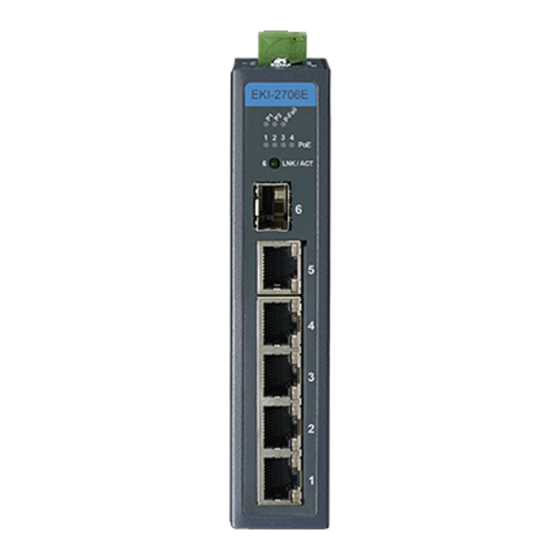

EKI-2706E-1GFP/I&EKI-2706G-1GFP/I
Industrial Unmanaged PoE Switch
Overview
The EKI-2706 series supports 48VDC redundant
power input and is secured with a double protec-
tion mechanism: Power Polarity Reverse Protect
and an Overload Current Resetable Fuse. The
EKI-2706 series supports up to 4 IEEE 802.3 af/
at PoE ports, and is more convenient for users to
power up their devices. Each port of the EKI-2706
has two LED's to show the link status transmis-
sion speed and collision status. It also provides
a relay output for an event alarm. In the event of
a power failure, the built-in LED will activate the
alarm to notify administrators. Engineers can
verify the hardware status by checking the LED,
and make troubleshooting quick and easy. The
compact EKI-2706 comes with IP30 rated metal
housing to help against ingress from dusty indus-
trial environments.
Packing List
Before installation, please make sure that you
have received the following:
• 1 x EKI-2706 Ethernet Switch
• 2 x Wall mounting brackets with screws
• 1 x DIN-rail Mounting Bracket and Screws
• 1 x EKI-2706 Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
User Manual
For more detailed information, please refer to the
full manual which can be found on the Advan-
tech's website.
Notes
For more information on this and other Advan-
tech
products, please visit our websites at:
http://www.advantech.com/products/
For technical support and service:
http://www.advantech.com/support/
This startup manual is for EKI-2706.
Part No: 2009270601
1 Startup Manual
2nd Edition
August 2016
Specifications
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x,
802.1ab, 802.1z
• LAN:
– EKI-2706E-1GFP/I :
4 x 10/100Mbps PoE ports (RJ-45),
1 x 100/1000Mbps(RJ45),1x100/1000Mbps
(SFP)
– EKI-2706G-1GFP/I :
4 x 10/100/1000Mbps PoE ports(RJ-45),
1 x 100/1000Mbps(RJ45),1x100/1000Mbps
(SFP)
• Ethernet RJ-45: Up to 100 m
• SFP: Up to 110 Km (depends on SFP)
• Connectors: 5 x RJ-45, 1 x SFP
• Switch Architecture: Store and Forward
• Power Requirement: 48V
Input with reverse polarity protection.
• Power Consumption: Max. 2W
• Power Budget: 90W
• Dimensions (W x H x D): 30 x 140 x 95 mm
• Enclosure: IP30
• Operating Temperature:
- EKI-2706E-1GFP & EKI-2706G-1GFP:
-10 ~ 60°C (-40 ~ 140°F)
- EKI-2706E-1GFPI & EKI-2706G-1GFPI:
-40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~
185°F)
• Operating Humidity: 10 ~ 95% (non-condens-
ing)
• Storage Humidity: 10 ~ 95% (non-condensing)
• Safety: UL 61010
• EMC: FCC Class A, CE
• Warranty: 5 years
, redundant Power
DC
