Advantech EKI-2706G-2FPI Startup Manual

EKI-2706G-2FPI&EKI-2706G-2GPI
Industrial Unmanaged PoE Switch
Startup Manual
Overview
The EKI-2706G PoE switch is unmanaged Ethernet
switches supporting 4 ports PoE+ (Power over Ethernet)
and compliant with IEEE 802.3at/af standards. It provides
up to 30 watts of power per port and fulfill the power budget
of max.120 watts on system. The switch provides a relay
output for an event alarm which activates the alarm to notify
administrators. Robust design for harsh environment, din
rail mounting and fast startup with plug and work
The EKI-2706G supports IEEE 802.3/802.3u/802.3z/
802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex,
auto-negotiation and MDI/MDI-X auto-sensing to provide an
economical solution for your industrial Ethernet network.
Packing List
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2706G Ethernet Switch
• 1 x DlN-rail mounting brackets with screws
• 1 x EKI-2706G Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
User Manual
For more detailed information, please refer to the full
manual which can be found on the Advantech's website.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the EKI-2706G Series.
Part No. 2049270610
Printed in Taiwan
General
• Compatibility: IEEE 802.3, 802.3u, 802.3z, 802.3ab,
• LAN:
• Ethernet RJ-45: Up to 100 m
• SFP: Up to 110 Km (depends on SFP)
• Connectors:
• Switch Architecture: Store and Forward
• Power Input: 12~48VDC, redundant power
• Power Consumption: Max 4.32W (system)
• Power Budget:
• Dimensions (W x H x D): 46 x 140 x 130 mm
• Enclosure: IP30
• Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 5 ~ 95% (non-condensing)
• Storage Humidity: 5 ~ 95% (non-condensing)
• Safety: LVD EN62368
• EMC: FCC Class A, CE
• Warranty: 5 year
1st Edition
January 2024
Specifications
802.3x, 802.3at/af

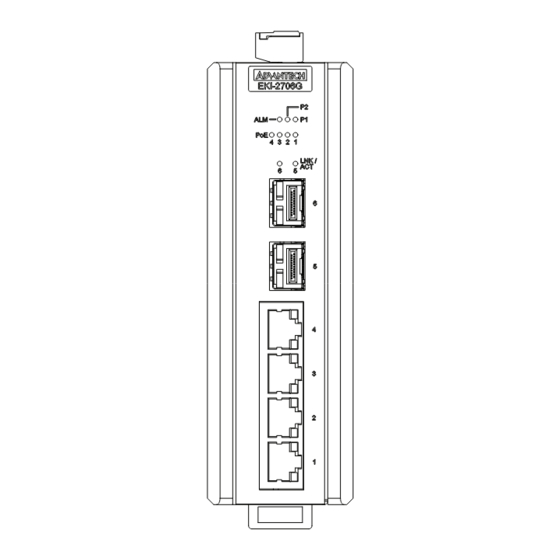

EKI-2706G-2FPI:
- 4 x 10/100/1000BASE-T/TX RJ-45 PoE Ports
- 2 x SFP (mini-GBIC) 100/1000Mbps port
EKI-2706G-2GPI:
- 4 x 10/100/1000BASE-T/TX RJ-45 PoE Ports
- 2 x 10/100/1000BASE-T/TX RJ-45 Ports
- EKI-2706G-2FPI: 4 x RJ-45, 2 x SFP
- EKI-2706G-2GPI: 6 xRJ45
- 120W@24/48VDC
- 70W@12VDC
EKI-2706G Series Startup Manual 1
