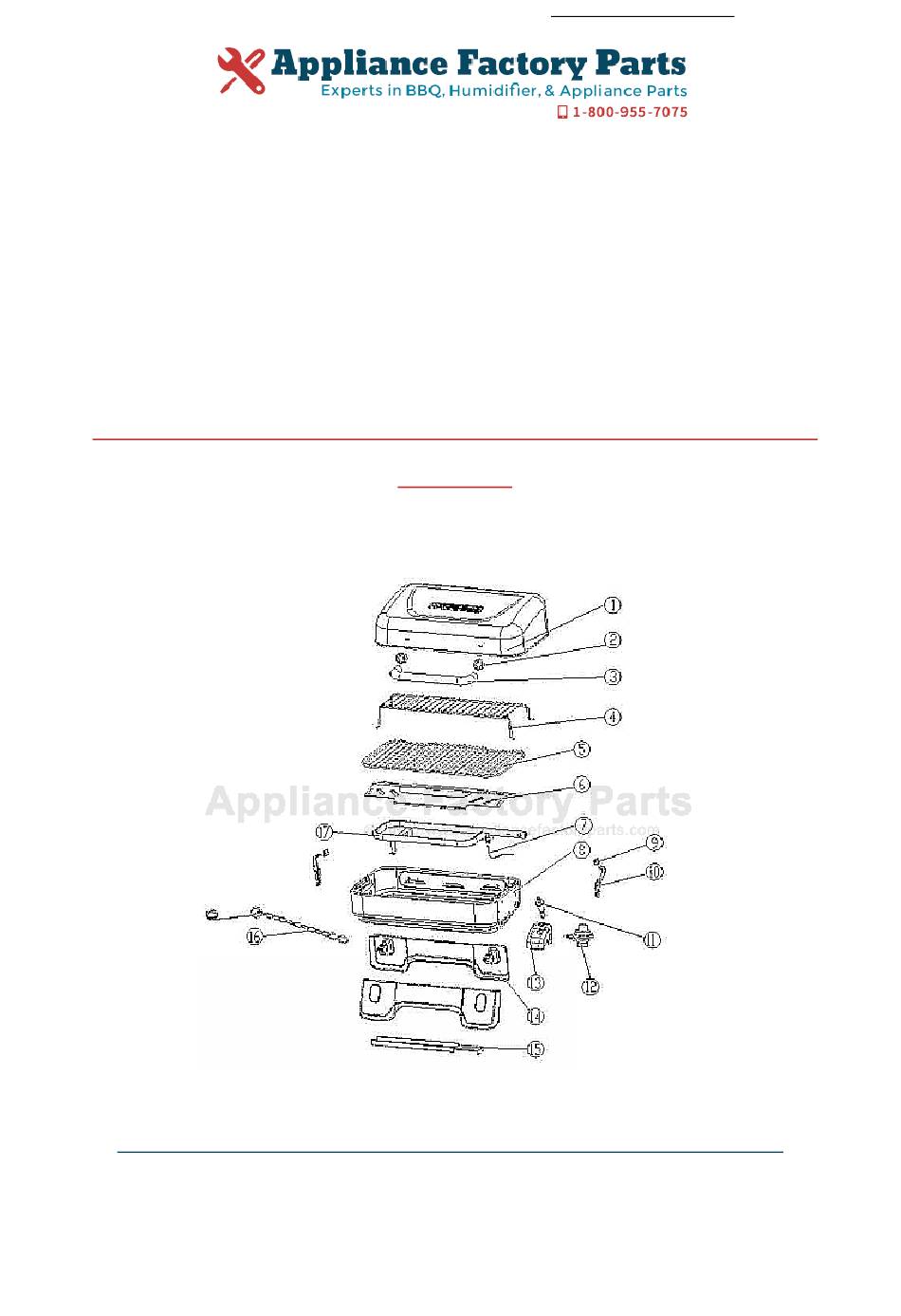

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Perfect Flame TT-1001 Owner's Manual Shop genuine replacement parts for Perfect Flame TT-1001 Find Your Perfect Flame Grill Parts - Select From 45 Models -------- Manual continues below --------...

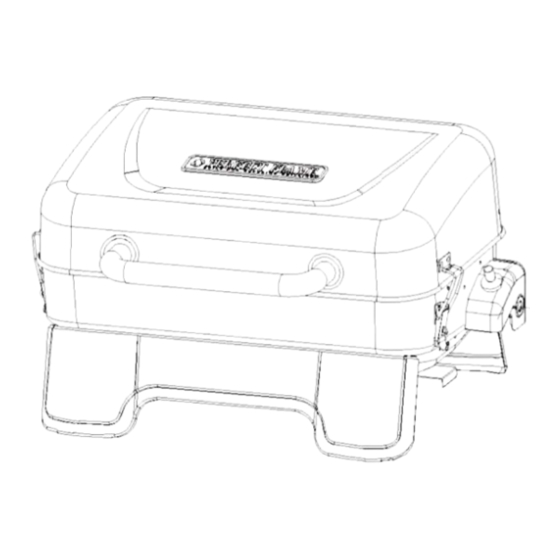

  • Page 2 Portable Gas Grill Item # 274676 Owner’s Manual For Outdoor Use Only ASSEMBLER/INSTALLER: (Tank not included) (Tank not included) Leave these instructions with the consumer. CONSUMER/USER: Read entire manual and keep for future reference. DANGER DANGER 1. Never operate this appliance unattended. 2.
  • Page 3 TABLE OF CONTENTS F o r Yo u r S a f e t y. … … … … … … … … … … … … … … … … … … … … … … … 2 - 4 I l l u s t r a t e d P a r t s L i s t …...
  • Page 4 Safety Warnings and Precautions PLEASE READ THE ENTIRE MANUAL BEFORE OPERATING YOUR PORTABLE GAS GRILL: All installations must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58 or CSA B149.1, propane storage and handling CSA B149.2 The gas canister must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S.
  • Page 5 8. Use only the standard one-pound disposable gas canisters marked PROPANE DOT-39 NRC 228/286 and should be arranged for vertical standing vapour withdrawal inside the unit pillar. 9. Propane canisters should be disconnected when not in use and the gas pressure regulator with hose should be properly stored inside the unit column.
  • Page 6 23. Always light the grill with the lid open. Always turn the grill off after its use. 24. Always use a glove or hot pad when operating or handling a hot grill. (A) DO NOT store tanks under or near the appliance. (B) Never fill tanks more than 80% full.
  • Page 7 ASSEMBLY INSTRUCTIONS Preparation ∞ Read all instructions in this manual. ∞ Open the grill and remove all package and unassembled components from inside. ∞ Make sure the lid is locked close and turn the grill upside down on a level, firm surface. Use the foam packing that the unit was packed in as a cushion to prevent damage to the top.
  • Page 8 Attach Grease Tray (Fig. 2) Locate the Grease tray (15). Slide the Grease tray onto the grease tray slides as shown (Fig. 2). Fig. 2 3. Attach the Lid Handle (Fig. 3) Locate the Lid Handle (3) and Lid handle bases (2), and 2 – M6 x 16 bolts from the hardware bag. Stand the unit on its legs.
  • Page 9 Attach the Regulator Assembly (Fig. 4) Locate the Regulator assembly (12). Thread the Regulator Valve into the stem of the burner until hand-tight. Fig. 4 5. Install a Gas Cylinder – NOT INCLUDED (Fig. 5) Screw the gas cylinder counter-clockwise into the thread underneath the Regulator valve until in place.
  • Page 10 OPERATING THE GRILL WARNING Use only the regulator provided. If a replacement is necessary, call our Customer Service Center. The use of unauthorized parts can create an unsafe condition and environment. Connect Gas Cylinder The propane-gas supply cylinder to be used must be constructed and marked in accordance with the Specifications for LP-Cylinders of the U.S.
  • Page 11 If there is a question on the identity of your unit and of the type of fuel to be used, please look on the data plate. Units are factory equipped for use on only one type of fuel. These units can not be and should not be used on other types of fuels.
  • Page 12 Lighting Procedure CAUTION: If the flame extinguished accidentally during ignition or operation, immediately TURN OFF the control knob. Igniter Lighting System 1. Check all connections for leaks using the “soap water” test as explained on page 9 for “checking for leaks.” 2.
  • Page 13 TROUBLESHOOTING Problem Possible Causes Possible Solutions The burner will not light 1. The igniter electrode may be Clean igniter using the igniter procedure. covered with grease or residue. electrode. 2. The igniter electrode may have a 2. Check the connection loose or disconnected wire.
  • Page 14 AFTER USE SAFETY AND MAINTENANCE WARNING Use caution when lifting and moving the portable grill to avoid injuries. DO NOT store the grill near gasoline or other combustible liquids or where combustible vapors may be present. Keep the area around the grill clear and free of combustible materials and vapors.
  • Page 15 This warranty gives you specific legal rights, and you may have other rights that vary from state to state. Item Name: Portable Gas Grill Model # TT-1001 Item # 274676 Rated BTU: 12,000 BTU/Hr Product Dimension: 25.19” x 16.14” x 12.40”...

This manual is also suitable for:

274676
