Kuryakyn 4351 Installation Manual

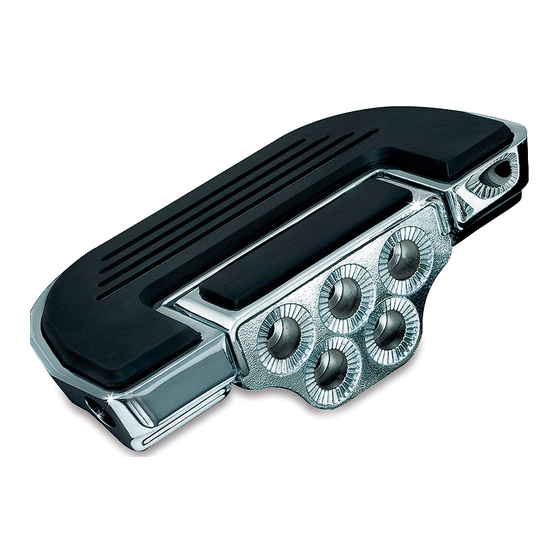

PREMIUM DRIVER AND PASSENGER FLOORBOARDS
Fits: Most motorcycles – Mounting Components Sold Separately
- Installation on Metric Cruisers required model specific Splined Adapters.
- Installation in passenger location on H-D Softail models requires model
specific Floorboard Mount Kit.
- Installation on other H-D models in place of male mount footpegs
requires Non-Pivoting Male Mounts, P/N 8883.
- When installed with Kuryakyn Retractable Passenger Pegs, P/N 4352, no
additional adapters or mounting kits are required.
PARTS INCLUDED
2 Floorboard Assemblies
2 5/16"-18 x 1" Socket Head Cap Screws
2 Flat Washers
1 Installation Instructions
Please read and understand entire instructions before starting installation.
THANK YOU FOR CHOOSING K
IN ORDER TO PROTECT YOU AND OTHERS FROM POSSIBLE INJURY AND/OR
PROPERTY DAMAGE OR LOSS, PLEASE PAY CLOSE ATTENTION TO ALL
INSTRUCTIONS, WARNINGS, CAUTIONS AND ATTENTION NOTES REGARDING
THE USE AND CARE OF THIS PRODUCT.
ATTENTION!
This indication alerts you to the fact that ignoring the contents
described herein may negatively affect product performance and
functionality.
TOOLS SUGGESTED
Set of Hex Wrenches
STRICTLY OBSERVE THE FOLLOWING GUIDELINES IN ORDER TO USE THE
PRODUCT PROPERLY AND AVOID POTENTIALLY DANGEROUS ACCIDENTS.
STEP 1
Read and understand all steps in the instructions before starting the
installation. Park the motorcycle on a hard, level surface and turn off the
ignition.
ATTENTION!
A factory service manual may be helpful in performing this installation.
Do not attempt to perform this installation if you are not confident in
your ability to complete all steps in the procedure; consult a trained
technician.
ATTENTION!
Placing these floorboards on mounts intended for footpegs may
prohibit them from folding up in the same manner as the stock peg.
Also, if the board is positioned so it will fold up as stock, the trailing
end of the board may be in a position that could limit cornering
clearance.
-cont.-
4351-23MC-0511
ϋ
RYAKYN!
INSTALLATION
4351
CUSTOMER SERVICE
877.370.3604 (toll free)
INSTALLATION QUESTIONS
techsupport@kuryakyn.com
or call 715.247.2983
LIMITED WARRANTY
Küryakyn warrants that any Küryakyn products
sold hereunder, shall be free of defects in
materials and workmanship for a period of one
(1) year from the date of purchase by the
consumer excepting the following provisions:
● Küryakyn shall have no obligation in the event
the customer is unable to provide a receipt
showing the date the customer purchased the
●The product must be properly installed,
maintained and operated under
normal conditions.
●Küryakyn makes no warranty, expressed or
implied, with respect to any gold plated
●Küryakyn shall not be liable for any
consequential and incidental damages, including
labor and paint, resulting from failure of a
Küryakyn product, failure to deliver, delay in
delivery, delivery in nonconforming condition, or
for any breech of contract or duty between
Küryakyn and a customer.
●Küryakyn products are often intended for use in
specific applications. Küryakyn makes no
warranty if a Küryakyn product is used in
applications other than intended.
●Küryakyn electrical products are warranted for
one (1) year from the date of purchase by the
consumer. L.E.D.'S contained in components of
Küryakyn products will be warranted for defects
in materials and workmanship for 3 years from
the date of purchase where as all other
components shall be warranted for one(1) year.
This includes, but is not limited to; control
modules, wiring, chrome & other components.
●Küryakyn makes no warranty of any kind in
regard to other manufacturer¹s products
distributed by Küryakyn. Küryakyn will pass on
all warranties made by the manufacturer and
where possible, will expedite the claim on behalf
of the customer, but ultimately, responsibility for
disposition of the warranty claim lies
with the manufacturer.
ABOUT OUR CATALOG
For purchasing Küryakyn® products, you
can receive a complete catalog free of charge.
Send the Proof-of-Purchase below with
your address to: Küryakyn, P.O. Box 339,
Somerset, WI 54025.
Please indicate either Accessories Catalog for
Harley-Davidson® or GL & Metric Cruisers.
Be sure to ask your local dealer about other
Küryakyn® products, the motorcycle parts and
accessories designed for riders by riders.
©2005 Küryakyn USA® All Rights
reserved.
product(s).
products.
