l I c e n S e P l at e m o u n t e d f l a g

PartS Included

1 License Plate Flag Mount
1 Flag Mount Filler Disk
1 Flag Pole Assembly
1 Spring
1 Threaded Flag Pole Tip
1 American Flag
2 10-32 x 5/8" Socket Head Cap Screws
4 1/4-20 x 3/4" Button Socket Cap Screws
4 1/4" Flat Washers
4 1/4" Nylon Locking Nuts
1 Installation Instructions
Please read and understand entire instructions before starting installation.
thank you for chooSIng küryakyn!
In order to Protect you and otherS from PoSSIble Injury
and/or ProPerty damage or loSS, PleaSe Pay cloSe attentIon
to all InStructIonS, warnIngS, cautIonS and attentIon noteS
regardIng the uSe and care of thIS Product.
WARNING! THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE
CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR
SERIOUS INJURY.
CAUTION! This indication alerts you to the fact that ignoring the contents described herein
can result in potential injury or material damage.
ATTENTION!
This indication alerts you to the fact that ignoring the contents described herein
may negatively affect product performance and functionality.

toolS SuggeSted

Set of Hex Wrenches, Combination Wrenches
StrIctly obServe the followIng guIdelIneS In order to uSe the
Product ProPerly and avoId PotentIally dangerouS accIdentS.

Procedure

SteP 1 Read and understand all steps in the
instructions before starting the installation. Park the
motorcycle on a hard, level surface; turn off the
ignition and allow the engine to cool.
SteP 2 As shown in PIC 1, hold the flag mount
filler disk in place on the flag pole assembly.
SteP 3 As shown in PIC 2, attach the assembly
from Step 2 to the chrome license plate flag mount
using the 10-32 x 5/8" Socket Head Cap Screws.
Tighten the screws.
4261-11MC-0610

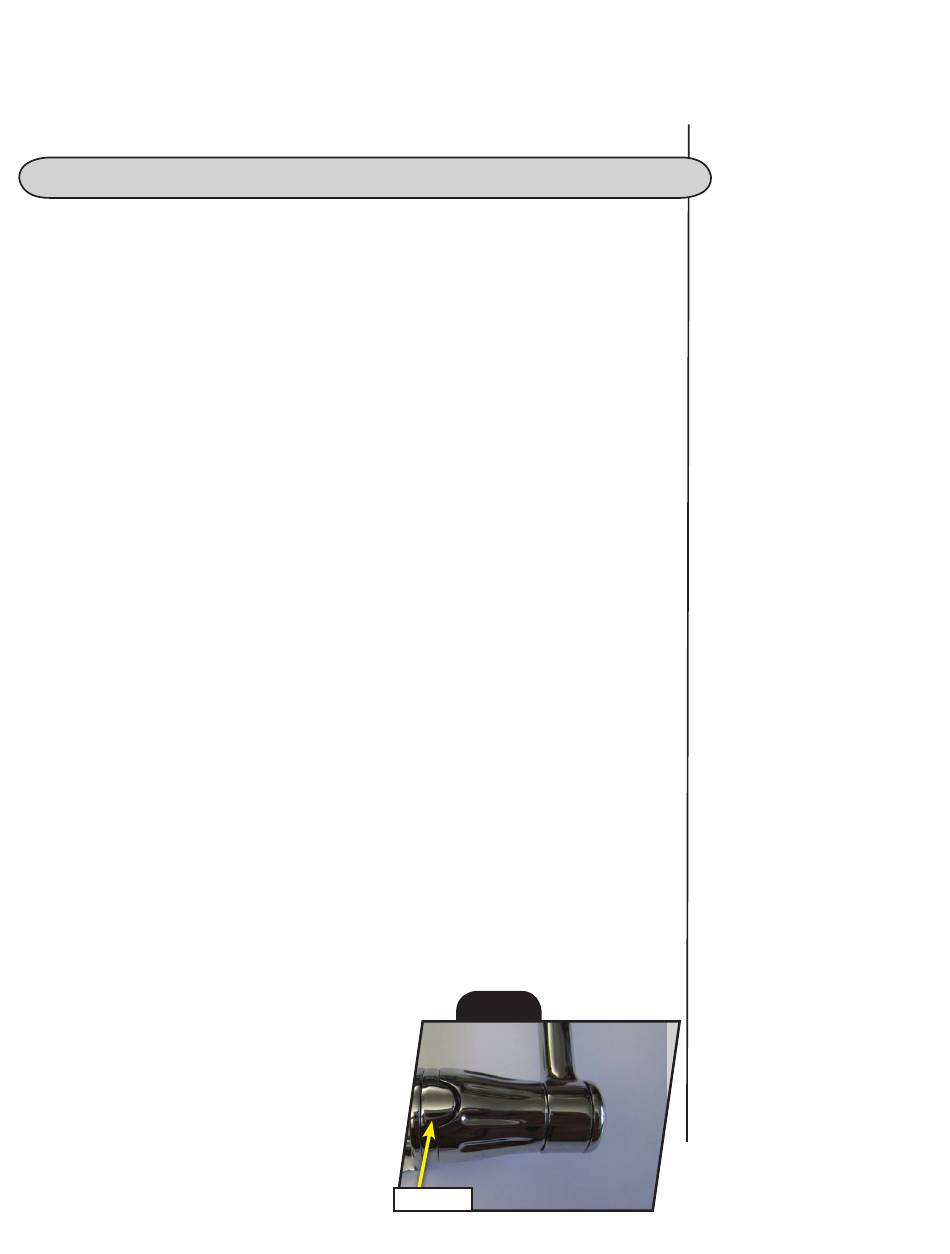

FILLER DISk
4 2 6 1
PIC. 1
-cont.-
