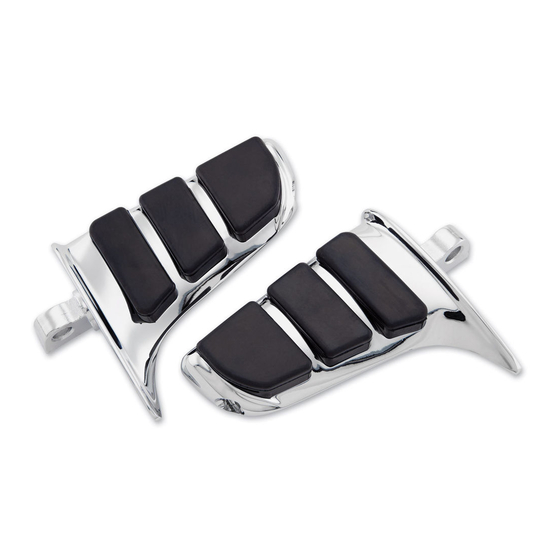

Kuryakyn ISO-SweptWing 4463 Installation Instructions

I s o - s w e P t w I n g P e g s
4 4 6 3 f Its : Man y M etrI c Mode ls but re qu Ire s Model- s PecI fIc ada Pter, sold
s ePa r ately
4 4 6 4 fIts : an y Model w I th h-d s t yl e M al e M ount foot P e gs.
Parts Included
1 ISO-Sweptwing Peg Assembly (pr)
1 Installation Instructions
Please read and understand entire instructions before starting installation.
thank you for choosIng küryakyn!
Please note
It is the installers' responsibility to make sure all fasteners (including pre-assembled) are
tightened before operation of motorcycle. Küryakyn will not warranty components that are
lost due to improper installation. Periodic maintenance may be required.
WARNING! IMPROPER INSTALLATION OR MISUSE Of THIS PRODUCT COULD RESULT
IN SERIOUS PERSONAL INjURY OR DEATH.
MetrIc note You can purchase the appropriate adapters from the main Metric footpeg
Web Page at www.kuryakyn.com. If any additional mounting hardware is
necessary, it will be included with the adapters.
tools suggested
Set of hex wrenches, set of combination wrenches.
Procedure
steP 1 Remove the existing footpeg; save the mounting hardware for reuse.
steP 2 (Metric only) Place the adapter that you have purchased separately into the end of
the ISO-Sweptwing peg and just finger tighten the fastener in PIC.1.
steP 3 Install the left and right ISO-Sweptwing Pegs in the footpeg mounts on the
motorcycle. Leave the footpeg adapter fastener loose for now.
note
The footpeg mount will positively engage the peg when tightened; determine the
desired position before fully tightening.
steP 3 Adjust the angle of the footpeg on the male mount then secure with the footpeg
fastener.
steP 4 Check the angle for comfort; re-adjust if necessary. Repeat for the opposite side.
-cont.-
