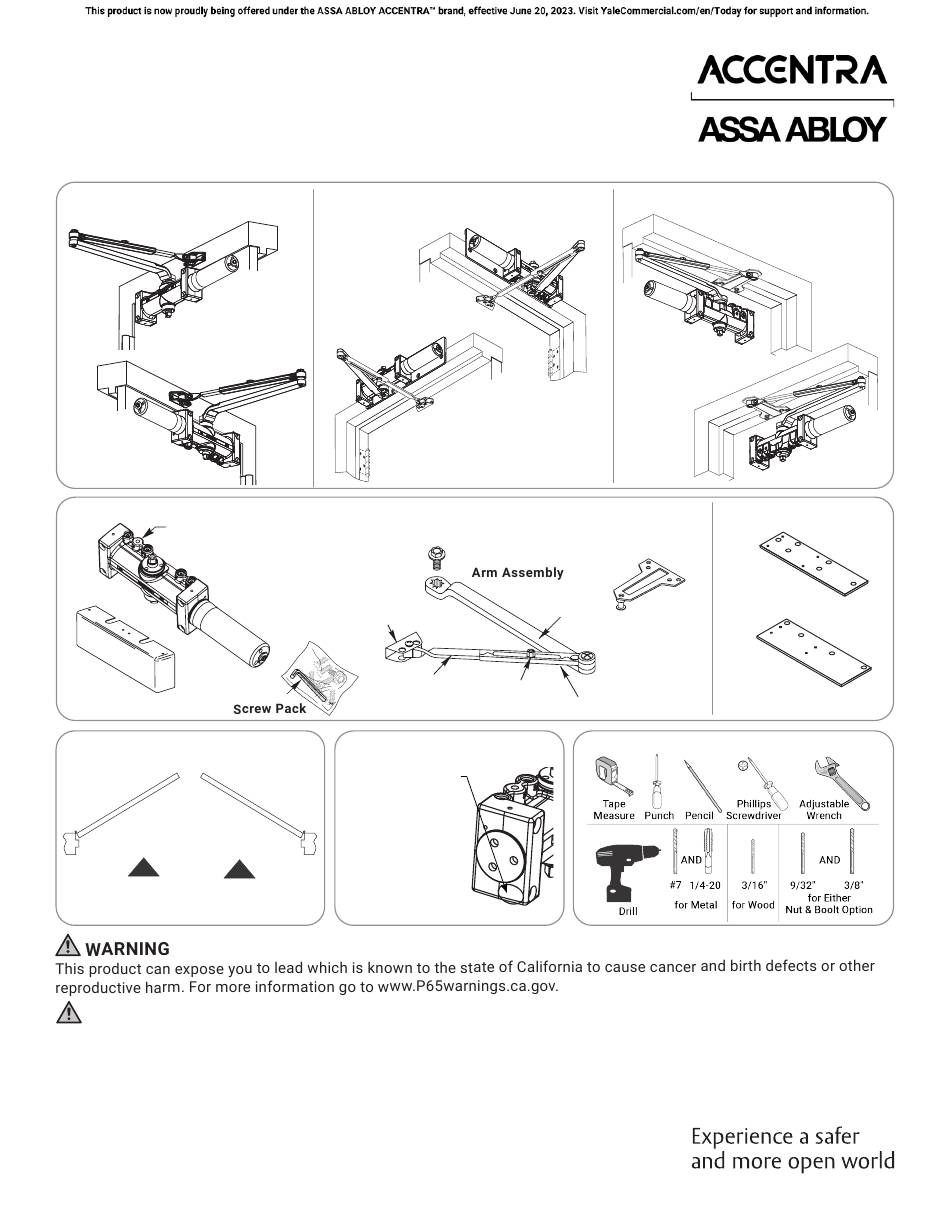

4400 Series Door Closer
Models 4400, TJ4400, TJL4400 and PA4400
Regular Arm, Top Jamb, or Parallel Arm, Non-Hold Open
Installation Instructions
Regular Arm
See page 3.
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Included Components (See page 2 for mounting hardware)
DL Option
(5 Valves)
Closer
Cover
Standard Plastic
1/8" Hex Wrench
or Optional Metal
To Determine Hand of Door:
Right Hand
Reverse
LEFT RIGHT
HAND HAND
DOOR DOOR
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated open-
ing, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
855-557-5078 x 2 • www.accentra-assaabloy.com
Copyright © 2001, 2012, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9344-1201-010 Rev 3 05/24
Top Jamb Mount
See page 4.
Right Hand Door - RH
Left Hand Reverse - LHR
Main Arm
Pinion Screw
Regular Arm/
Top Jamb Screw
Connecting Rod
To Identify Model:
Older models may
Left Hand
be stamped "1-6",
Reverse
"1-4" or "2-6". They
can be replaced
with a newer "1-6"
model which has
no stamp.
Standard 4400 = 4 valves
Delayed Action 4400DL = 5 valves
Left Hand Door - LH
Right Hand Reverse - RHR
Main Arm
289 Parallel Arm
(Used with PA4400
Parallel Arm
Installation Only)
Forearm
Screw
Arm Slide
Tools Needed
Parallel Arm
See page 5.
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Components
486
Drop Plate
Soffit Plate
488
Drop Plate
