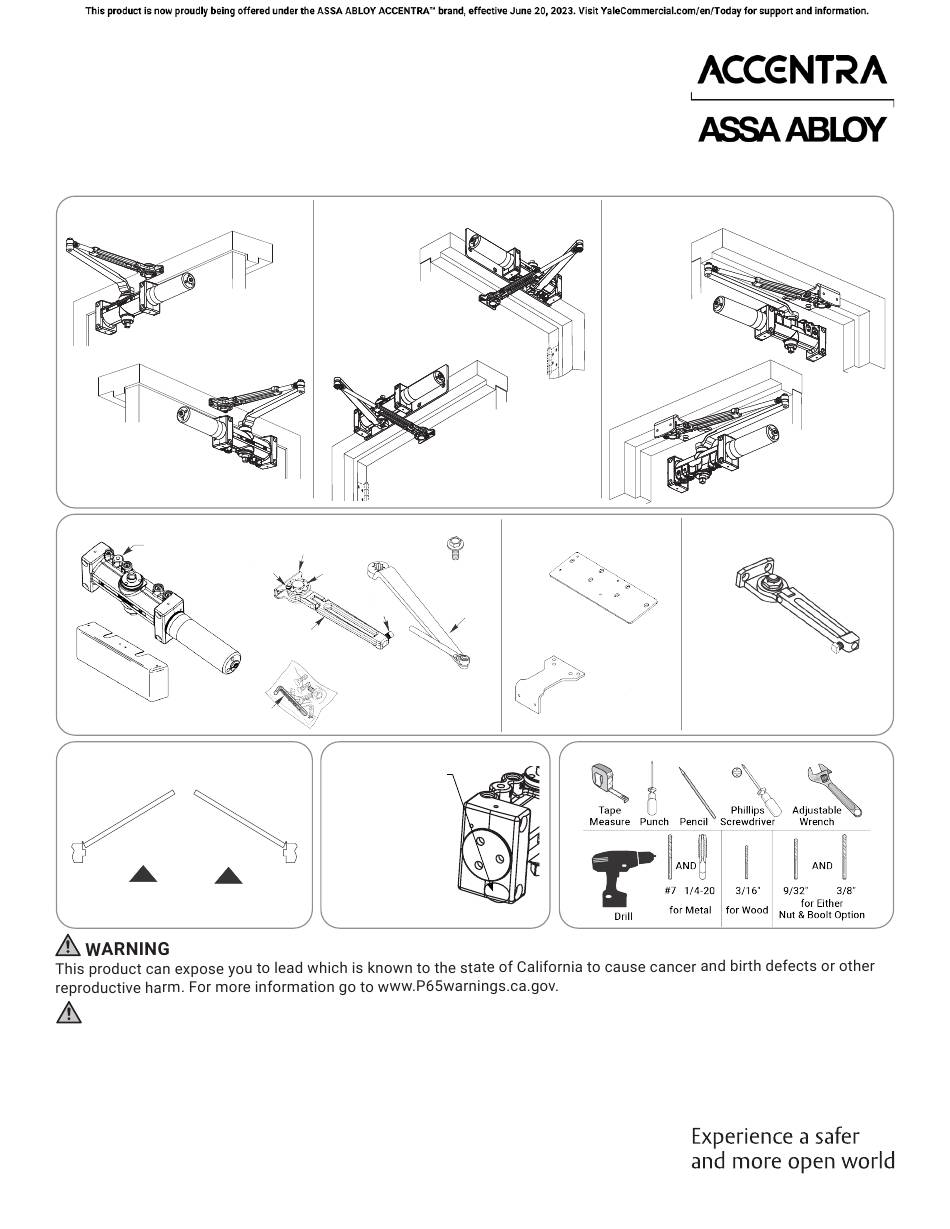

Assa Abloy ACCENTRA 4400 Series Installation Instructions Manual

4400 Series Door Closer
Models 4410, TJ4410, TJL4410 and PA4410
Regular, Top Jamb, or Parallel Arms, Hold Open
Installation Instructions
Regular Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Included Components (See page 2 for mounting hardware)
DL Option
(5 valves)
Closer
Cover
1/8" Hex
Standard Plastic
Wrench
or Optional Metal
To Determine Hand of Door:
Right Hand
Reverse
LEFT RIGHT
HAND HAND
DOOR DOOR
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated open-
ing, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
855-557-5078 x 2 • www.accentra-assaabloy.com
Copyright © 2019, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9344-3204-010 Rev 2 05/24
Top Jamb Mount
Right Hand Door - RH
Left Hand Reverse - LHR
Shoe
Dial
Screw Dial
Pinion Screw
Set
Screw
Hold Open
Arm
Arm
Assembly
Screw
Pack
To Identify the Model:
Older models may
be stamped "1-6",
Left Hand "1-4" or "2-6". They
Reverse
can be replaced
with a newer "1-6"
model which has
no stamp.
Standard 4400 = 4 valves
Delayed Action 4400DL = 5 valves
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Plates
Main Arm
486 or 488
Main
Closer
Arm
Backplate
Soffit Adapter
588 Soffit Plate
(Used with Parallel
Arm Closers Only)
Tools Needed
Parallel Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Legacy Friction
Hold Open Arm
NOTE:
Legacy FHO arm has
Plate
installation orientation.
See 80-9300-0003-000
for details.
