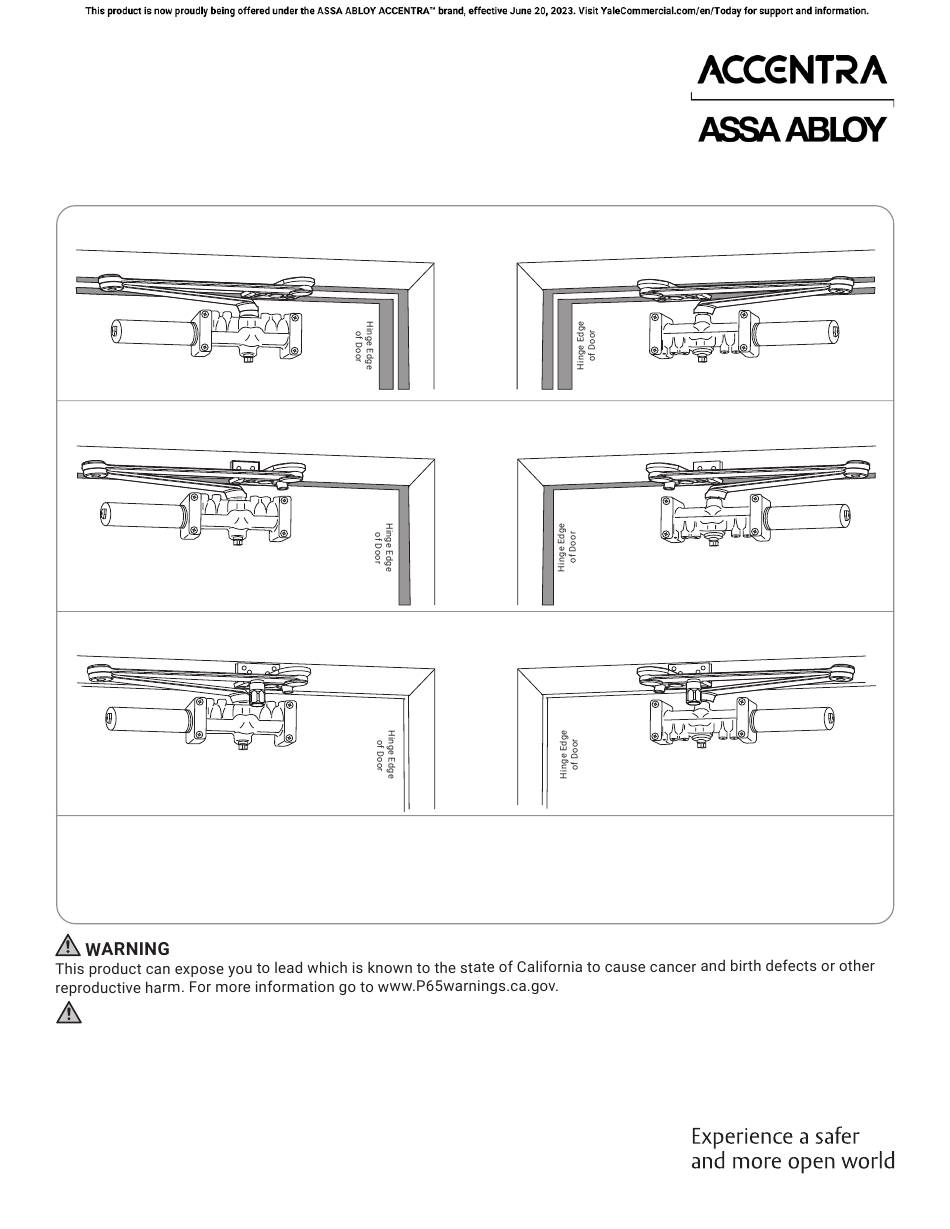

Assa Abloy ACCENTRA 4400 Series Installation Instructions Manual

4400 Series Door Closer
Models PR4400, PR4410, 4420 and 4420T
Parallel Rigid Arm & Holder Stop, Non-Hold Open or Hold Open
Installation Instructions
Right Hand Door - RH
Left Hand Reverse - LHR
Right Hand Door - RH
Left Hand Reverse - LHR
Closer mounts on opposite to hinge (push) side of door. 4420T Holder Stop arm with Thumbturn Hold Open illustrated.
Right Hand Door - RH
Left Hand Reverse - LHR
NOTE: For special applications, a separate door and frame preparation template is packed with these instructions. Use this
instruction sheet for installation sequence and closer adjustments only.
Additional Closer Options:
‒ "DL" indicates Delayed Closer Action.
‒ "T" indicates Thumbturn actuated Hold Open control.
‒ Hold Open function components are handed.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated open-
ing, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
855-557-5078 x 2 • www.accentra-assaabloy.com
Copyright © 2003, 2011, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9344-2205-010 Rev 3 05/24
Standard Frame
Closer mounts on opposite of hinge (push) side of door.
PR4400 Parallel Rigid Non-Hold Open Arm illustrated.
See pages 4 and 5.
Narrow Frame
Closer mounts on opposite of hinge (push) side of door. 4420 Holder Stop arm illustrated.
6890 and 6891 accessories required for this application (supplied separately)
See pages 4 and 5.
Flush Partition
2019L accessory required for this application (supplied separately).
See pages 4 and 5.
Optional Accessories:
‒ 488 Drop Plate
‒ 293L, 890, and 891 Soffit Plate Accessories
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
