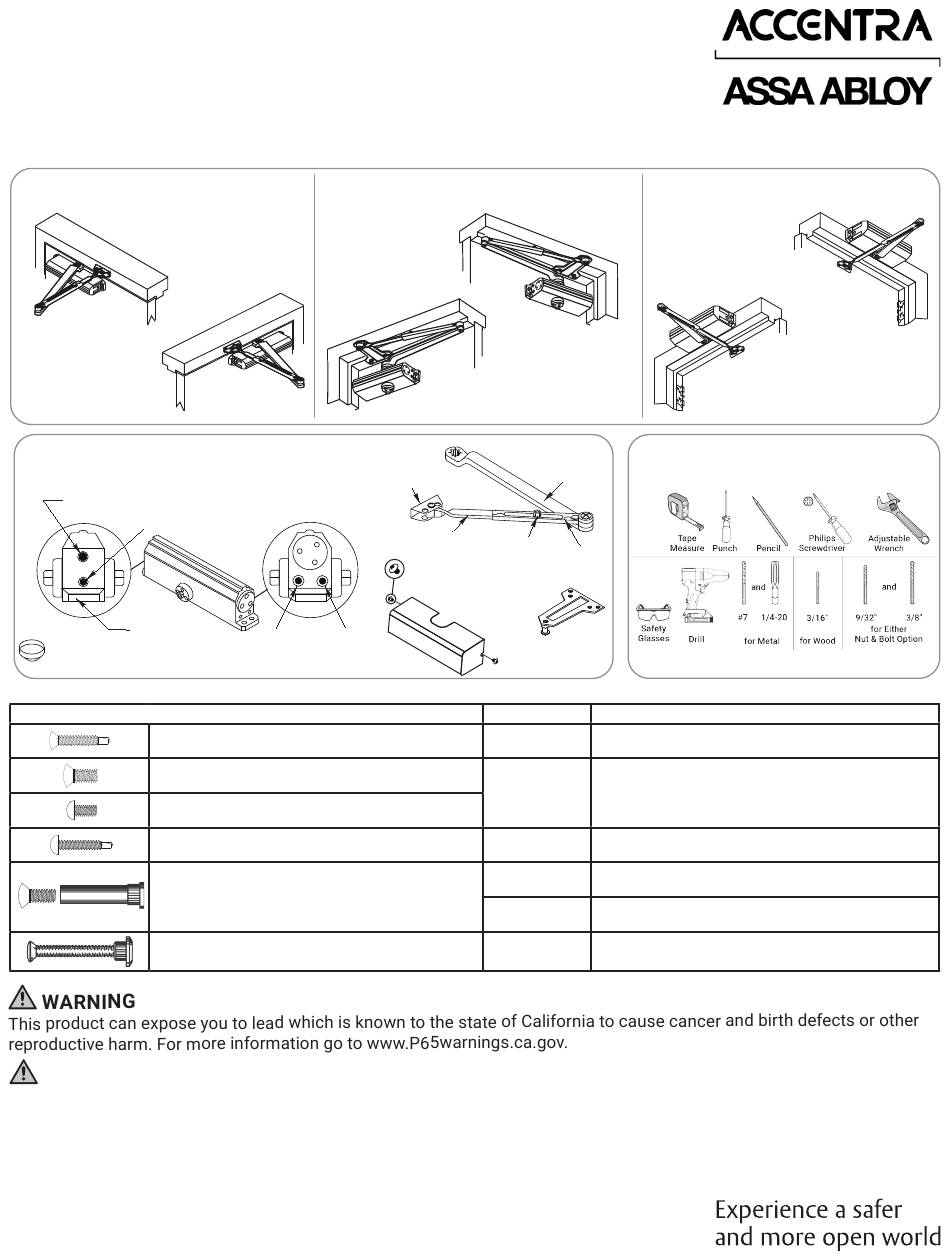

1100 Series Door Closer
Model 1111
Tri-Pack, Hold Open
Installation Instructions
Regular Arm
See page 2
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Components
Spring Power Adjustment
1101 Series Only
"BC" Valve
4
Pinion
Closer Size
Cap
Stamp
Supplied Hardware
Mounting Hardware
Closer, PA Bracket: 1/4-14 x 1-1/2 Oval Flat Head
Closer, PA Bracket: 1/4-20 x 3/4 Oval Flat Head
Arm Shoe to Jamb or Door: 1/4-20 x 5/8 Round
Arm Shoe to Jamb or Door: 1/4-14 x 1-1/2 Round
Closer: Sleeve Nut and Bolt (SNB) (optional)
with 1/4-20 x 3/4 Oval Flat Head Mach. Screw
Closer: Thru Bolt and Grommet Nut (TBGN)
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated open-
ing, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
855-557-5078 x 2 • www.accentra-assaabloy.com
Copyright © 2001, 2012, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9311-0020-010 Rev 3 05/24
Right Hand Door - RH
Left Hand Reverse - LHR
Regular Arm/
Top Jamb
Closer
"S" Valve
"L" Valve
Self Drilling Screw
Mach. Screw
Head Mach. Screw,
Head Self Drilling Screw
(recommended)
(optional)
Parallel Arm
See page 3
Left Hand Door - LH
Right Hand Reverse - RHR
Arm Assembly
Main
Arm
Shoe
Connecting
Forearm
Rod
Screw
50P Cover
(Optional)
C o
289A Soffit Plate
v e
r
(Parallel Arm
Installation Only)
Door or Frame
Wood/Metal
Metal
Wood/Metal
Hollow Metal
Aluminum or
Wood
All
Top Jamb Mount
See page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Tools Needed:
Arm
Slide
Drill
3/16" (4.8mm) for wood
Drill #7 (.201 dia. or 5.1mm)
Tap 1/4-20
3/16" (4.8mm) for wood
9/32" (7.0mm) thru
3/8" (9.5mm) door face opposite to closer
3/8" (9.5mm) thru
9/32" (7.0mm) thru 3/8" (9.5mm) dia. x 3/8" (9.5mm)
deep, door face opposite to closer
Left Hand Door - LH
Right Hand Reverse - RHR
