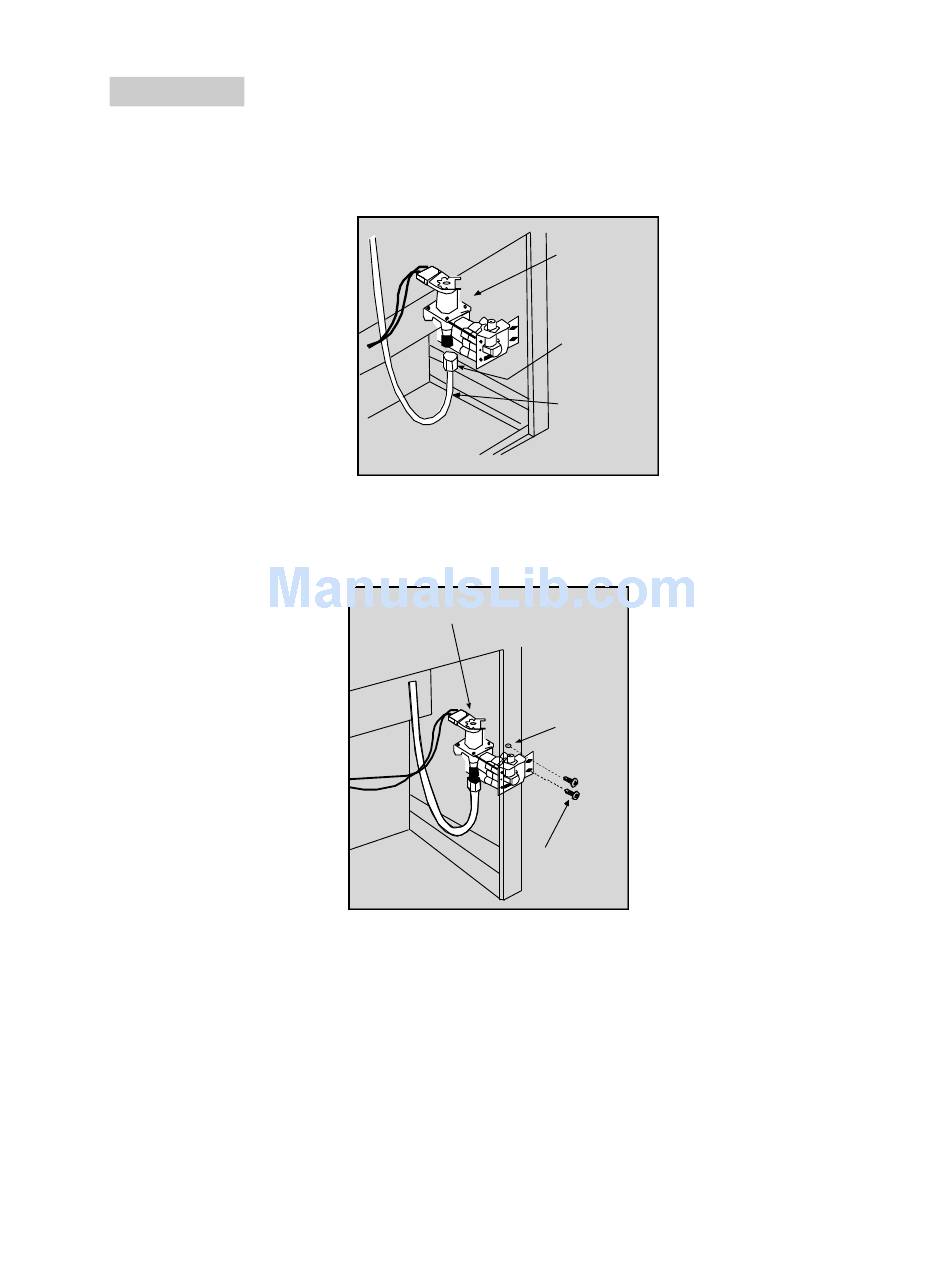

4. Insert the other end of the plastic water tubing into the bottom of the
water valve. Tighten the plastic nut, while pushing the tube inside the
valve. (See fig # 10)
(Figure 10)
5. Using a power drill with a Phillips-head bit, drive in the 2 supplied self
tapping screws to attach the water valve to the right side of the
refrigerator. (See fig. # 11)
(Figure 11)
7
Water Valve
Plastic Nut
Plastic Water
Tubing (3)
To Icemaker
Fill Tube
Water Valve (10)
Factory
Punched
Holes
Screws (4)
(10)
