4. Now push the water supply line into the water valve inlet as far as it will
go. Slide the ferrule (sleeve) into the valve inlet and finger tighten the
compression nut onto valve. Tighten another half-turn with a wrench. Be
careful not to over tighten. Now, screw rear access panel that covers
compressor compartment back in place. (See fig. # 12)

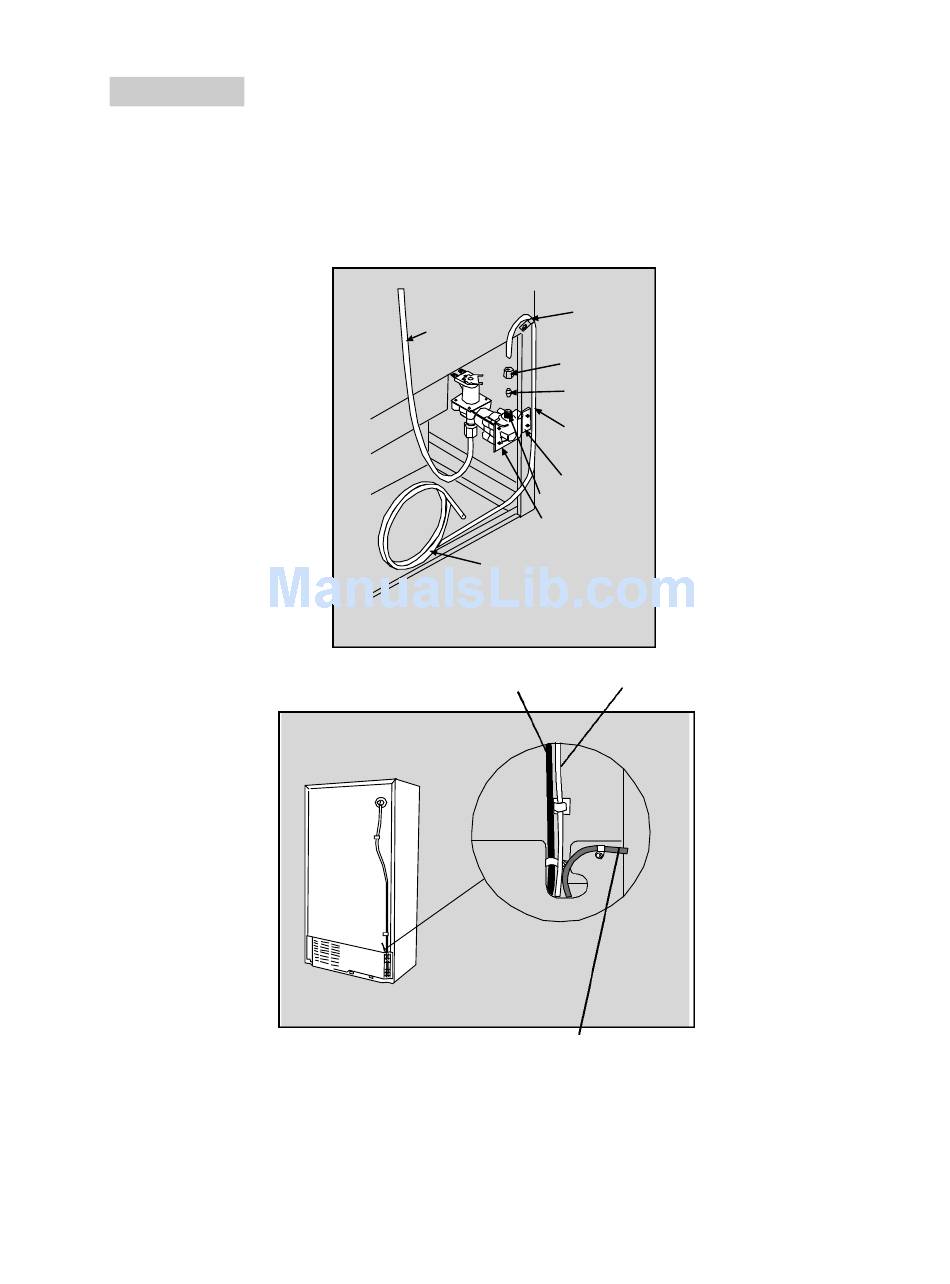

(Figure 12)
5. With the supplied steel clamp and hex head screw, secure the water
supply line to the rear panel of the refrigerator.
9
Plastic Water
Steel
Tubing to Ice Maker
Clamp
Fill Tube
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
Water Line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper Water Line
from Household Water Supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Power cord
Coper water line
Plastic water tubing
