Zennio DALI BOX Broadcast 4CH v2 Manual

KNX - DALI Broadcast Interface for up to 4 channels
ZDIDLB4V2
FEATURES
•
Control of 4 channels with up to 64 DALI ballasts per channel
•
Single Master DALI-2 Controller
•
Compatibility with color ballasts (DT8)
•
Supports KNX Data Secure
•
Ballast replacement allowed with automatic detection
•
Error detection and monitoring (except multiaddress DALI ballasts)
•
Burn-in, Stand-by and Auto-off functionality for each channel
•
Optional manual dimming control
•
External 110-240 VAC 50/60 Hz power supply
•
Total data saving on KNX bus failure
•
Integrated KNX BCU (TP1-256)
•
Dimensions 67 x 90 x 79 mm (4.5 DIN units)
•
DIN rail mounting according to IEC 60715 TH35, with fixing clamp
•
DALI Standard certified according to IEC 62386
•
Conformity with the CE, UKCA, RCM directives (marks on the right
side)
1. DALI channel status LED
5. DALI channel output
Programming/Test button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe
mode. If this button is held for more than 3 seconds, the device enters the test mode. In order to perform a KNX Secure factory reset, while the device is
in safe mode, press the button for 10 seconds until the programming LED changes its state.
Programming/Test LED: programming mode indicator (red). When the device enters the safe mode, it blinks (red) every half second. The test mode is
indicated by the green color. During the start-up (reset or after KNX bus failure) and if the device is not in safe mode, it emits a red flash.
GENERAL SPECIFICATIONS
CONCEPT
Type of device
Voltage (typical)
Voltage range
KNX supply
Maximum
consumption
Connection type
Voltage
External power
supply Maximum consumption
Operation temperature
Storage temperature
Operation humidity
Storage humidity
Complementary characteristics
Protection class / Overvoltage category
Operation type
Device action type
Electrical stress period
Degree of protection
Installation
Minimum clearances
Response on KNX bus failure
Response on KNX bus restart
Operation indicator
Weight
PCB CTI index
Housing material
¹ Maximum consumption in the worst-case scenario (KNX Fan-In model).
© Zennio Avance y Tecnología S.L.
2. DALI channel control button
6. External supply LED
DESCRIPTION
Electric operation control device
29 VDC SELV
21-31 VDC
Voltage
29 VDC (typical)
24 VDC¹
Typical TP1 bus connector for 0.8 mm Ø rigid cable
110-240 VAC 50/60 Hz PF=0.5
175 mA @ 110 VAC / 100 mA @ 230 VAC
-5 .. +45 °C
-20 .. +55 °C
5 .. 95%
5 .. 95%
Class B
II / III (4200 V)
Continuous operation
Type 1
Long
IP20, clean environment
Independent device to be mounted inside electrical panels with DIN rail (IEC
60715)
Not required
Data saving according to parameterization
Data recovery according to parameterization
The programming LED indicates programming mode (red) and test mode
(green). Each output LED indicates its status (fixed = active output; flashing
= error in the output). Power supply LED indicates the presence of supply
voltage (green).
221 g
175 V
PC FR V0 halogen free
Edition 1
DALI BOX Broadcast 4CH v2
1 2
6

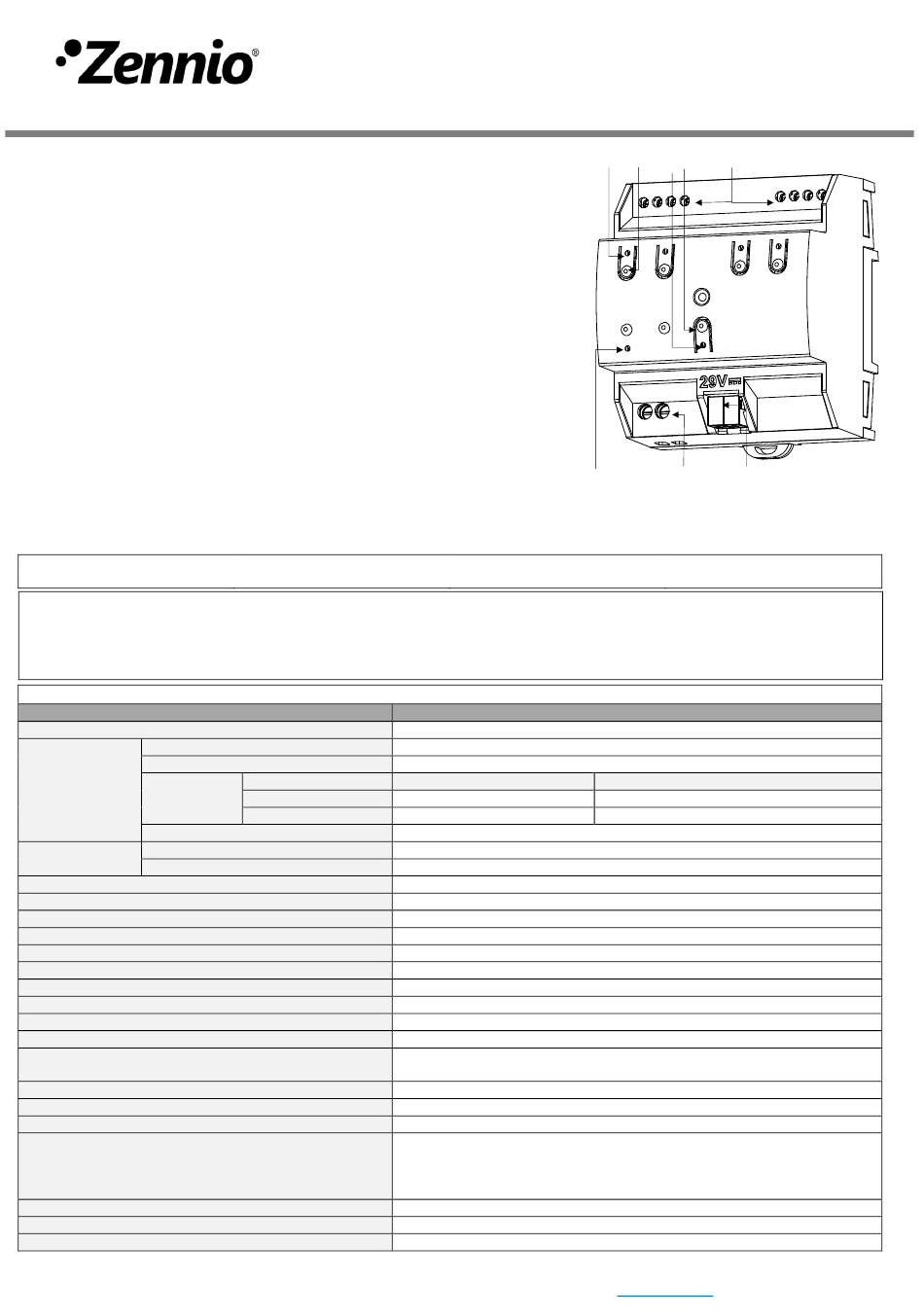

Figure 1: DALI BOX Broadcast 4CH v2
3. Programming/Test LED
7. External power supply
mA
3.3
10
Further information www.zennio.com
TECHNICAL DOCUMENTATION
3 4 5
8
7
4. Programming/Test button
8. KNX connector
mW
95.7
240
Page 1/2
