Kramer VP-427X Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VP-427X 4K HDBT/HDMI Receiver Scaler
1 Bracket set

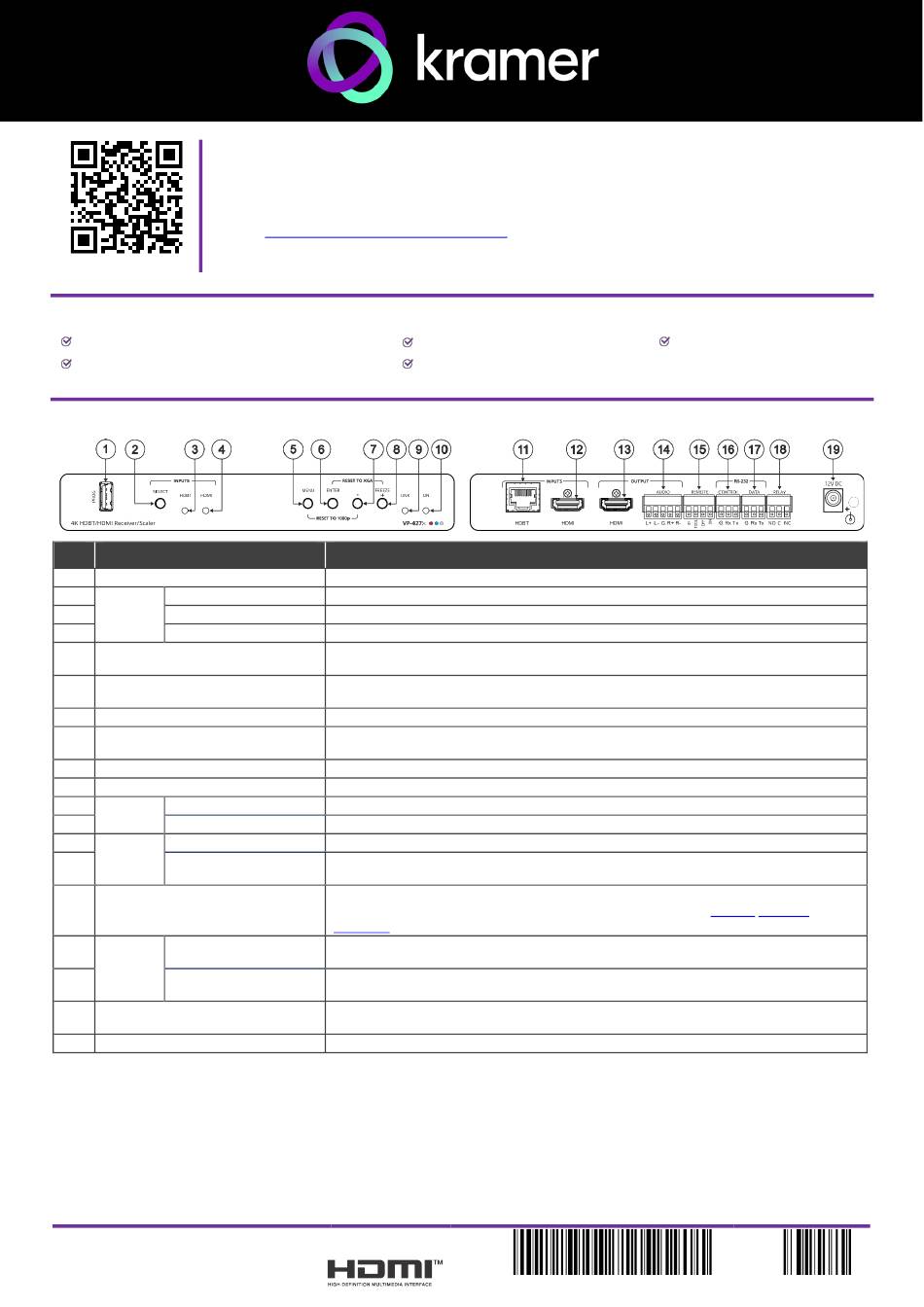

Step 2: Get to know your VP-427X
# Feature
1 PROG USB Connector
2 INPUTS SELECT Button
3 HDBT LED
4 HDMI LED
5 MENU Button
6 ENTER Button
–
7
8 FREEZE/+ Button
9 LINK LED
10 ON LED
11 INPUTS HDBT RJ-45 Connector
12 HDMI Connector
13 OUTPUT HDMI Connector
14 AUDIO 5-pin Terminal
Block Connector
15 REMOTE Contact-Closure 4-pin
Terminal Block Connector
16 RS-232 CONTROL 3-pin Terminal
Block Connector
17 DATA 3-pin Terminal
Block Connector
18 RELAY 3-pin Terminal Block
Connector
19 12V DC Connector
VP-427X Quick Start
VP-427X Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VP-427X
upgrades are available.
Function
Connect to a USB stick to perform firmware upgrades.
Press to select the input (HDBT or HDMI).
Lights blue when the HDBT input is selected.
Lights blue when the HDMI input is selected.
Press to enter/exit the on-screen display (OSD) menu. Press together with the – button to reset
the output to 1080p resolution.
In OSD, press to choose the highlighted menu item. Press together with the FREEZE/+ button
to reset the output to XGA resolution (1024x768).
In OSD, press to move back through menus or decrement parameter values.
In OSD, press to move forward through menus or increment parameter values. When not in
OSD, press to freeze the display.
Lights blue when a link is established with the transmitter.
Lights green when device is powered.
Connect to a transmitter (for example, the Kramer TP-580T).
Connect to an HDMI source.
Connect to an HDMI acceptor.
Connect to a balanced stereo audio acceptor.
Connect to contact closure switches, an occupancy sensor and/or toggle switches (contact
between the desired pin and GND pin), to turn display on or off. See
VP-427X
.
Connect to a serial controller or PC.
Connect to a serial data
Relay contact pins: normally open (NO), normally closed NC and common (C). Connect to a
device to be controlled by a relay (for example, a motorized projection screen).
Connect to the supplied power adapter.
VP-427X for the first time.
to download the latest user manual and check if firmware
1 Power adapter and cord
4 Rubber feet
or acceptor.
SOURCE
P/N: 2 9 0 0 - 3 0 1 4 3 1 QS
1 Quick start guide
Step 6: Operate
Rev: 4
